Compass Calibration Zones

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

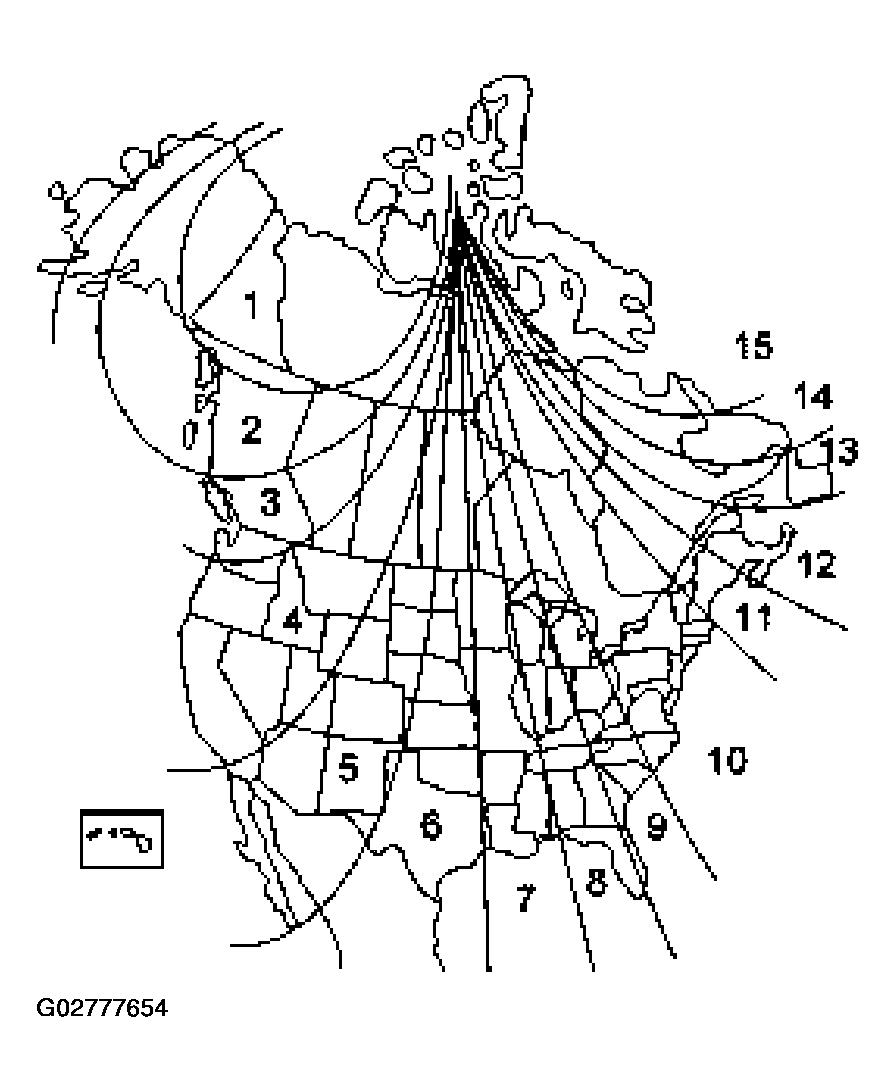

Fig 1: Identifying Compass Calibration Zones
G02777654Courtesy of FORD MOTOR CO.
  1. The zone setting is factory set to Zone 8. Check the Compass Calibration Zone map to verify the correct compass zone setting for your geographic location.
  2. Gently press both buttons for 3 to 4 seconds until ZONE is displayed.
  3. Release the switches. Zone and the current zone setting will be displayed.
  4. Press either switch to cycle through all possible zone settings. Stop cycling when the correct zone setting for your location is displayed.
  5. Release the switch to exit the zone setting mode. After 5 seconds of no button activity, the module will store the current zone and leave the mode.
