Pinpoint Test U: The 4X4 High/Low Range Indicator Is Never/Always On-Manual Shift

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

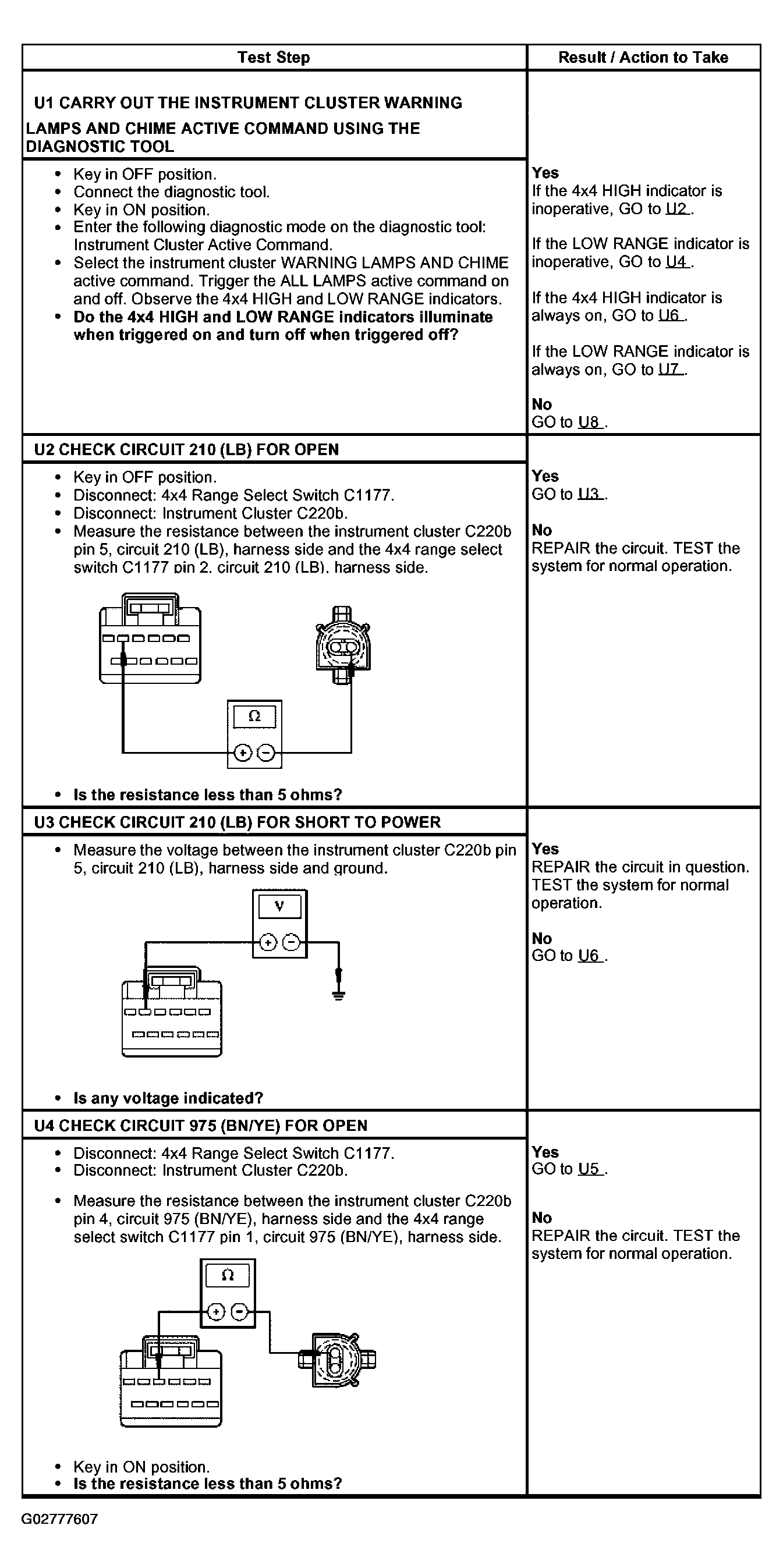

Fig 1: Pinpoint Test U 4X4 High/Low Range Indicator Is Never/Always On (U1-U4)
G02777607Courtesy of FORD MOTOR CO.
Fig 2: Pinpoint Test U 4X4 High/Low Range Indicator Is Never/Always On (U5-U8)
G02777608Courtesy of FORD MOTOR CO.
