Pinpoint Test L: The Abs Warning Indicator Is Never/Always On

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
Fig 1: Pinpoint Test L ABS Warning Indicator (L1-L4)
G02777591Courtesy of FORD MOTOR CO.

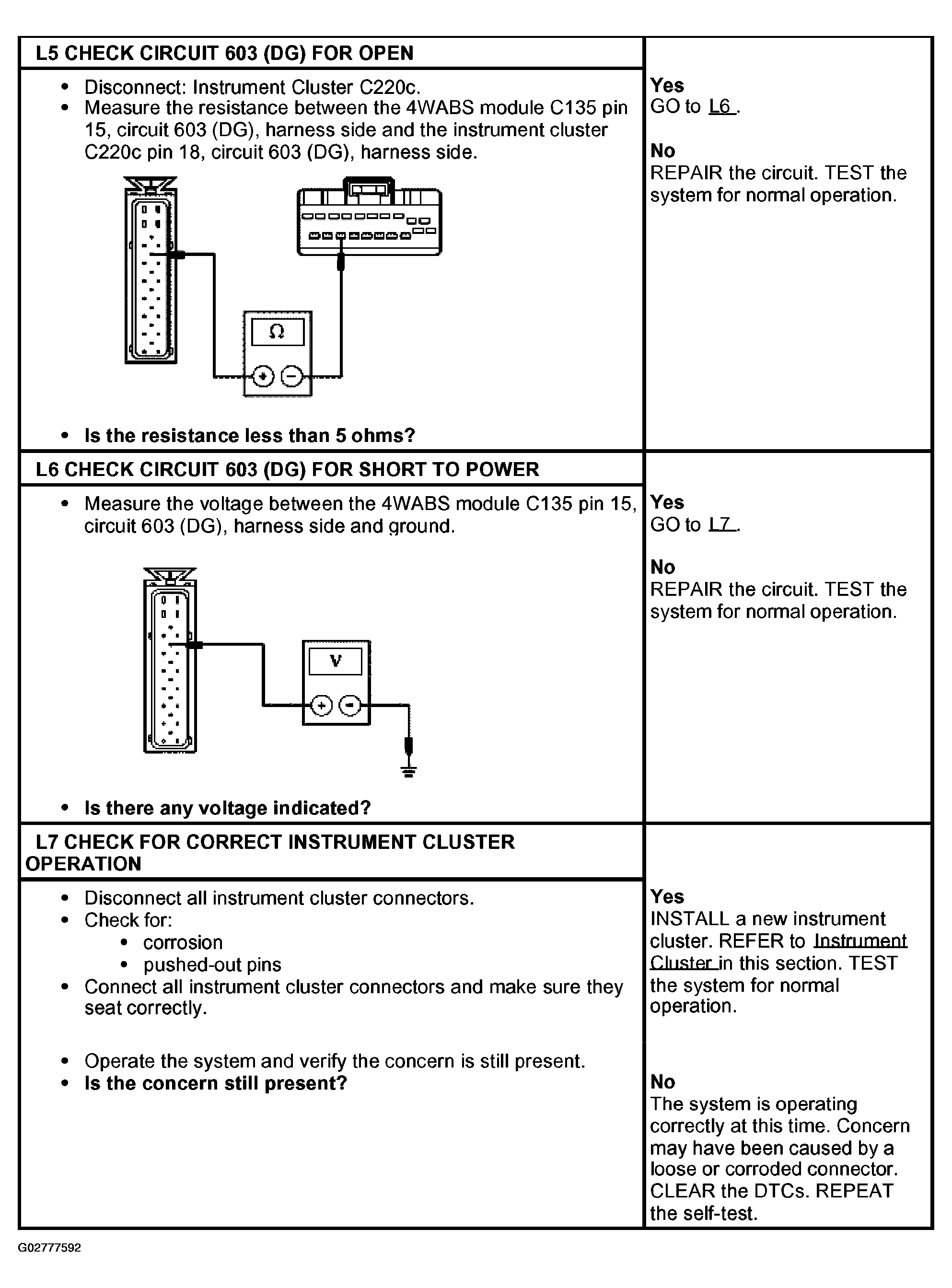

Fig 2: Pinpoint Test L ABS Warning Indicator (L5-L7)
G02777592Courtesy of FORD MOTOR CO.
