Vacuum Reservoir Tank and Bracket: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the nuts.

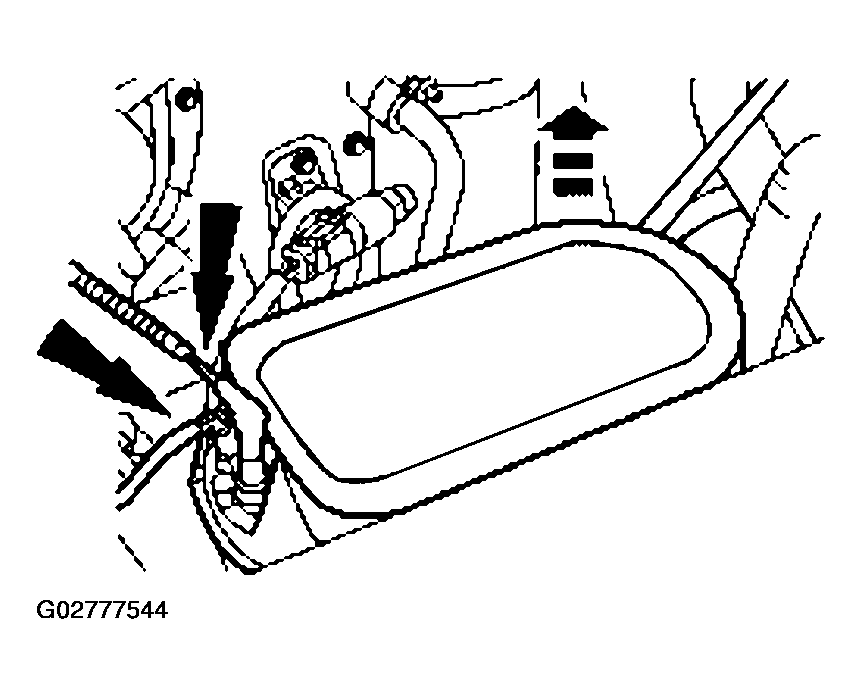

Fig 1: Removing Nuts
Courtesy of FORD MOTOR CO.
Disconnect the vacuum hoses and remove the A/C vacuum reservoir tank and bracket (5.4L and 6.8L engines).

Fig 2: Disconnecting Vacuum Hoses And Removing A/C Vacuum Reservoir Tank And Bracket (5.4L And 6.8L Engines)
Courtesy of FORD MOTOR CO.
Disconnect the vacuum hoses and remove the A/C vacuum reservoir tank and bracket (19A566) (7.3L diesel engine).

Fig 3: Disconnecting Vacuum Hoses And Removing A/C Vacuum Reservoir Tank And Bracket (19A566) (7.3L Diesel Engine)
Courtesy of FORD MOTOR CO.
