Vacuum Pump: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

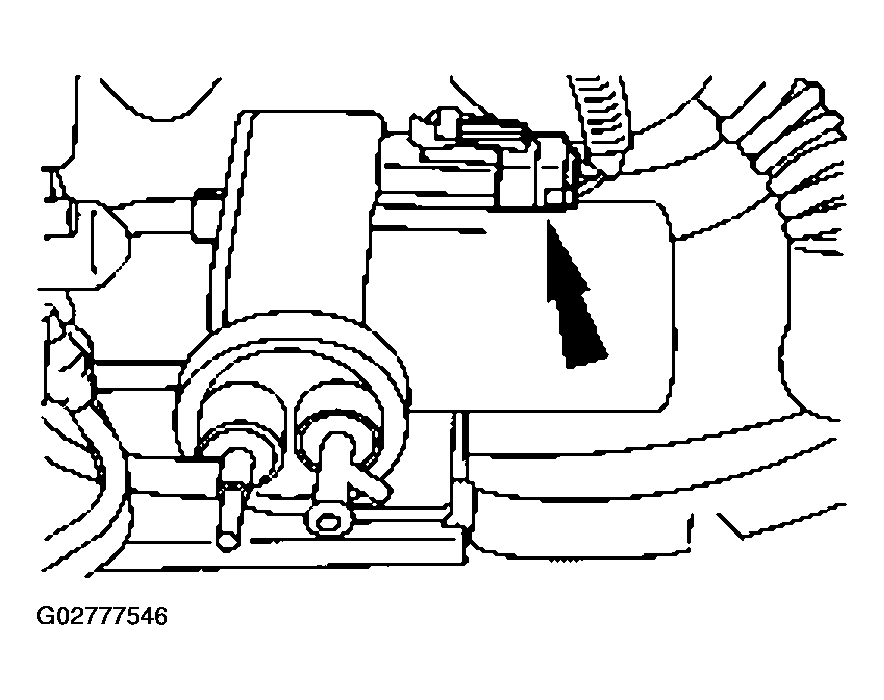

Disconnect the electrical connector.

Fig 1: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.

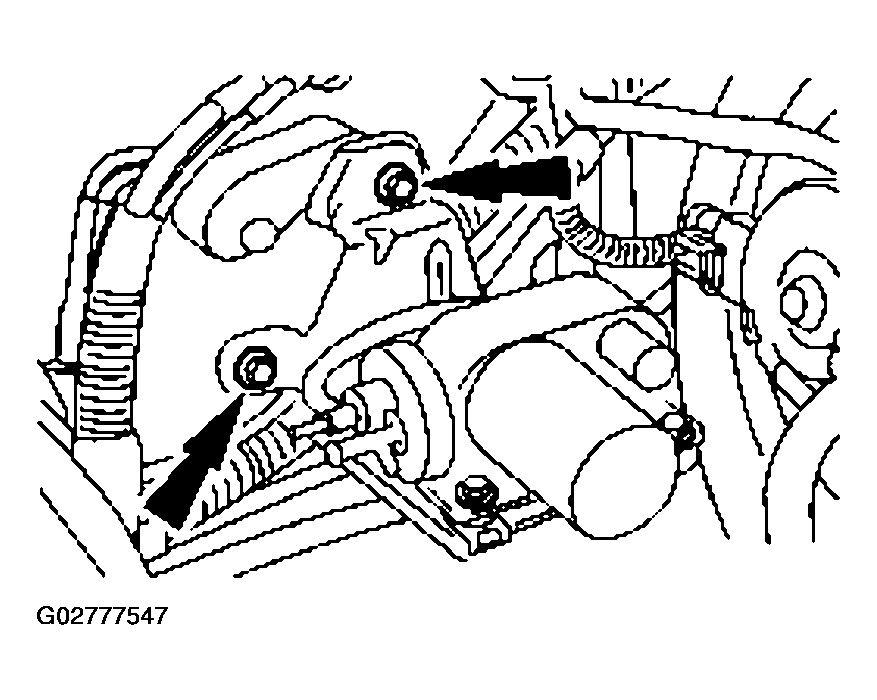

Remove the bolts.

Fig 2: Removing Bolts
Courtesy of FORD MOTOR CO.

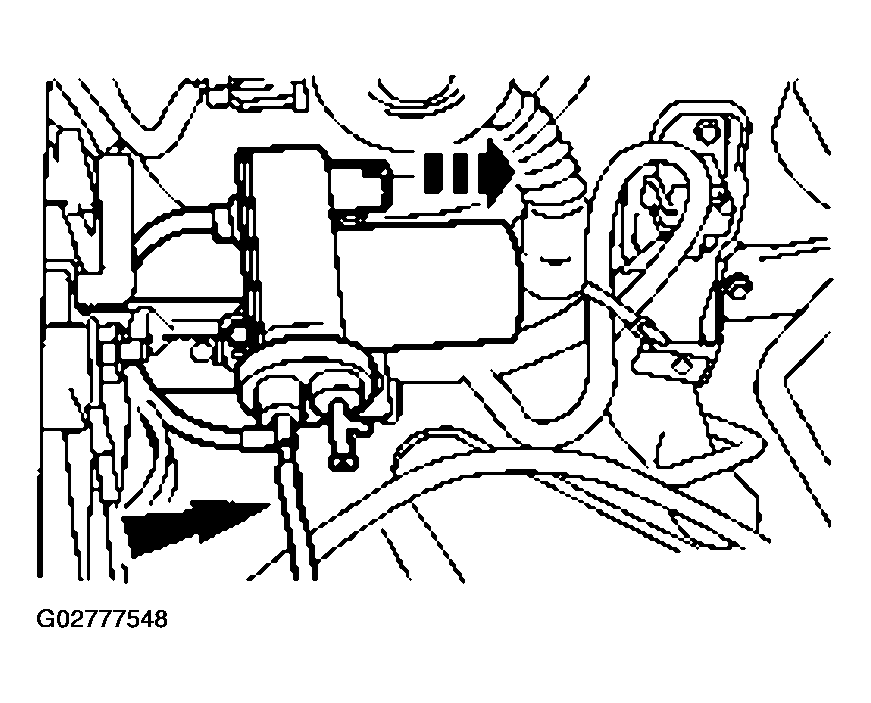

Disconnect the vacuum hose and remove the vacuum pump and bracket.

Fig 3: Disconnecting Vacuum Hose And Removing Vacuum Pump And Bracket
Courtesy of FORD MOTOR CO.
Remove the three ISO mounts and remove the vacuum pump from the bracket.

Fig 4: Removing Three ISO Mounts And Vacuum Pump
Courtesy of FORD MOTOR CO.
