Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering column cover.

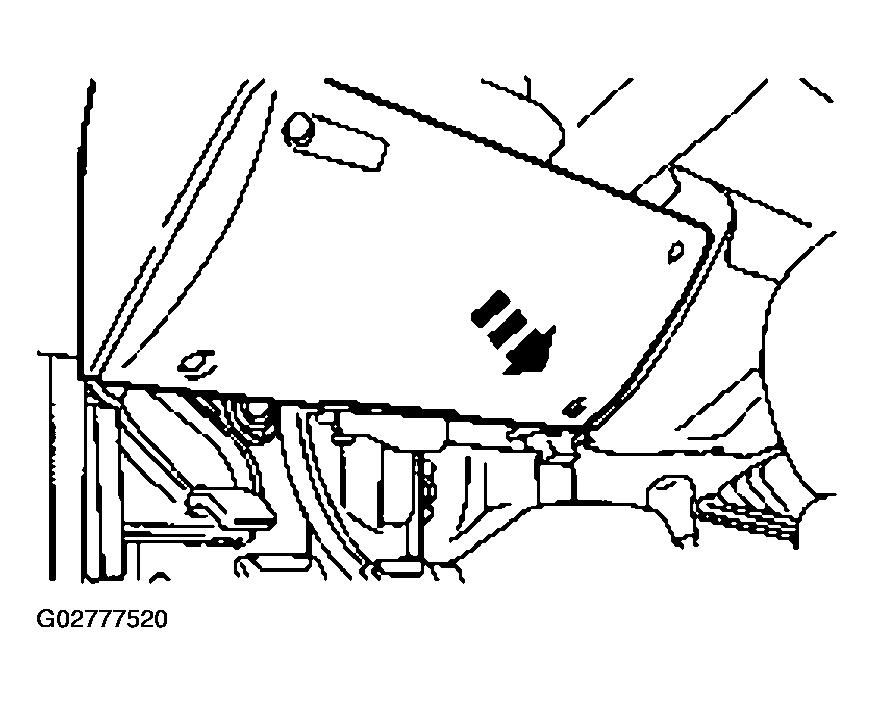

    Fig 1: Removing Steering Column Cover
    G02777520Courtesy of FORD MOTOR CO.
  2. Release the clips and detach the in-car temperature sensor.

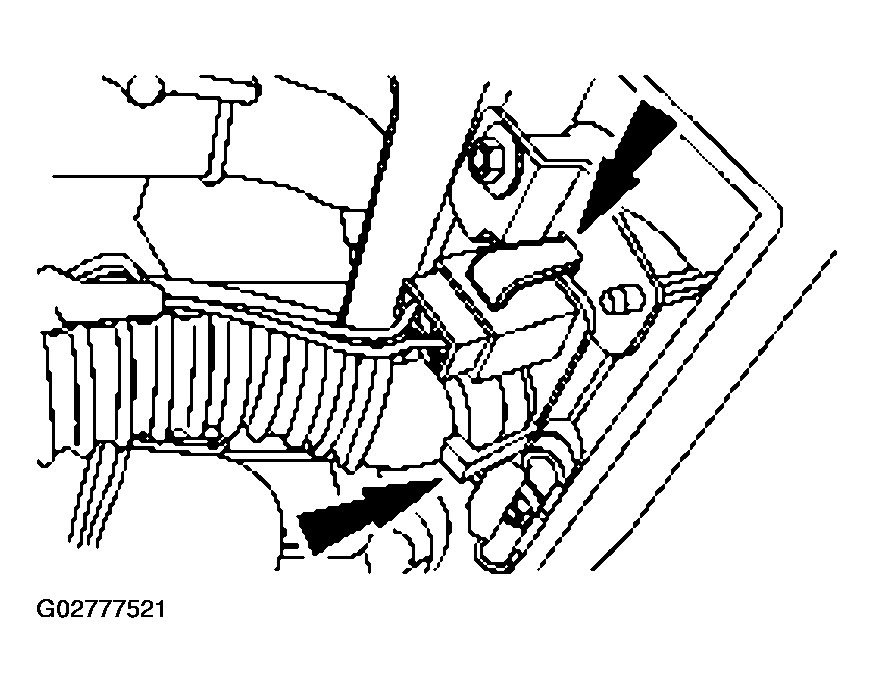

    Fig 2: Removing In-Car Temperature Sensor
    G02777521Courtesy of FORD MOTOR CO.
  3. Disconnect the electrical connector and the venturi hose and remove the in-car temperature sensor.

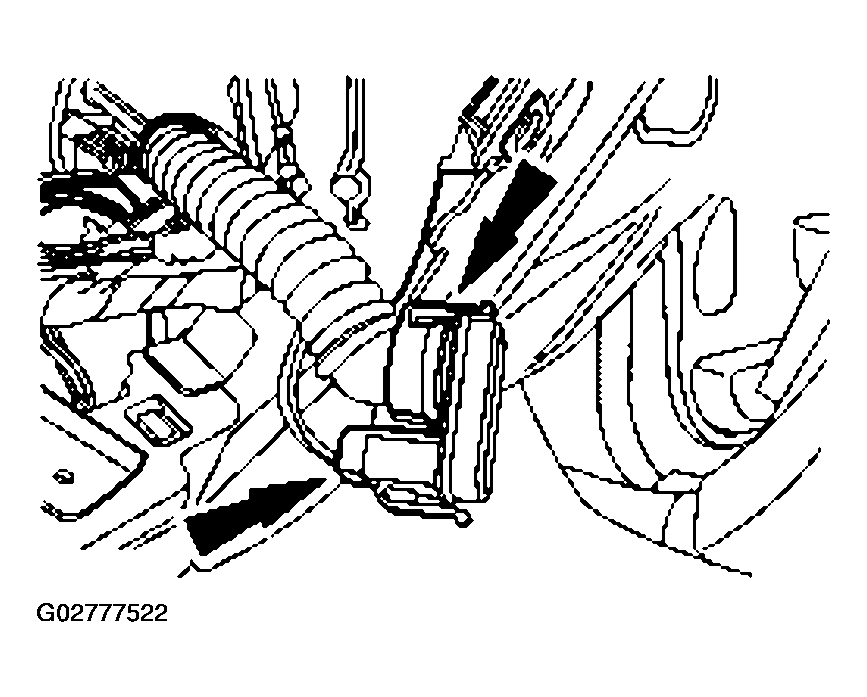

    Fig 3: Disconnecting Electrical Connector And Venturi Hose
    G02777522Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
