Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the audio unit. Refer to AUDIO UNIT .
  2. Disengage the clips and position aside the instrument cluster finish panel.
    Fig 1: Removing Clips And Instrument Cluster Finish Panel
    G02777506Courtesy of FORD MOTOR CO.
  3. Remove the screws and remove the climate control assembly.
    Fig 2: Removing Screws And Climate Control Assembly
    G02777507Courtesy of FORD MOTOR CO.
  4. Disconnect the climate control assembly.
    1. Disconnect the electrical connectors.
    2. Disconnect the vacuum harness connector.

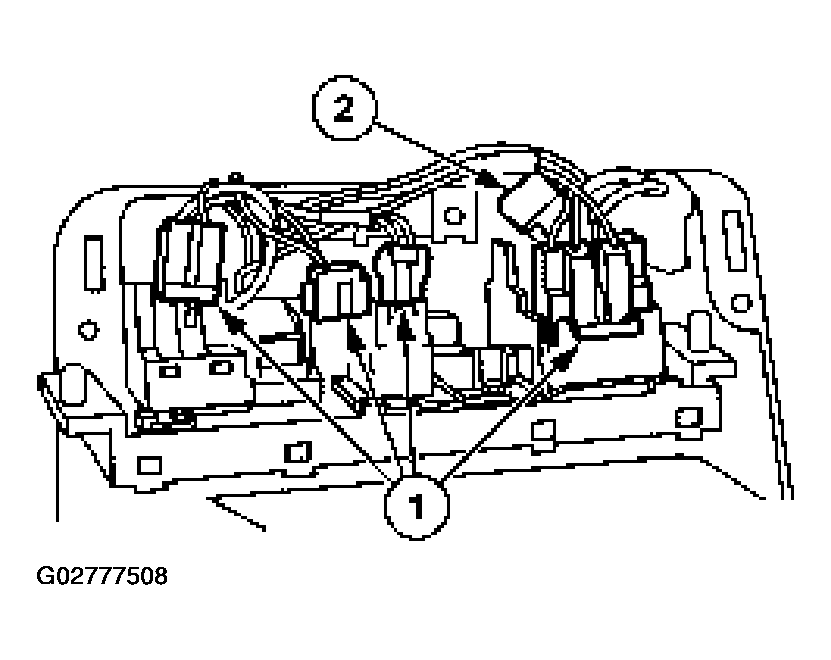

      Fig 3: Disconnecting Electrical Connectors And Vacuum Harness Connector
      G02777508Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
