Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the audio unit. Refer to AUDIO UNIT .
  2. Disengage the retaining clips and position aside the instrument cluster finish panel.
    Fig 1: Removing Retaining Clips And Instrument Cluster Finish Panel
    G02777509Courtesy of FORD MOTOR CO.
  3. Remove the screws.

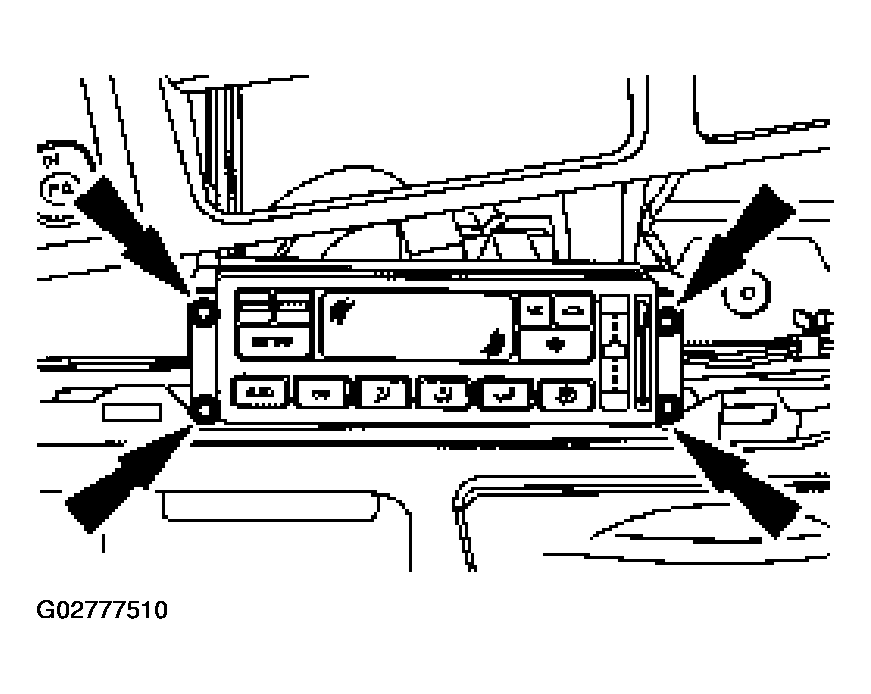

    Fig 2: Removing Screws
    G02777510Courtesy of FORD MOTOR CO.
  4. Disconnect the electrical connectors and remove the climate control assembly.
    Fig 3: Disconnecting Electrical Connectors And Removing Climate Control Assembly
    G02777511Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
