Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

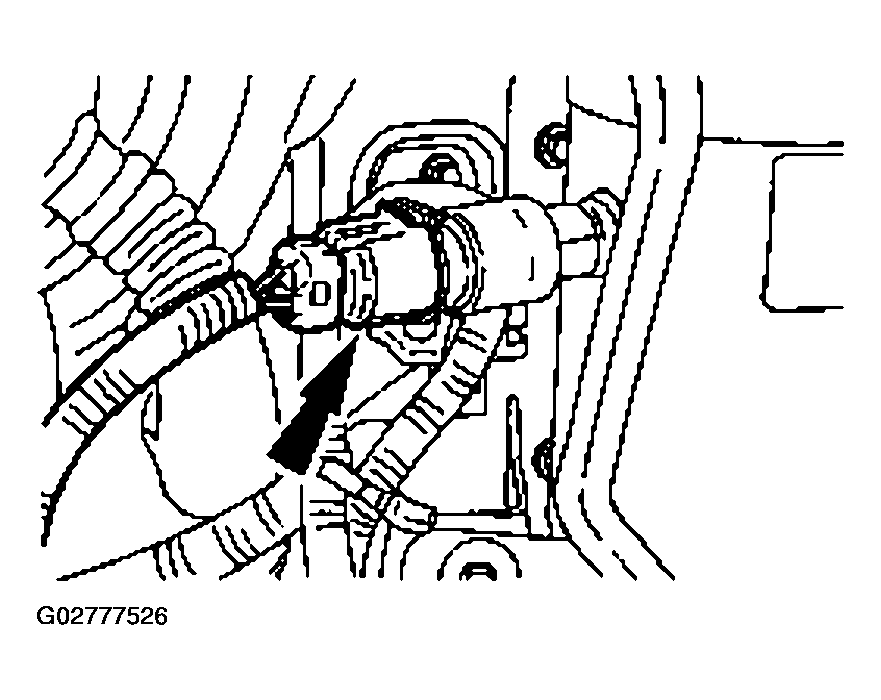

Disconnect the A/C cycling switch (19E561) electrical connector.

Fig 1: Disconnecting A/C Cycling Switch Electrical Connector
Courtesy of FORD MOTOR CO.

Vehicles with auxiliary A/C
Remove the bolt and position the auxiliary heater lines aside.

Fig 2: Removing Bolt And Auxiliary Heater Lines Aside
Courtesy of FORD MOTOR CO.

All vehicles

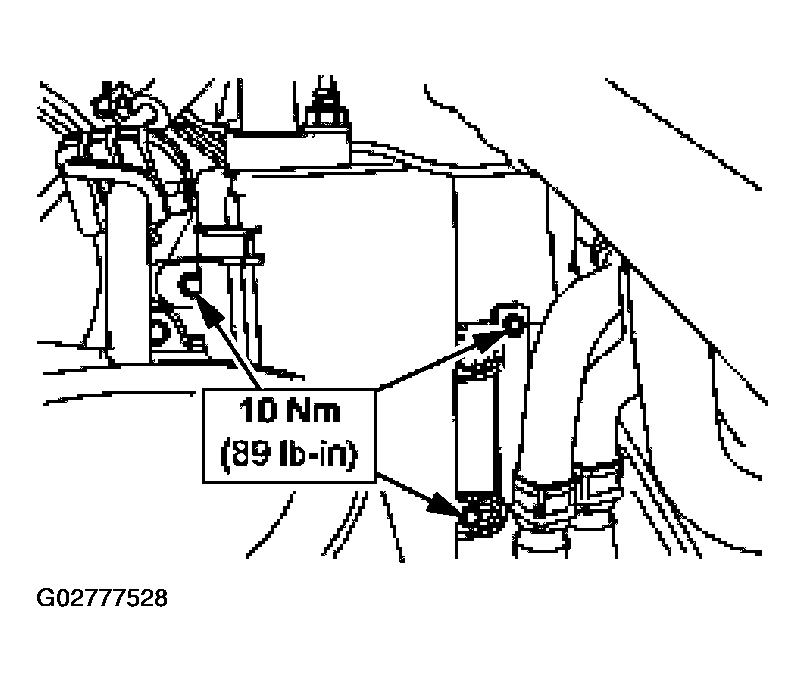

Remove the screws and slightly position the suction accumulator (19C836) aside.

Fig 3: Removing Screws
Courtesy of FORD MOTOR CO.

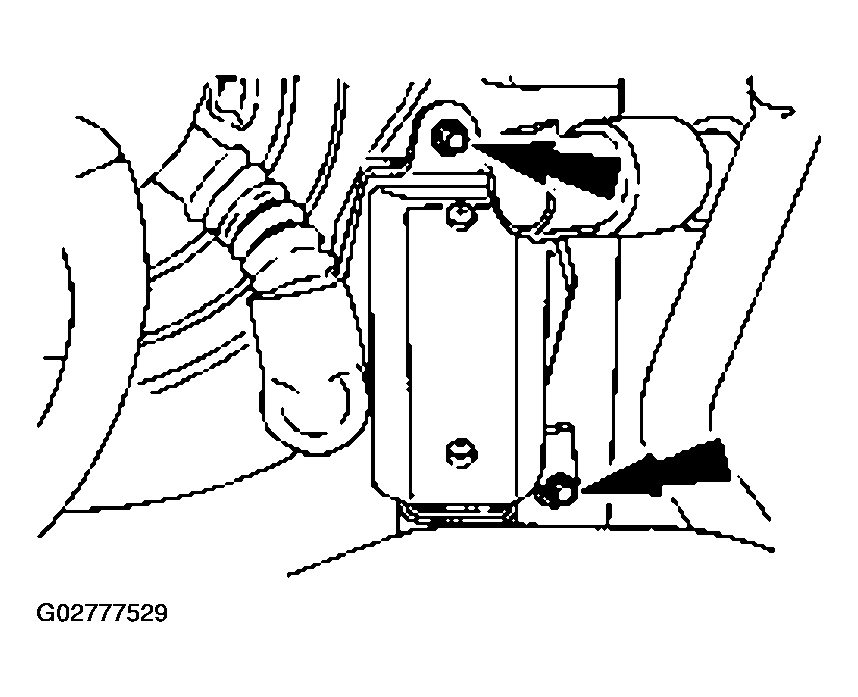

Remove the screws.

Fig 4: Removing Screws
Courtesy of FORD MOTOR CO.

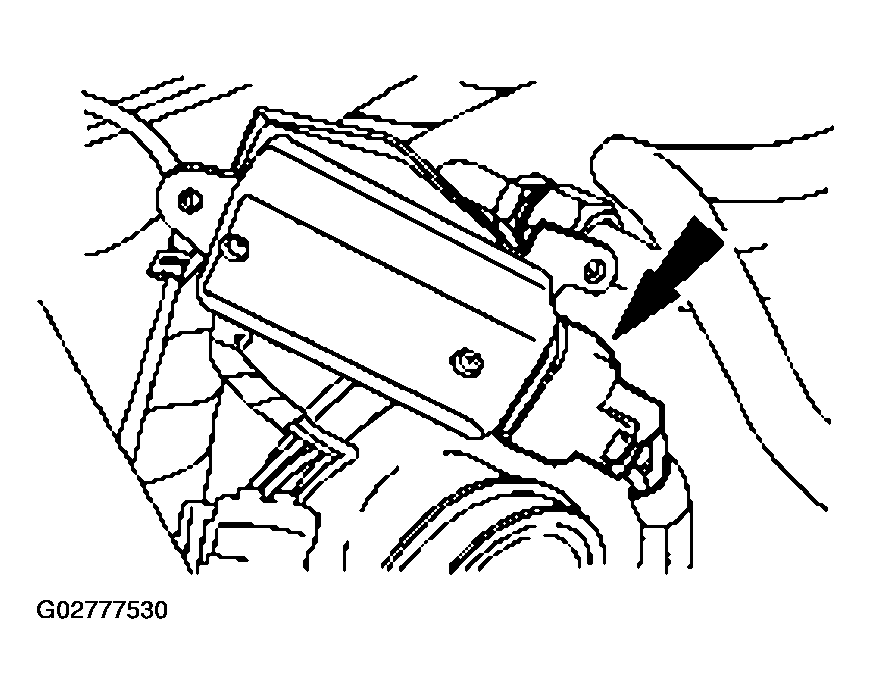

Disconnect the electrical connector and remove the blower motor speed control.

Fig 5: Disconnecting Electrical Connector And Removing Blower Motor Speed Control
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
