Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the audio unit. Refer to AUDIO UNIT .
  2. Disconnect the automatic temperature control (ATC) solenoid and manifold.
    1. Disconnect the vacuum connector.
    2. Disconnect the electrical connector.

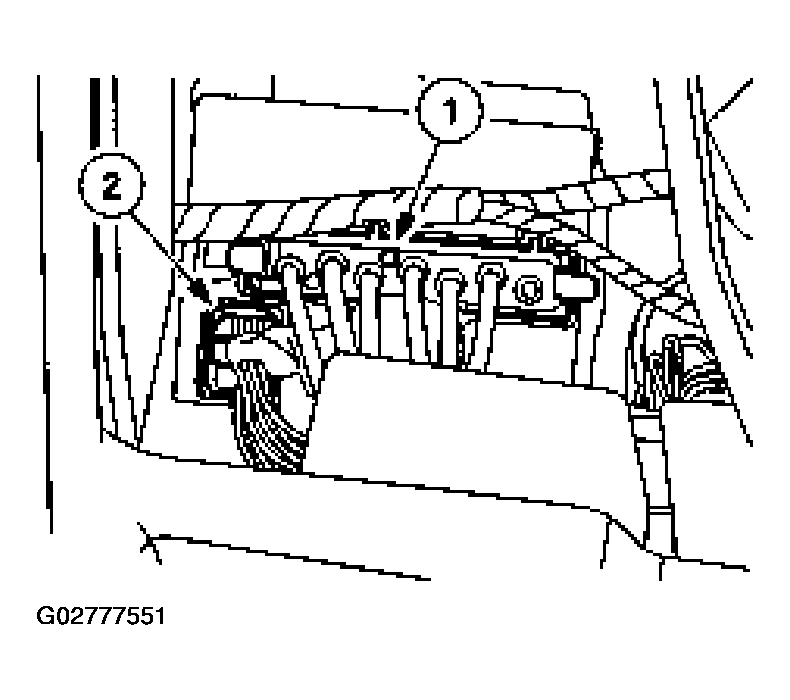

      Fig 1: Disconnecting Vacuum Connector And Electrical Connector
      G02777551Courtesy of FORD MOTOR CO.
  3. Remove the screw and remove the ATC solenoid and manifold.

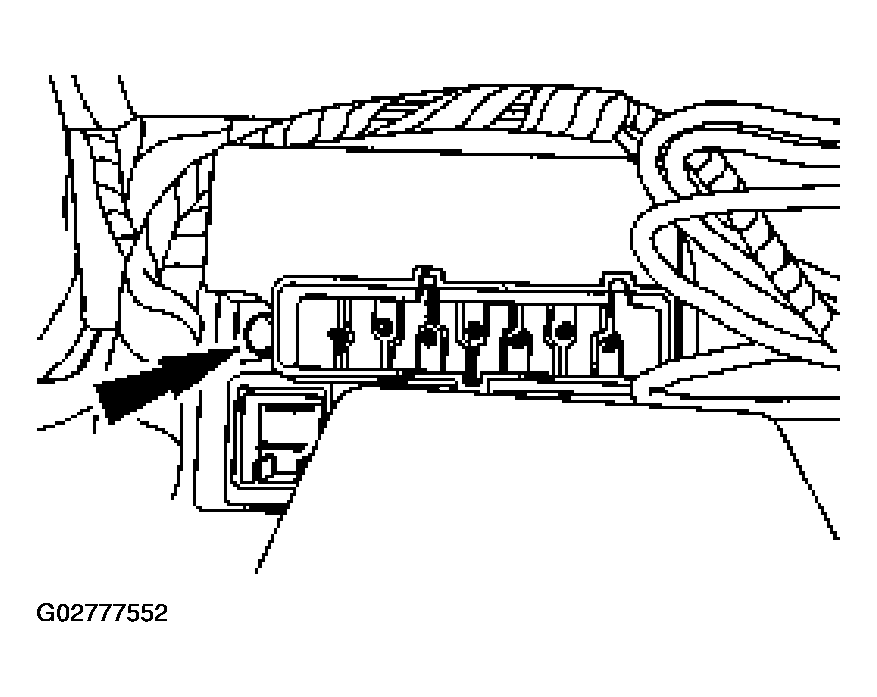

    Fig 2: Removing Screw And ATC Solenoid And Manifold
    G02777552Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
