Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the eight pin-type retainers and remove the upper radiator sight shield.

Fig 1: Removing Eight Pin-Type Retainers And Upper Radiator Sight Shield
Courtesy of FORD MOTOR CO.
Remove the two upper pin-type retainers and position aside the air deflector.

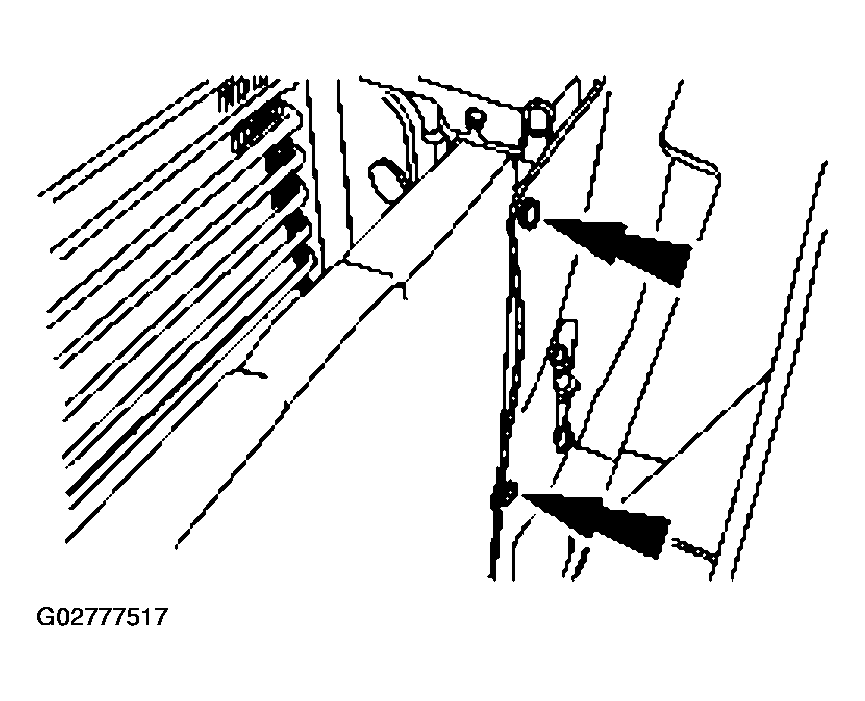

Fig 2: Removing Two Upper Pin-Type Retainers And Air Deflector
Courtesy of FORD MOTOR CO.
Detach the ambient temperature sensor pin-type retainer.

Fig 3: Removing Ambient Temperature Sensor Pin-Type Retainer
Courtesy of FORD MOTOR CO.
Disconnect the electrical connector and remove the ambient temperature sensor.

Fig 4: Disconnecting Electrical Connector And Removing Ambient Temperature Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
