Blower Motor Thermal Limiter
WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

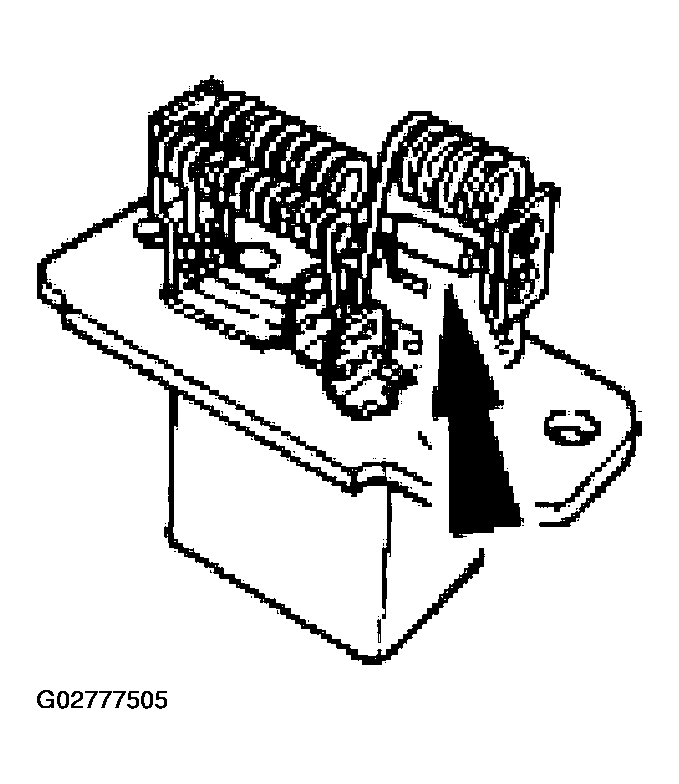

The heater blower motor switch resistor (19A706) has the following features:
- The assembly is located on the evaporator core housing in the engine compartment.
- Three resistance elements are mounted on the resistor board to provide four A/C blower motor speeds.
- Depending on the heater blower motor switch position, series resistance is added or bypassed in the A/C blower motor circuit to decrease or increase A/C blower motor speed.
- An overheating protective device (thermal limiter) will open the resistor coil circuit when the temperature reaches 121°C (250°F), interrupting the blower motor operation in all speeds except HI.
- The thermal limiter cannot be reset and is not repairable.
