Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the access panel from the RH rear quarter trim panel.
  2. Remove the blower motor (18527).
    1. Disconnect the electrical connector.
    2. Remove the blower motor breather.
    3. Remove the blower motor screws.
    4. Remove the blower motor.

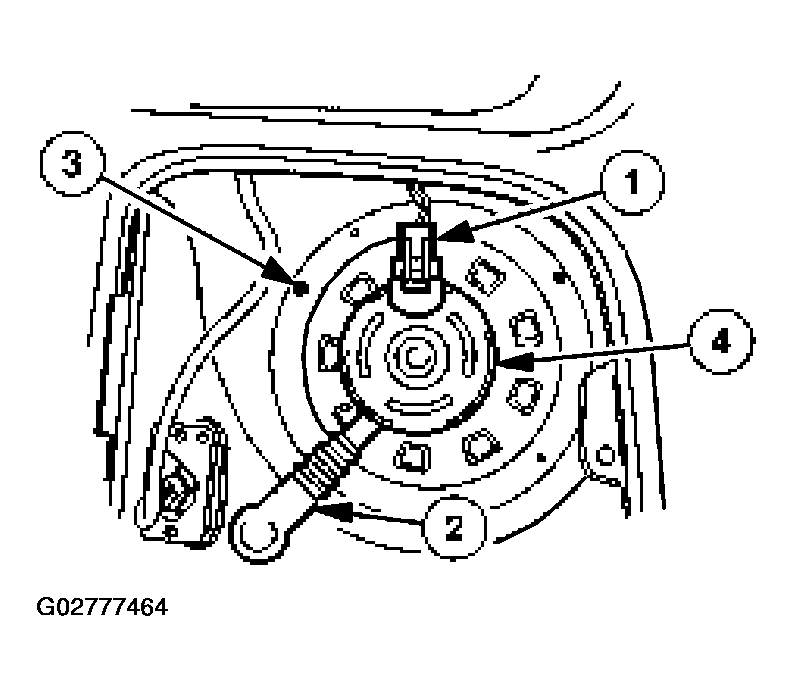

      Fig 1: Removing Blower Motor
      G02777464Courtesy of FORD MOTOR CO.
  3. Remove the blower motor wheel (18504) from the blower motor.
    1. Remove the push clip.
    2. Remove the blower motor wheel.

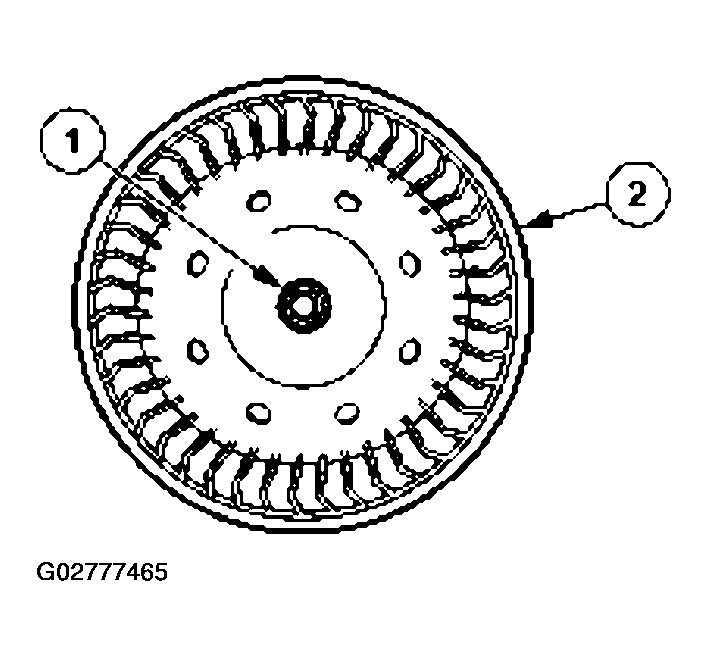

      Fig 2: Removing Blower Motor Wheel From Blower Motor
      G02777465Courtesy of FORD MOTOR CO.
    4. NOTE: Install a new push clip when reinstalling the blower motor wheel to the blower motor.
  4. To install, reverse the removal procedure.
