Auxiliary Heater Outlet and Inlet Line: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Install and connect the rear portion of the auxiliary heater inlet line(s).
- Lubricate the coolant hoses with plain water only if needed.

  Fig 1: Installing Rear Portioning Of Auxiliary Heater Inlet Line(s)
  Courtesy of FORD MOTOR CO.
Snap the rear auxiliary heater inlet line into the line brackets.
Install and connect the front auxiliary heater inlet line(s) through the fender well.

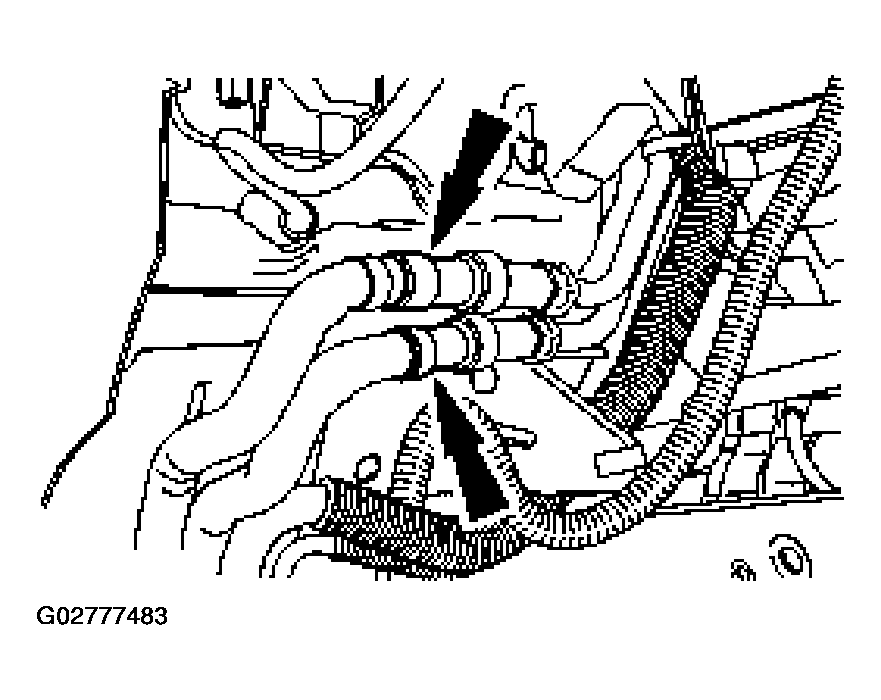

Fig 2: Connecting Front Auxiliary Heater Inlet Line(s)
Courtesy of FORD MOTOR CO.
Install the auxiliary line brackets and loosely install the nuts.

Fig 3: Installing Auxiliary Line Brackets
Courtesy of FORD MOTOR CO.

CAUTION: Use a wrench on each side of the fitting to prevent damage to the fitting.

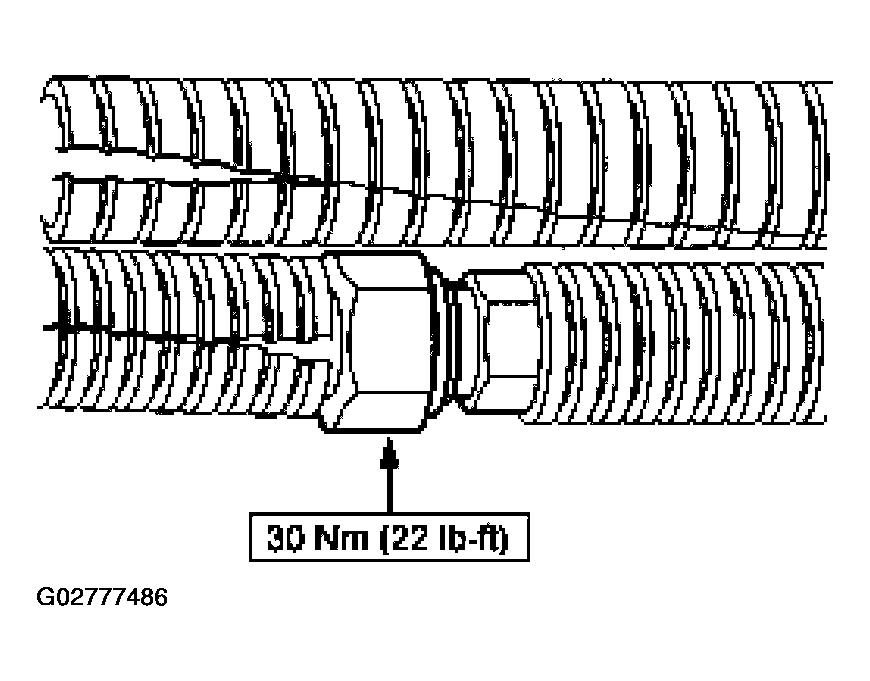

Fig 4: Connecting Two Auxiliary Heater Inlet Lines

Courtesy of FORD MOTOR CO.

Connect the two auxiliary heater inlet lines.

CAUTION: Use a wrench on each side of the fitting to prevent damage to the fitting.

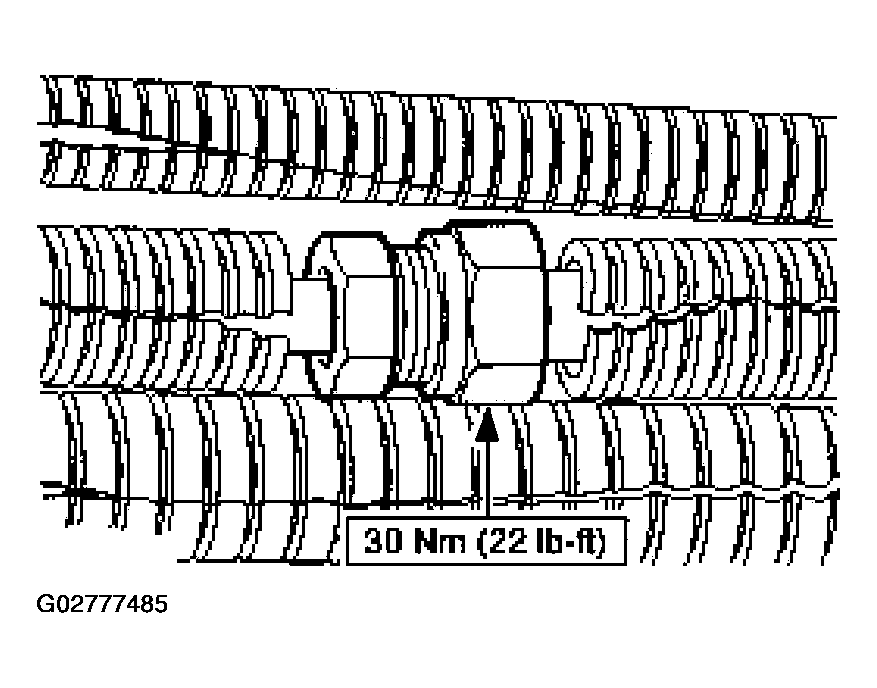

Fig 5: Connecting Two Auxiliary Heater Outlet Lines

Courtesy of FORD MOTOR CO.

Connect the two auxiliary heater outlet lines.

CAUTION: Overtightening of the nut will cause the stud to break away from the floor pan.

Fig 6: Tightening Five Bracket Nuts

Courtesy of FORD MOTOR CO.

Tighten the five bracket nuts.
Install the RH fender splash shield. Refer to FRONT END BODY PANELS .
Install the RH rear wheel.
Fill the cooling system. Refer to ENGINE COOLING .
