Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refrigerant compressor oil F73Z-19577-AA (Motorcraft YN-9-A) should be used to lubricate R-134a refrigerant system O-ring seals only and should not be added to R-134a refrigerant systems as an A/C compressor lubricant. PAG refrigerant compressor oil F7AZ-19D589-DA (Motorcraft YN-12-C) or equivalent meeting Ford specification WSH-M1C231-B only should be used as an A/C compressor lubricant.
  1. Recover the refrigerant. Refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION .
  2. Remove the third row seat.
  3. Carefully pull out where indicated on the RH shoulder safety belt guide cover and open.
    Fig 1: Removing RH Shoulder Safety Belt Guide Cover
    G02777454Courtesy of FORD MOTOR CO.
  4. Remove the RH shoulder safety belt guide.
    1. Remove the nut.
    2. Remove the shoulder safety belt guide.
      Fig 2: Removing RH Shoulder Safety Belt Guide
      G02777455Courtesy of FORD MOTOR CO.
  5. Pull out to release the retaining clips and remove the upper RH C-pillar trim panel.
    Fig 3: Removing Retaining Clips And Upper RH C-Pillar Trim Panel
    G02777456Courtesy of FORD MOTOR CO.
  6. Position aside the RH quarter trim panel.
  7. Remove the vehicle jack.
    8. NOTE: The remaining three screws securing the heater core cover (18B300) will be removed once the air conditioning and heater assembly (18D283) is removed.

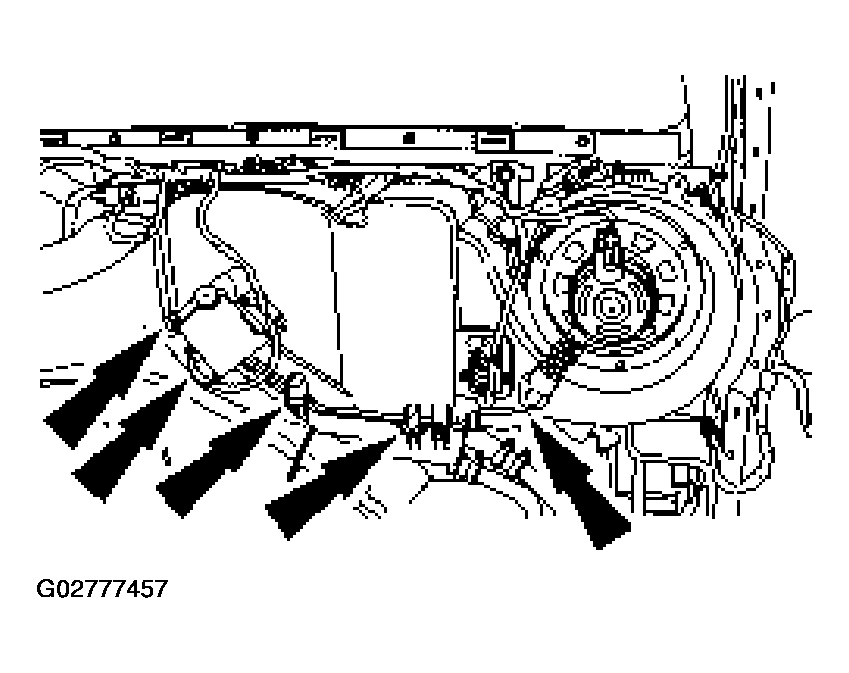

    Fig 4: Removing Five Screws From Heater Core Cover
    G02777457Courtesy of FORD MOTOR CO.
  8. Remove five screws from the heater core cover.
  9. Disconnect the electrical connectors and set the wiring assembly (14A504) aside.

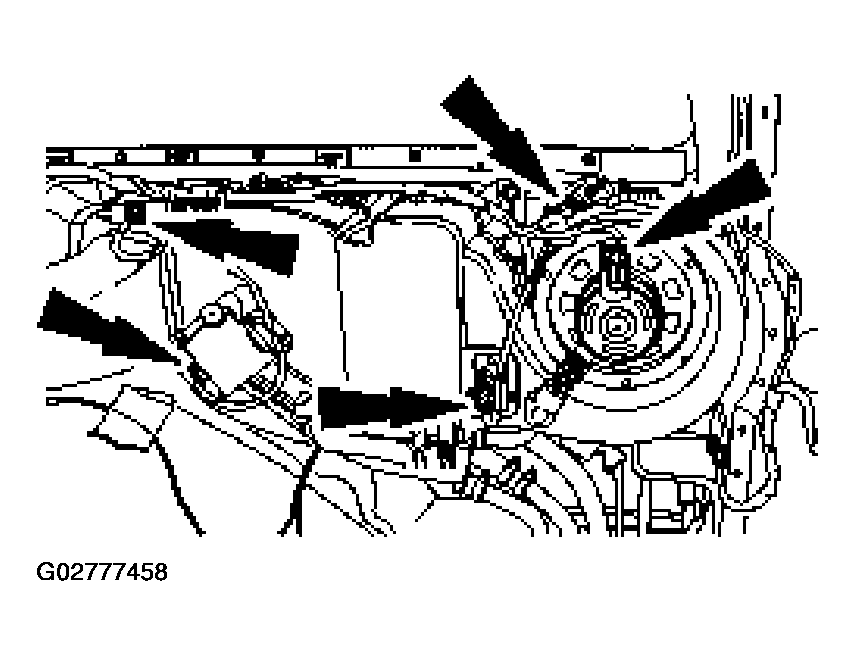

    Fig 5: Disconnecting Electrical Connectors
    G02777458Courtesy of FORD MOTOR CO.
  10. Remove the fasteners and remove the lower air duct (18D352).

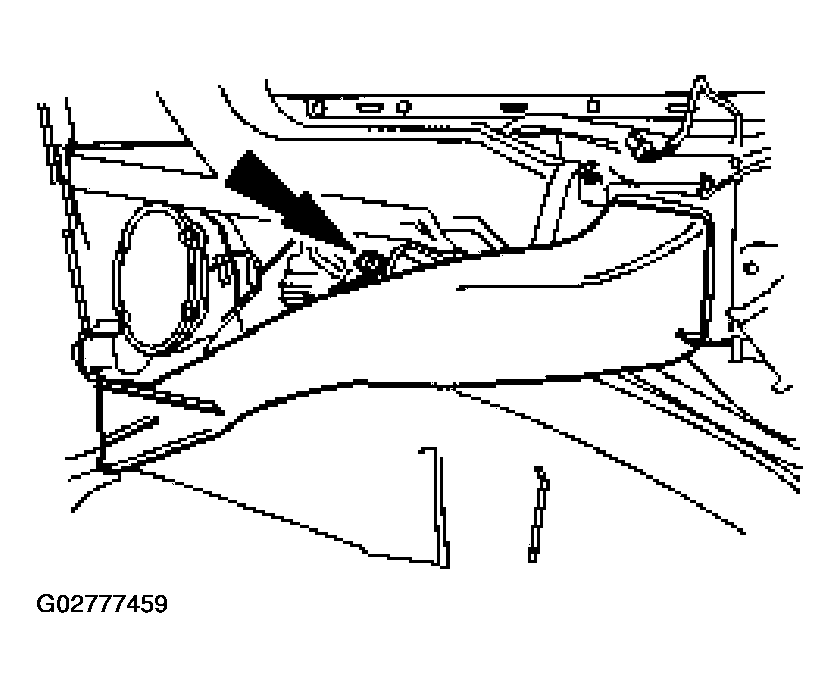

    Fig 6: Removing Fasteners And Lower Air Duct
    G02777459Courtesy of FORD MOTOR CO.
    11. CAUTION: Place protective caps over the open refrigerant lines to avoid contamination of the A/C system.
  11. Disconnect the refrigerant lines.
    • Discard the O-ring seals.

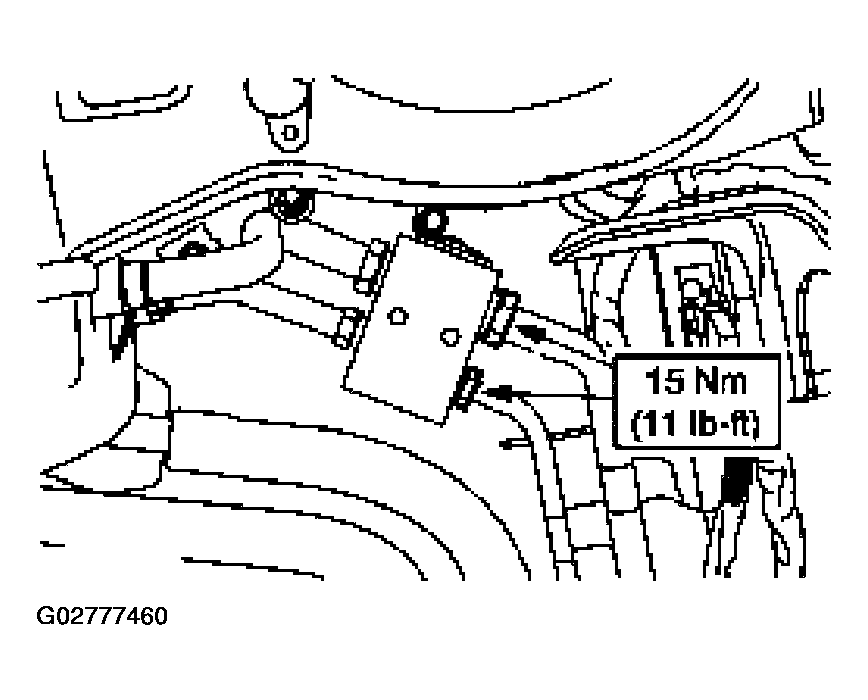

      Fig 7: Disconnecting Refrigerant Lines
      G02777460Courtesy of FORD MOTOR CO.
  12. Disconnect the evaporator case drain hose.
    Fig 8: Disconnecting Evaporator Case Drain Hose
    G02777461Courtesy of FORD MOTOR CO.
  13. Remove the bolts and position the air conditioning and heater assembly (18D283) aside.

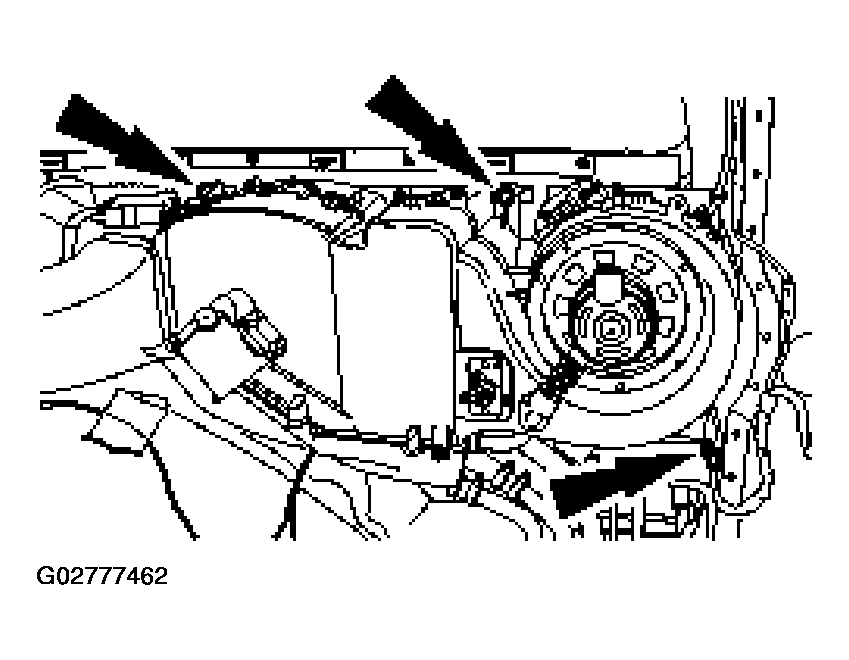

    Fig 9: Removing Bolts And Positioning Air Conditioning And Heater Assembly
    G02777462Courtesy of FORD MOTOR CO.
  14. Remove the remaining three screws from the heater core cover and position aside the heater core.

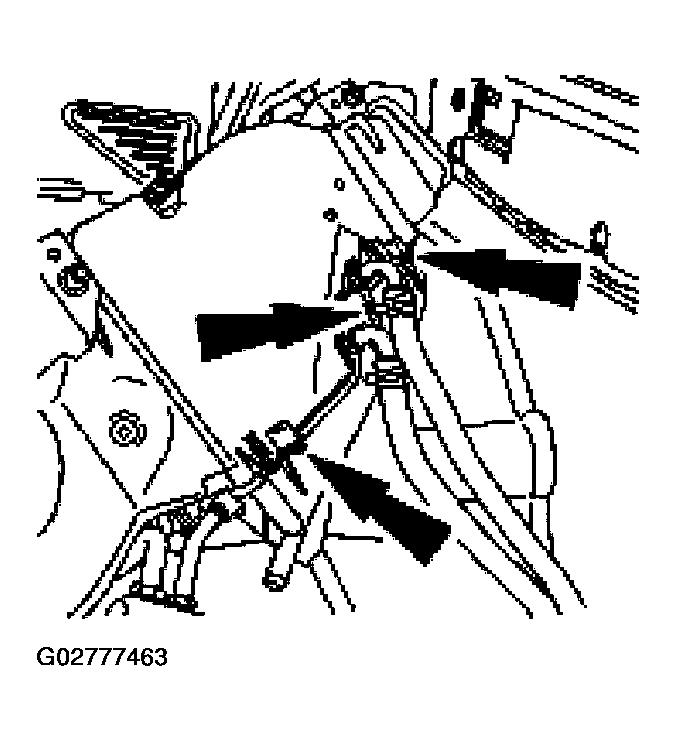

    Fig 10: Removing Remaining Three Screws From Heater Core Cover
    G02777463Courtesy of FORD MOTOR CO.
  15. Remove the air conditioning and heater assembly.
    16. NOTE: Make sure to correctly assemble and seal the air conditioning and heater assembly to allow efficient operation of the auxiliary climate control system.
  16. To install, reverse the removal procedure.
  17. Evacuate, leak test and charge the refrigerant system. Refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION .
