Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the auxiliary climate control assembly.
1. Pull down on the front of the auxiliary climate control assembly and slide forward and downward.
2. Disconnect the electrical connectors.

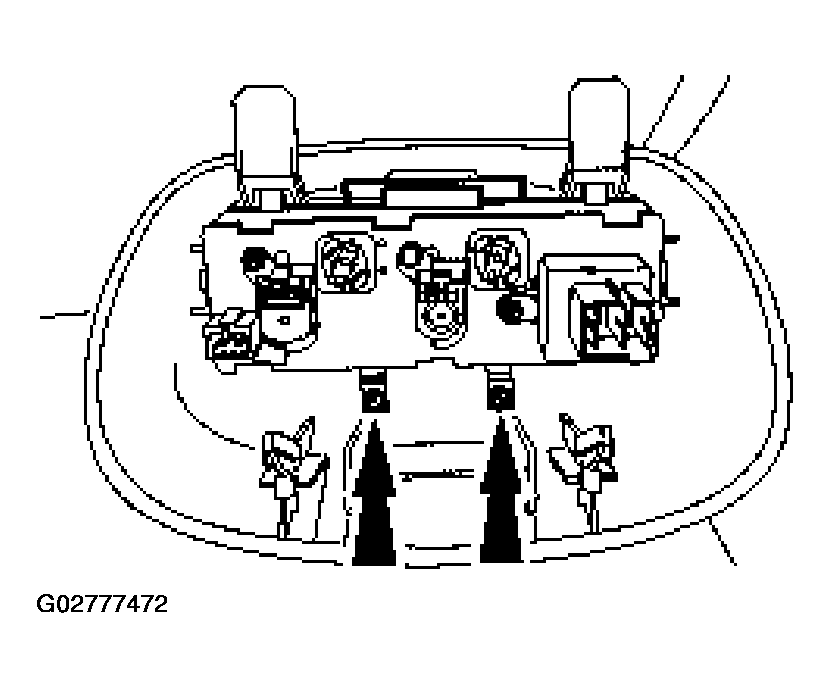

  Fig 1: Disconnecting Electrical Connectors
  Courtesy of FORD MOTOR CO.
Remove the screws and the climate control assembly.

Fig 2: Removing Screws And Climate Control Assembly
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
