Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the screw, disengage the clips, and lower the overhead console (519A58).

Fig 1: Removing Screw, Clips, And Lower Overhead Console
Courtesy of FORD MOTOR CO.

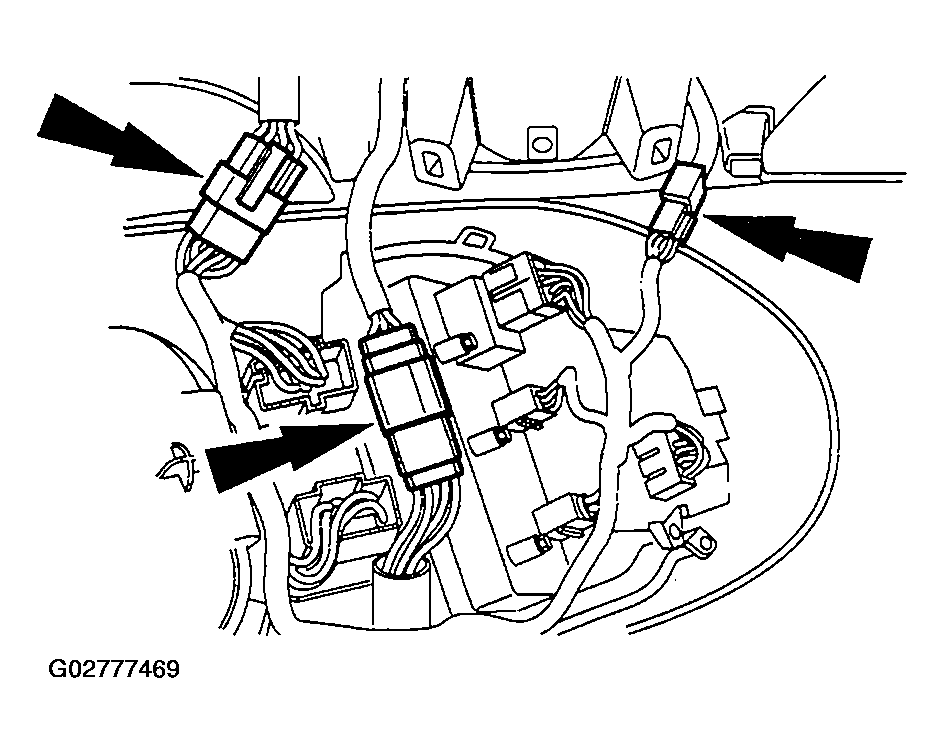

Disconnect the electrical connectors.

Fig 2: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.

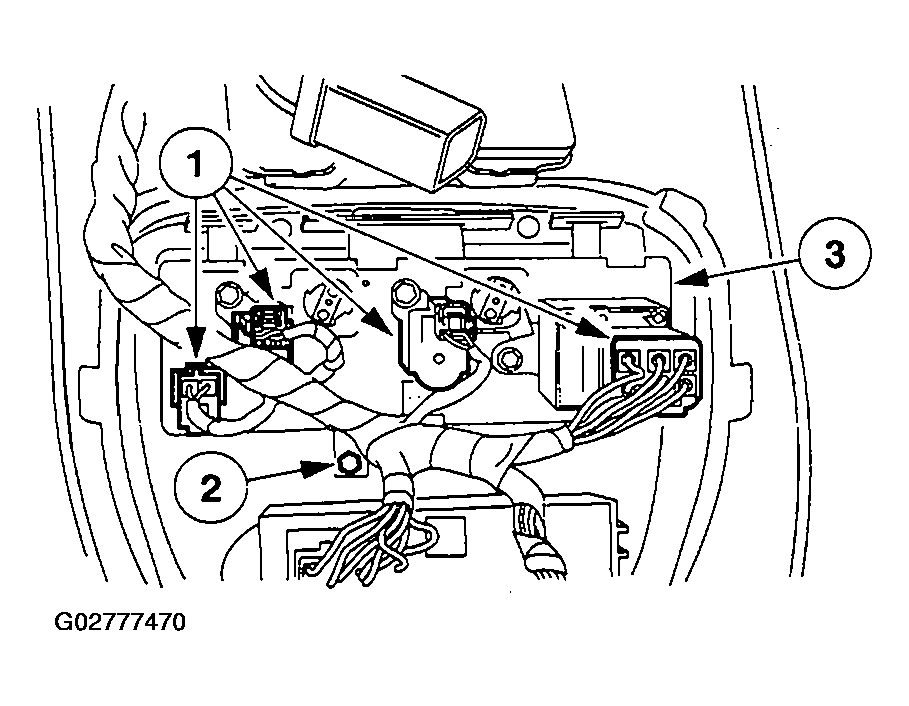

Remove the climate control assembly from the overhead console.
1. Disconnect the electrical connectors.
2. Remove the 2 screws.
3. Remove the climate control assembly.

  Fig 3: Removing Climate Control Assembly From Overhead Console
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
