Clutch and Clutch Field Coil: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the A/C compressor. Refer to AIR CONDITIONING (A/C) COMPRESSOR .
  2. Remove the A/C clutch disc and hub retaining bolt.
    1. Hold the A/C clutch disc and hub with the special tool.
    2. Remove the bolt.
      Fig 1: Removing A/C Clutch Disc And Hub Retaining Bolt
      G02777369Courtesy of FORD MOTOR CO.
  3. Remove the A/C clutch disc and hub spacer.
    1. Thread an 8 x 1.25 mm bolt into the A/C clutch disc and hub to force it from the compressor shaft.
    2. Lift the A/C clutch disc and hub, and the A/C clutch disc and hub spacer from the compressor shaft.
      Fig 2: Removing A/C Clutch Disc And Hub Spacer
      G02777370Courtesy of FORD MOTOR CO.
  4. Remove the pulley snap ring.

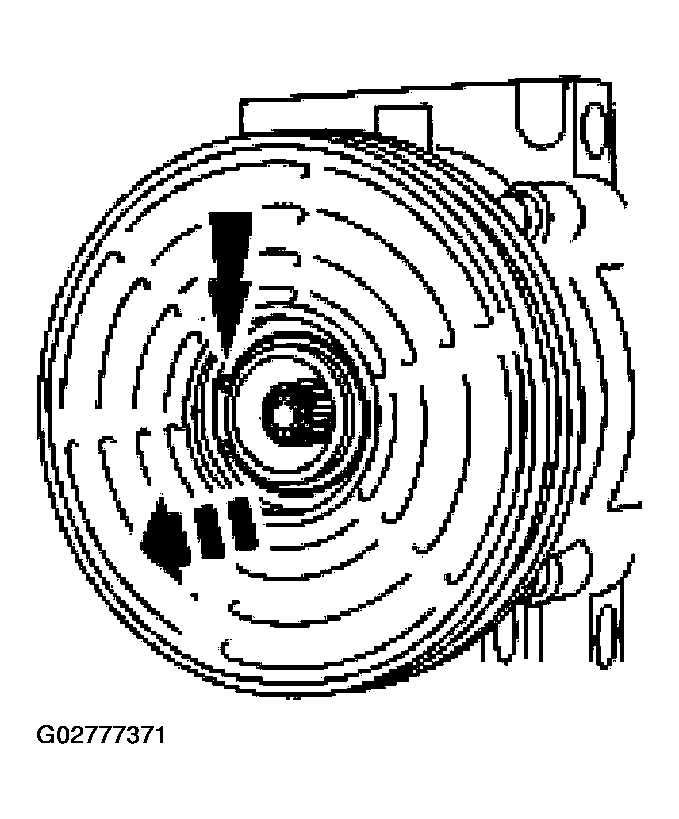

    Fig 3: Removing Pulley Snap Ring
    G02777371Courtesy of FORD MOTOR CO.
  5. Remove the A/C clutch pulley (19D784).
    1. Install the special tool.
    2. Remove the A/C clutch pulley.

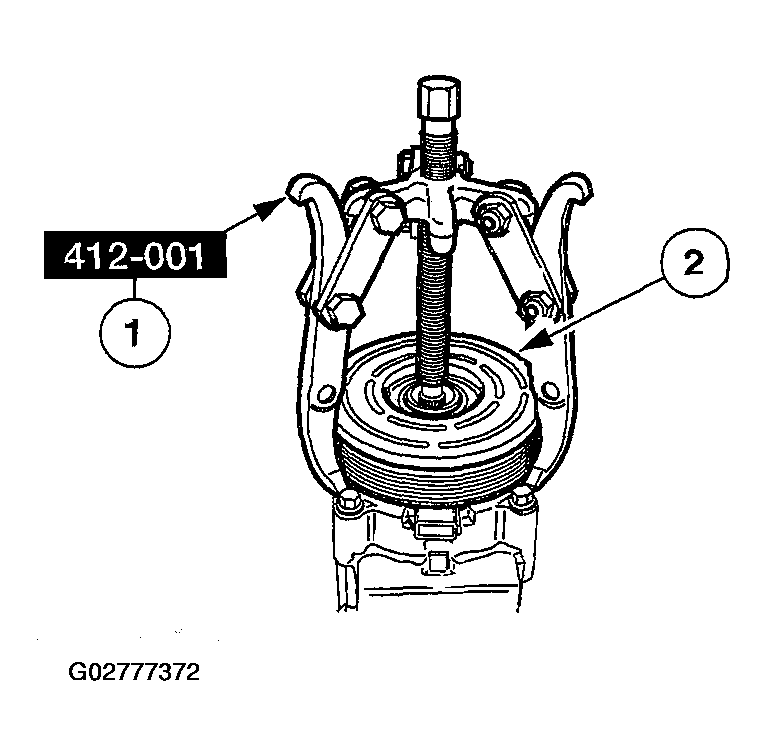

      Fig 4: Removing A/C Clutch Pulley
      G02777372Courtesy of FORD MOTOR CO.
    6. CAUTION: Do not use air tools. The A/C clutch field coil can be easily damaged.
  6. Remove the A/C clutch field coil.
    1. Install the special tool on the nose opening of the A/C compressor.
    2. Install the special tool.
    3. Remove the A/C clutch field coil.
      Fig 5: Removing A/C Clutch Field Coil
      G02777373Courtesy of FORD MOTOR CO.
