Vacuum Hose Repair - Mini-Tube
WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

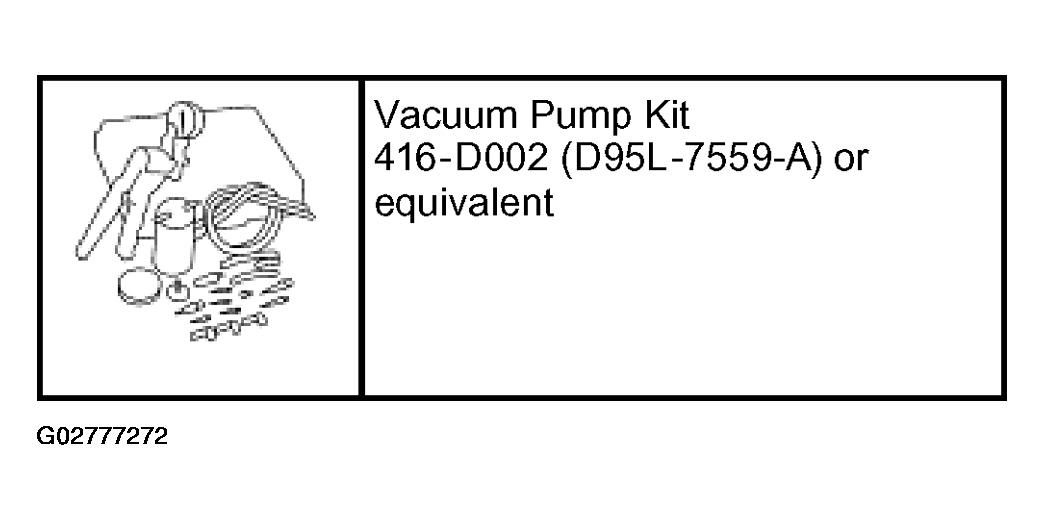

Special Tool(s)
- Measure the length of the damaged area of the mini-tube vacuum hose.
- Cut a piece of standard 1/8-inch inner diameter vacuum hose approximately 25 mm (1 inch) longer than the damaged area of the mini-tube vacuum hose.
- Cut off the mini-tube vacuum hose on each side of the damaged area.
- Dip the mini-tube hose ends in commercially available paint thinner containing methyl ethyl ketone (MEK). This solvent will seal the mini-tube in the vacuum hose.

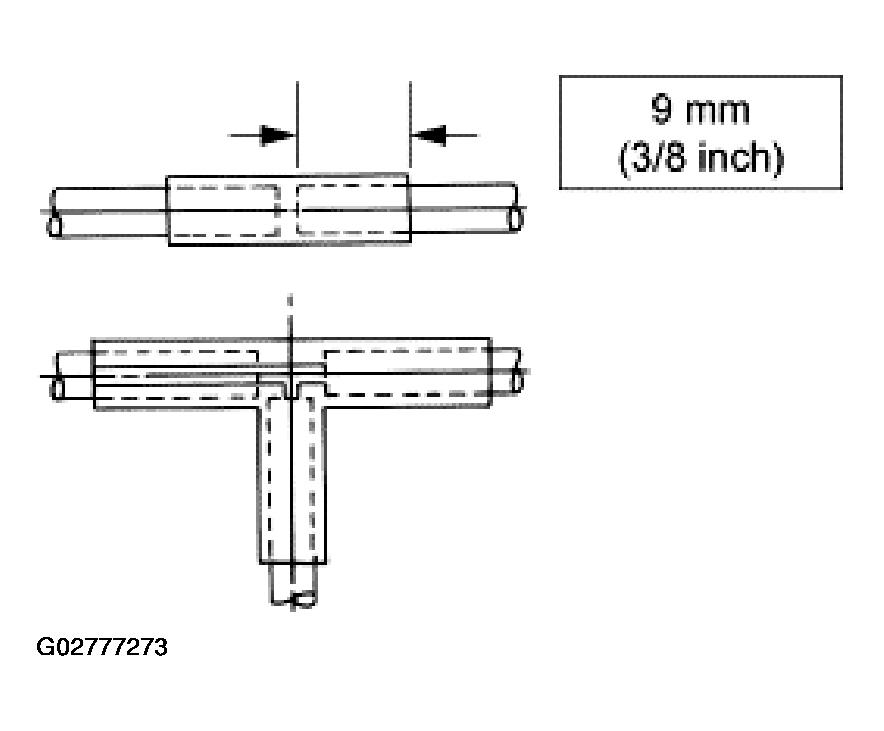

- Insert the ends of the mini-tube vacuum hose approximately 9 mm (3/8 inch) into the ends of the standard 1/8-inch repair vacuum hose section.
- Shake the repair joint after assembly to make sure the solvent is dispersed and the vacuum line is not plugged.
- Test the system for a vacuum leak in the repair area.
- Use the Vacuum Pump or equivalent.
WARNING:
Read the warning information on the product label to prevent possible personal injury.
