Diagnostic Table

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The following table is used to guide diagnosis of the refrigerant system if operating pressures are outside normal limits.

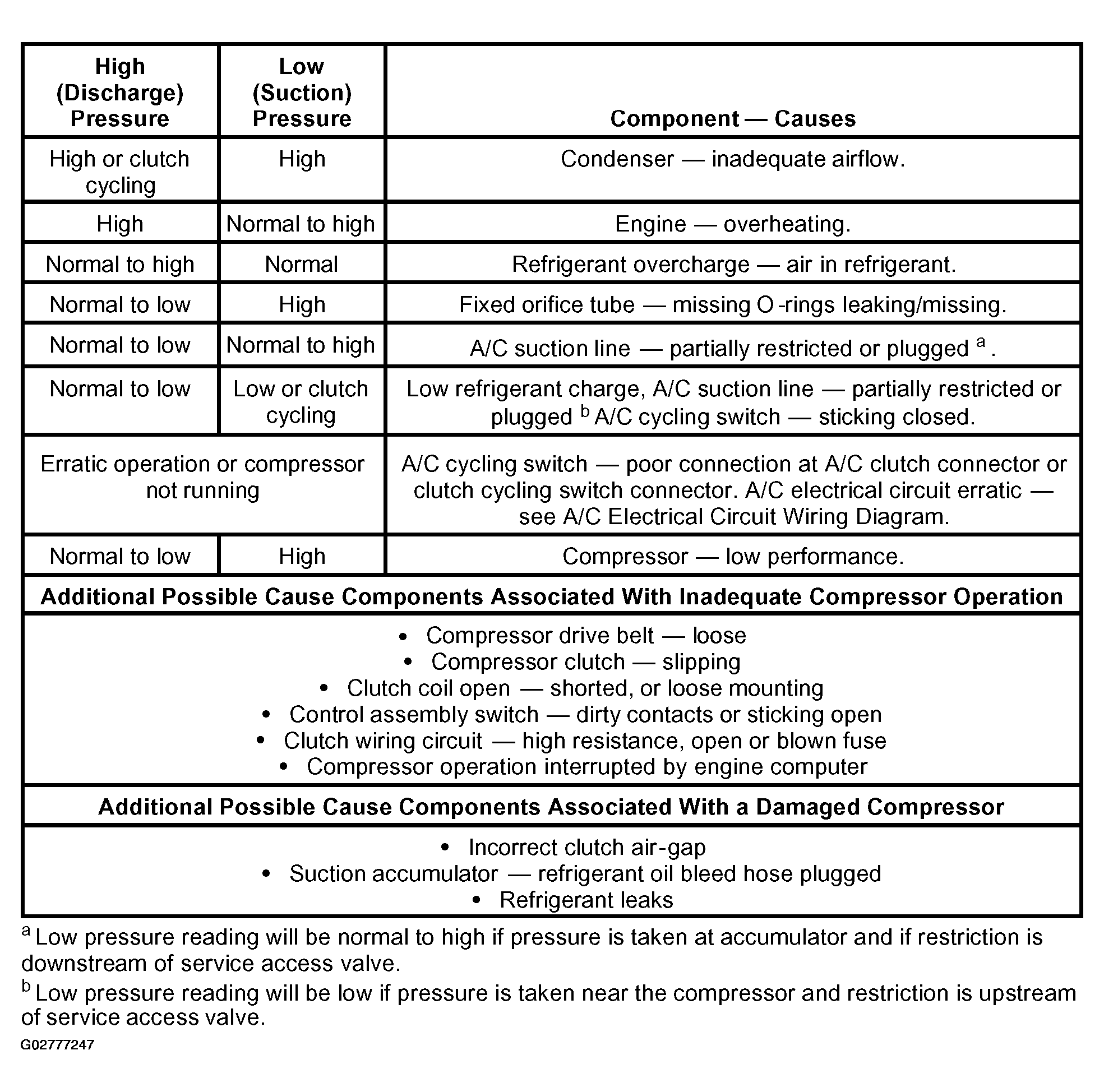

    Fig 1: Diagnostic Chart
    G02777247Courtesy of FORD MOTOR CO.
  1. Refer to the chart below.
