Electronic Leak Detection

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s)

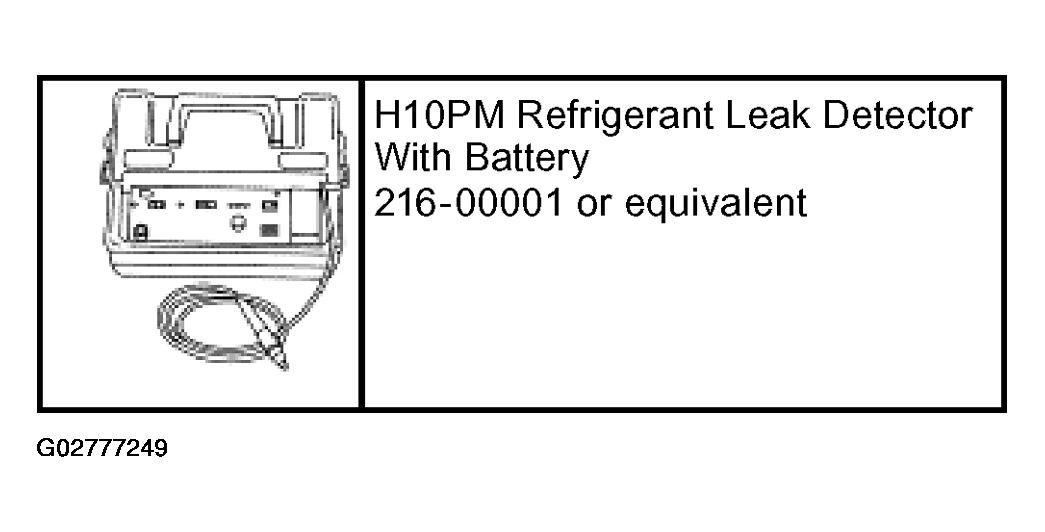

Fig 1: Identifying Special Service Tool(s)

Courtesy of FORD MOTOR CO.

CAUTION: Good ventilation is necessary in the area where electronic A/C leak testing is to be carried out. If the surrounding air is contaminated with refrigerant gas, the leak detector will indicate this gas all the time. Odors from other chemicals such as antifreeze, diesel fuel, disc brake cleaner or other cleaning solvents can cause the same problem. Using a fan to ventilate the area to be tested before proceeding with the leak detection procedure is helpful in removing small traces of contamination from the air, but the fan should be turned off during actual testing.

NOTE: The system pressure should be between 413-551 kPa (60-80 psi) at 24°C (75°F) with the engine off.

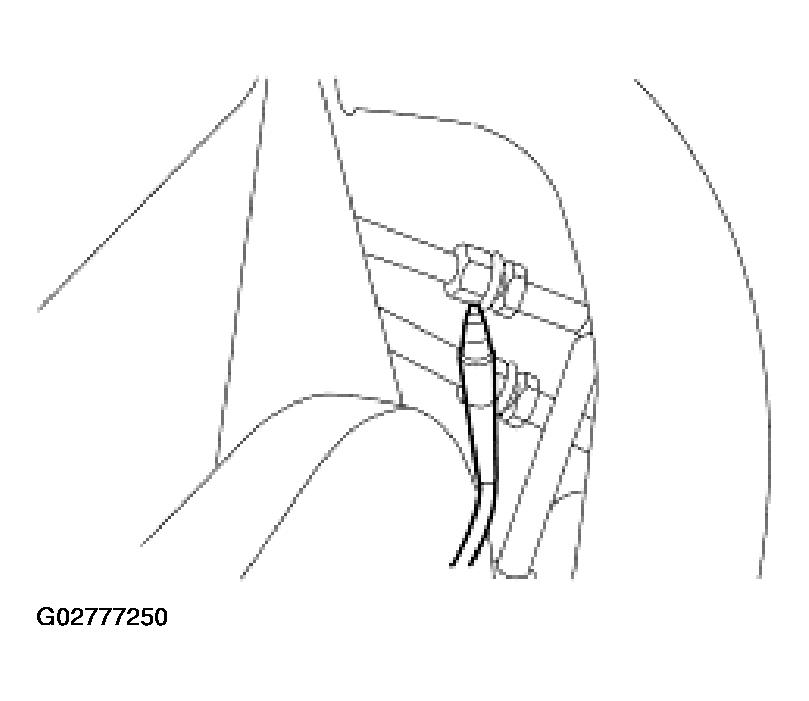

Fig 2: Checking Leak Test Refrigerant System Using Refrigerant Leak Detector

Courtesy of FORD MOTOR CO.

Leak test the refrigerant system using the Refrigerant Leak Detector. Follow the instructions included with the leak detector for handling and operation techniques.
If a leak is found, recover the refrigerant. Refer to AIR CONDITIONING (A/C) SYSTEM RECOVERY, EVACUATION AND CHARGING .
- Repair the system.
- Test the system for normal operation.

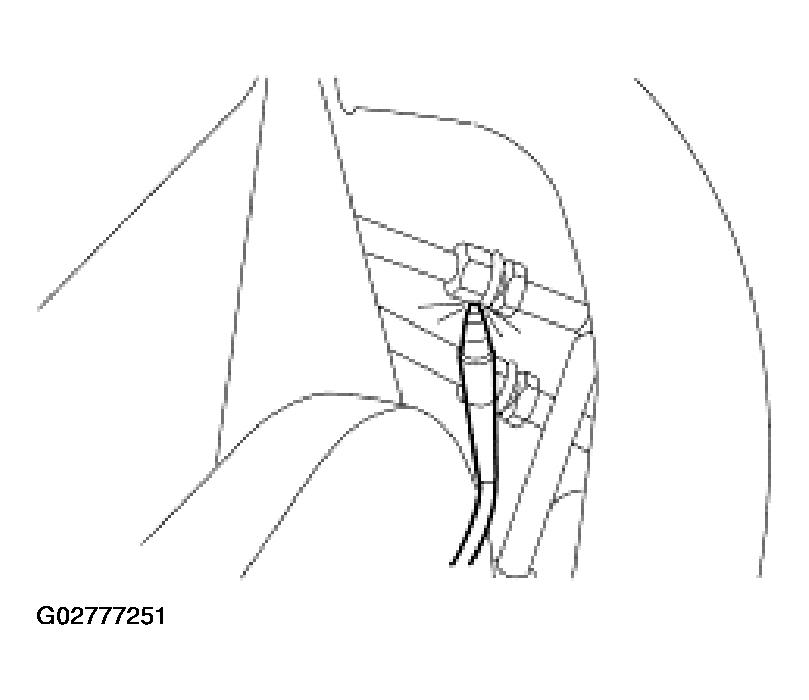

  Fig 3: Checking System For Normal Operation
  Courtesy of FORD MOTOR CO.
