Symptom Chart

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

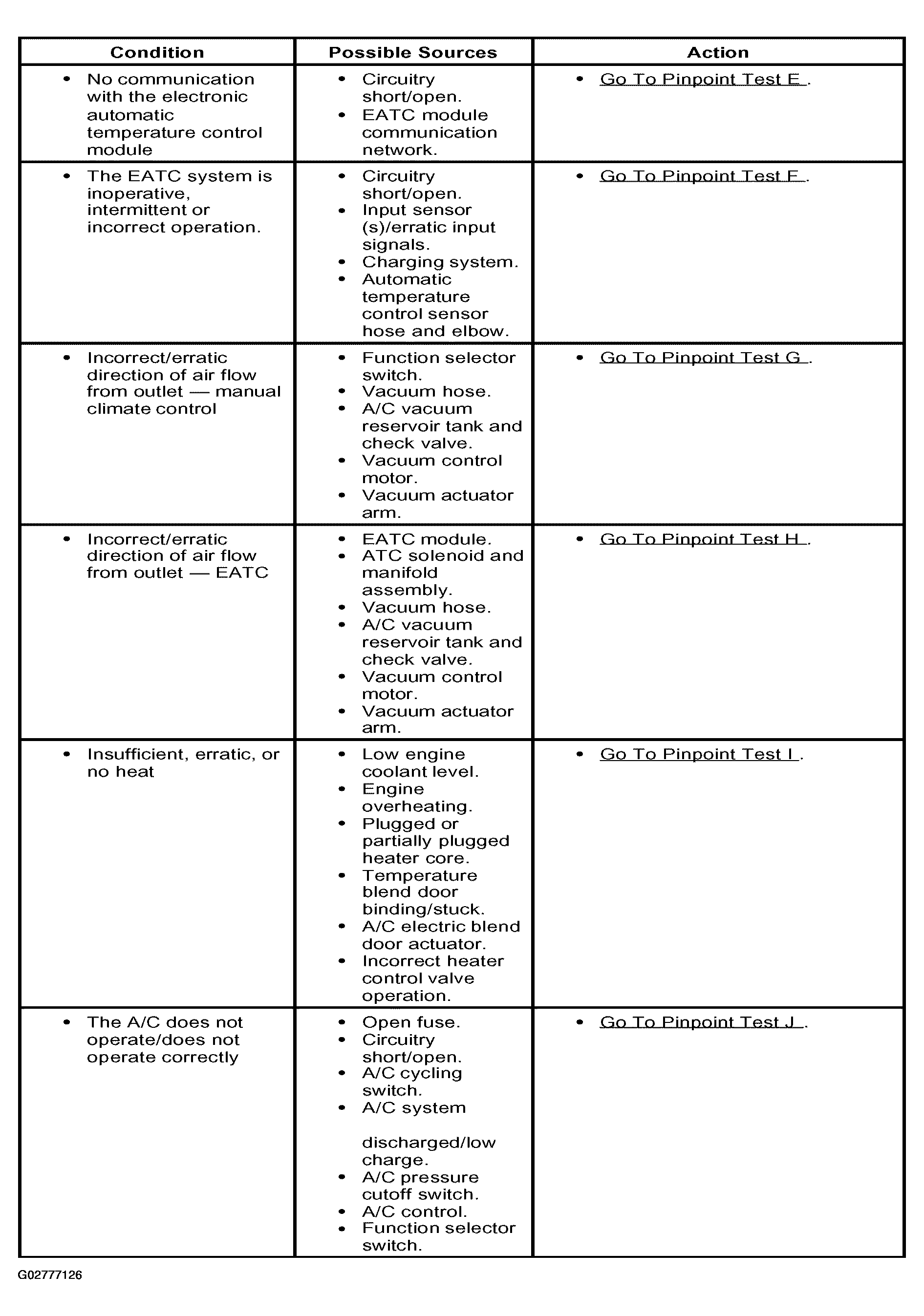

Fig 1: Problem Symptom Chart (1 Of 3)
G02777126Courtesy of FORD MOTOR CO.

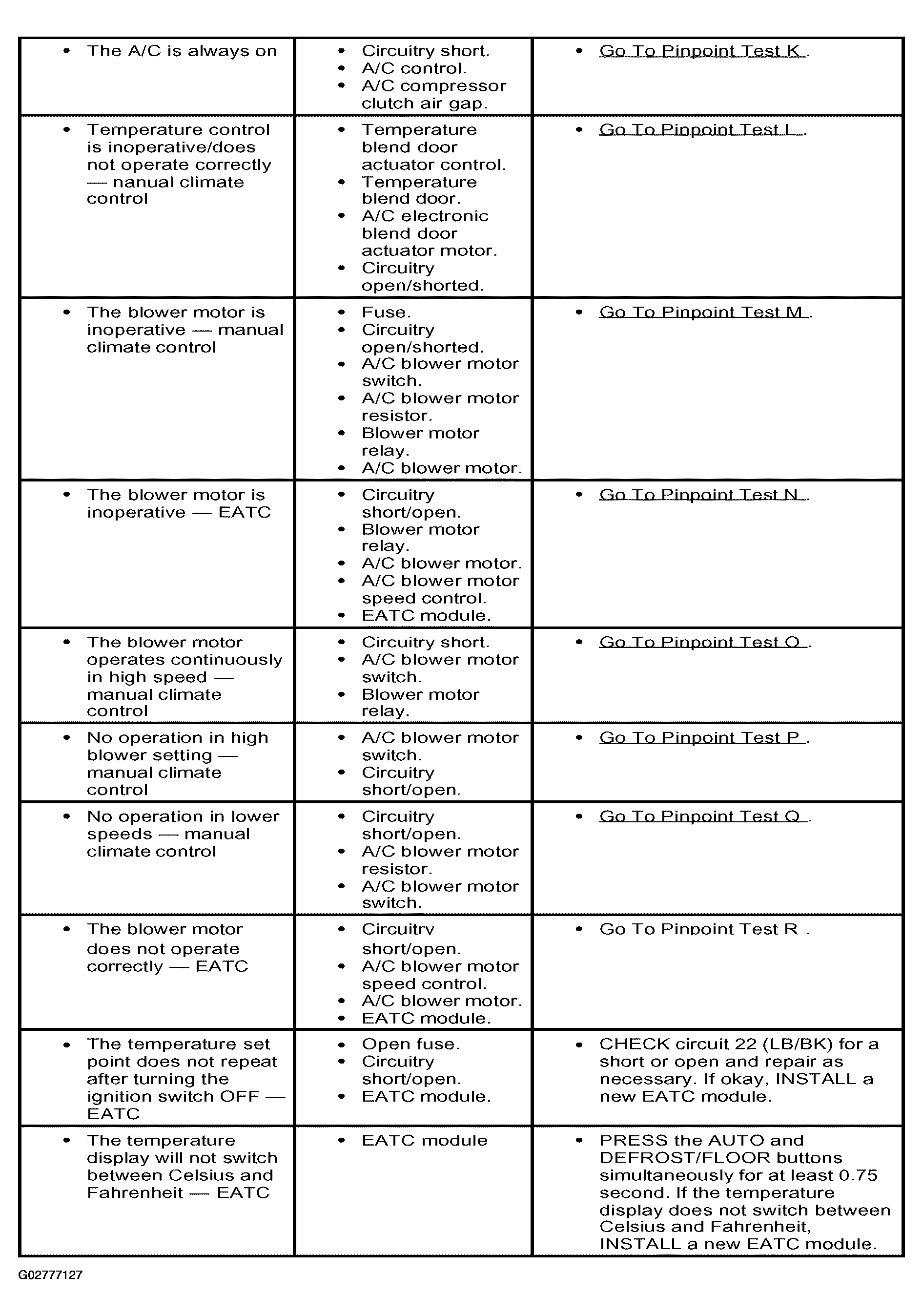

Fig 2: Problem Symptom Chart (2 Of 3)
G02777127Courtesy of FORD MOTOR CO.

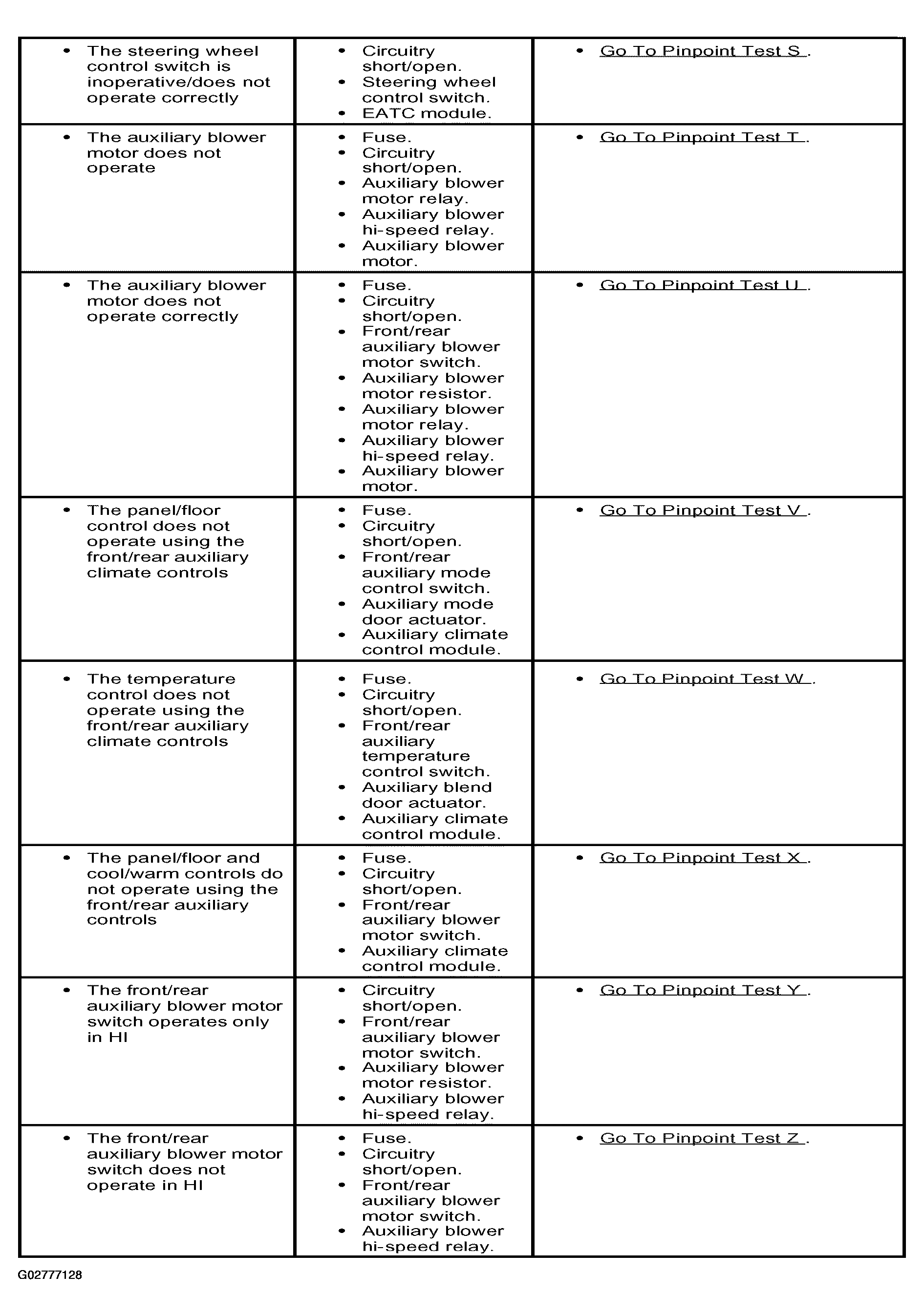

Fig 3: Problem Symptom Chart (3 Of 3)
G02777128Courtesy of FORD MOTOR CO.
