Pinpoint Test Z: The Front/Rear Auxiliary Blower Motor Switch Does Not Operate In Hi

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

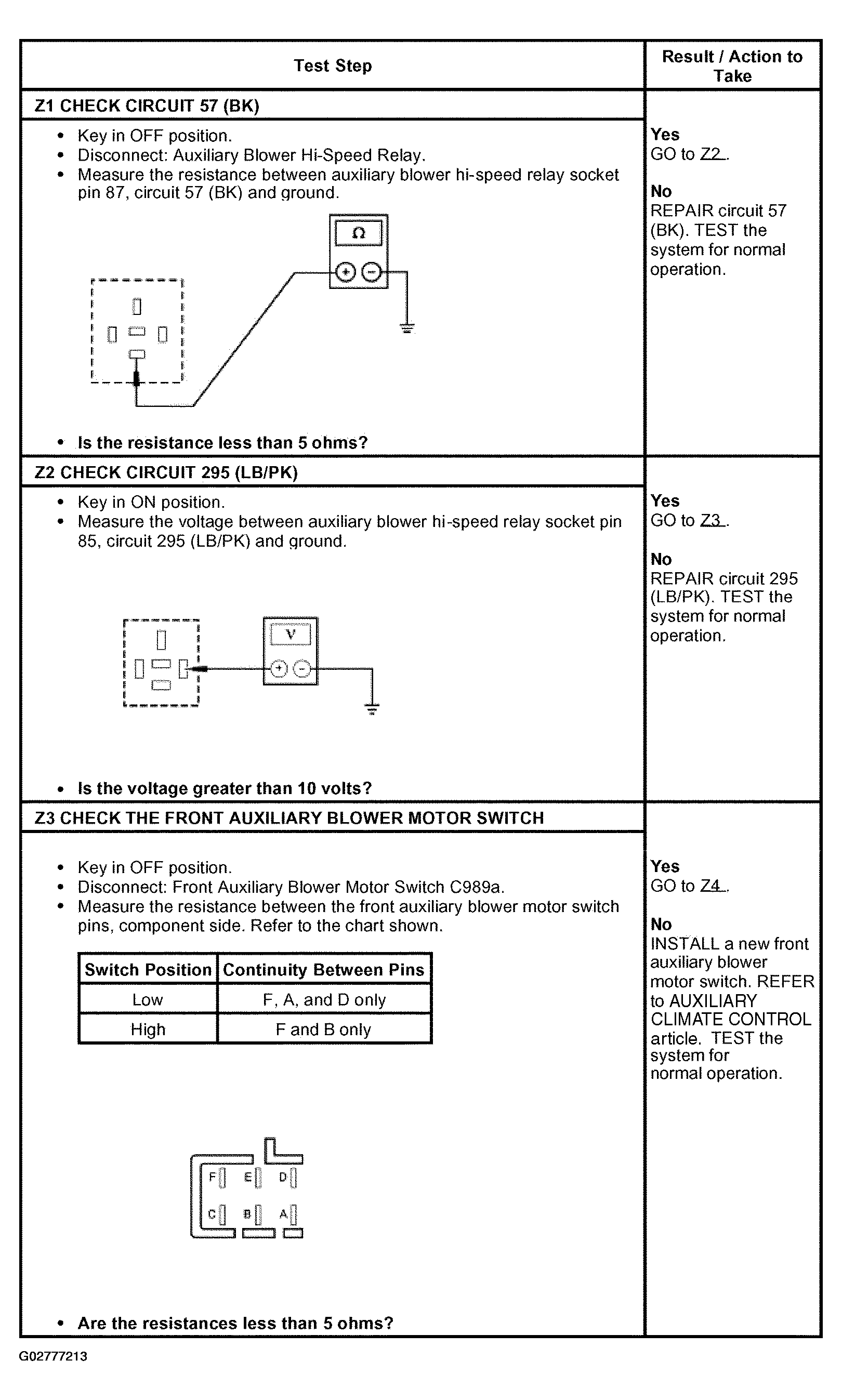

Fig 1: Pinpoint Test Z: Front/Rear Auxiliary Blower Motor Switch Does Not Operate In Hi (Step Z1 To Z3)
G02777213Courtesy of FORD MOTOR CO.

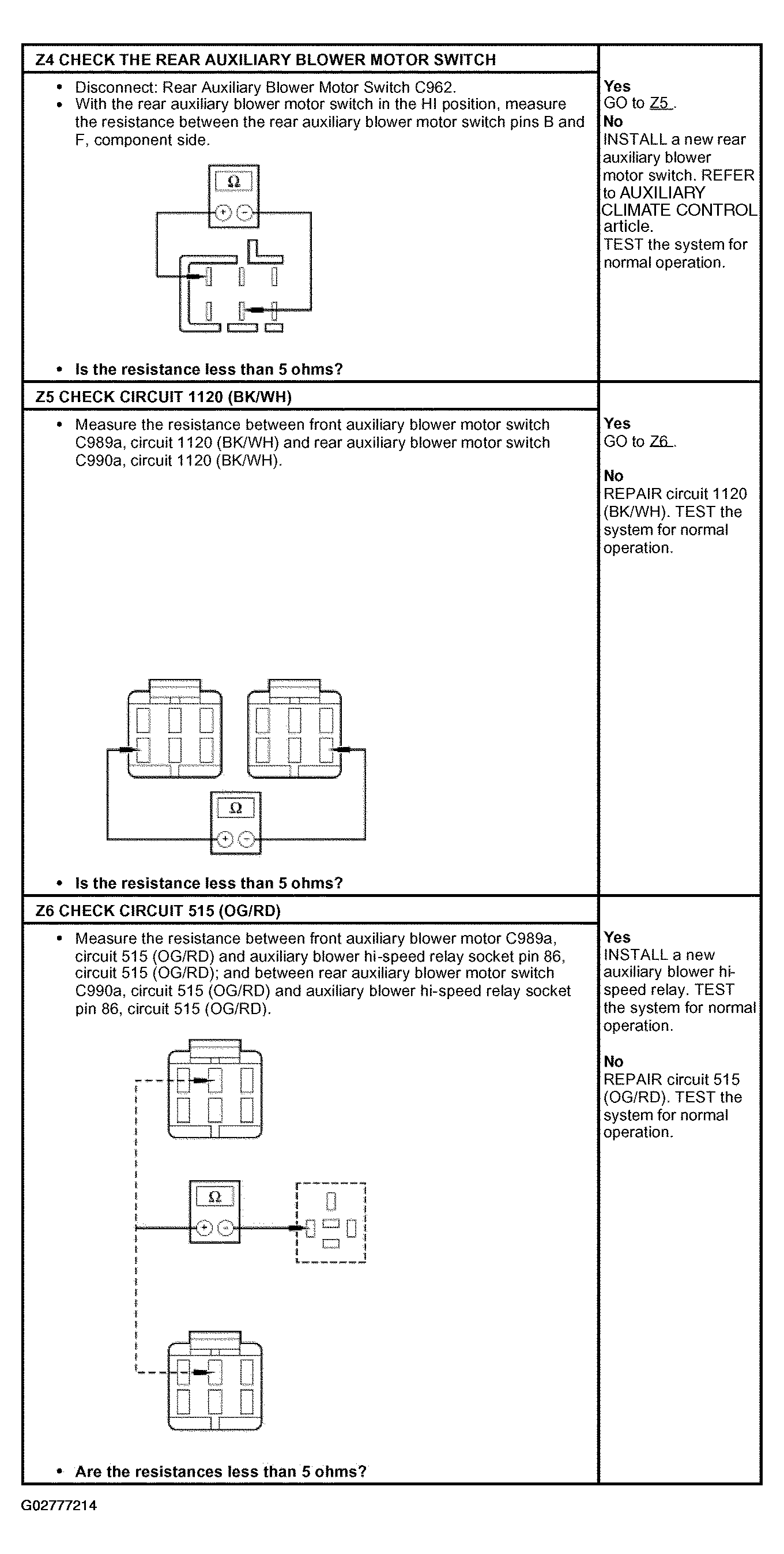

Fig 2: Pinpoint Test Z: Front/Rear Auxiliary Blower Motor Switch Does Not Operate In Hi (Step Z4 To Z6)
G02777214Courtesy of FORD MOTOR CO.
