Pinpoint Test V: The Panel/Floor Control Does Not Operate Using The Front/Rear Auxiliary Climate Controls

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

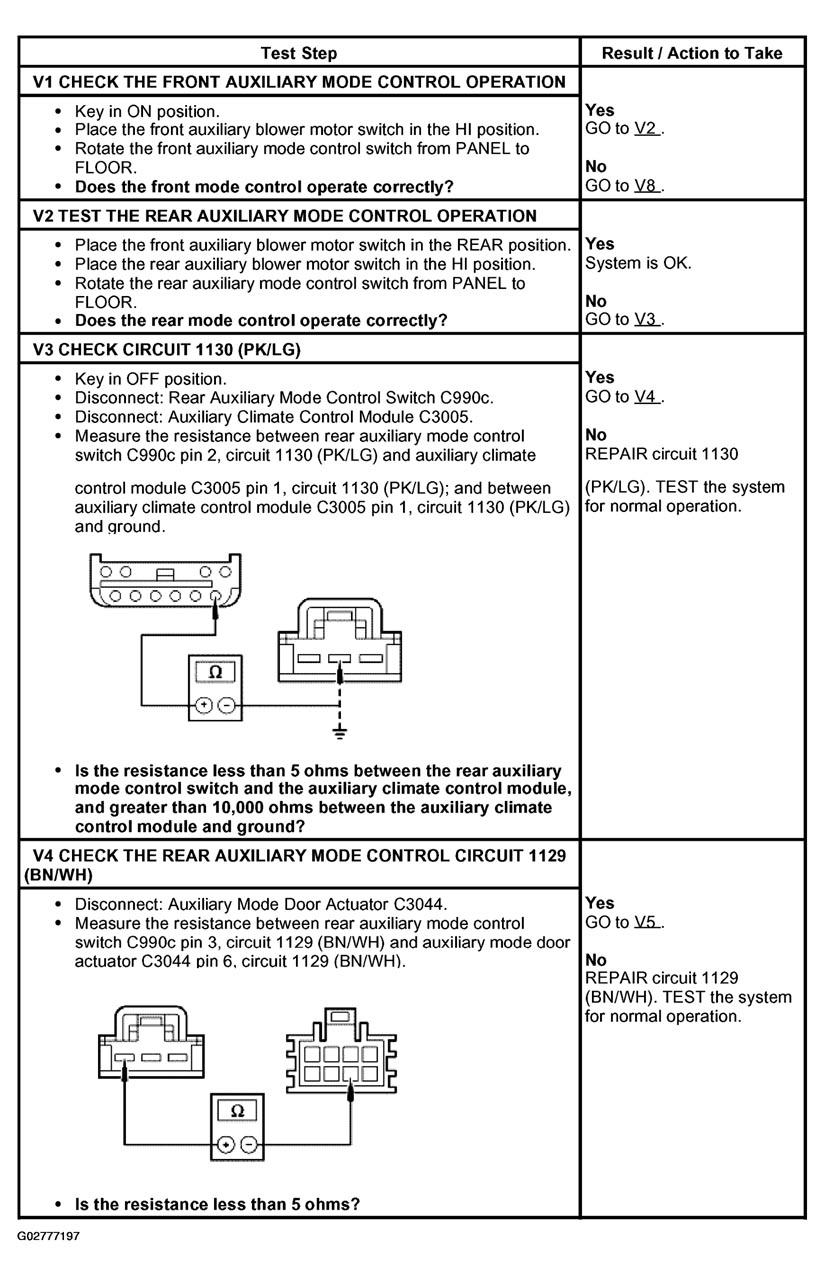

Fig 1: Pinpoint Test V: Panel/Floor Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (Step V1 To V4)
G02777197Courtesy of FORD MOTOR CO.

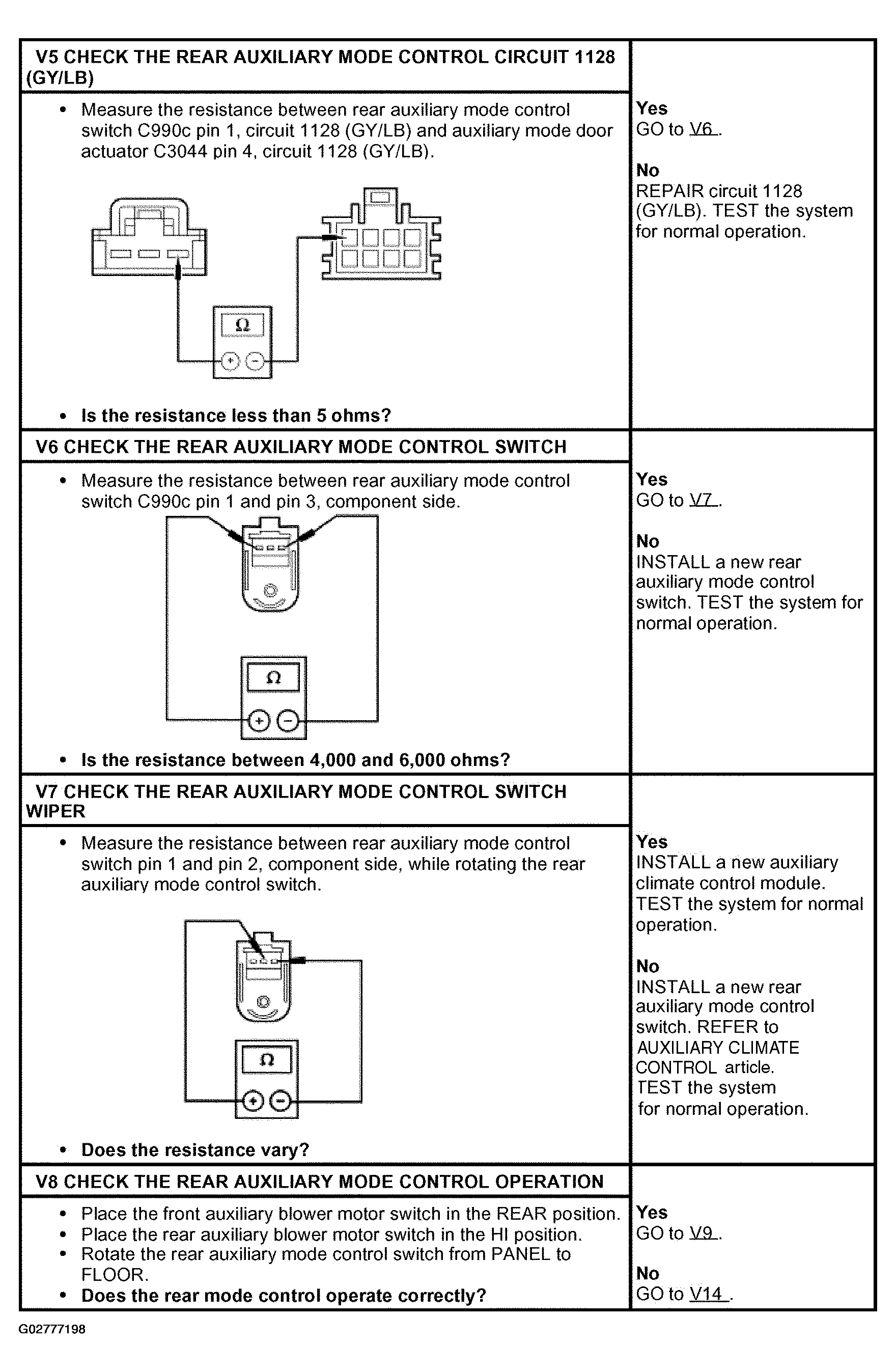

Fig 2: Pinpoint Test V: Panel/Floor Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (Step V5 To V8)
G02777198Courtesy of FORD MOTOR CO.

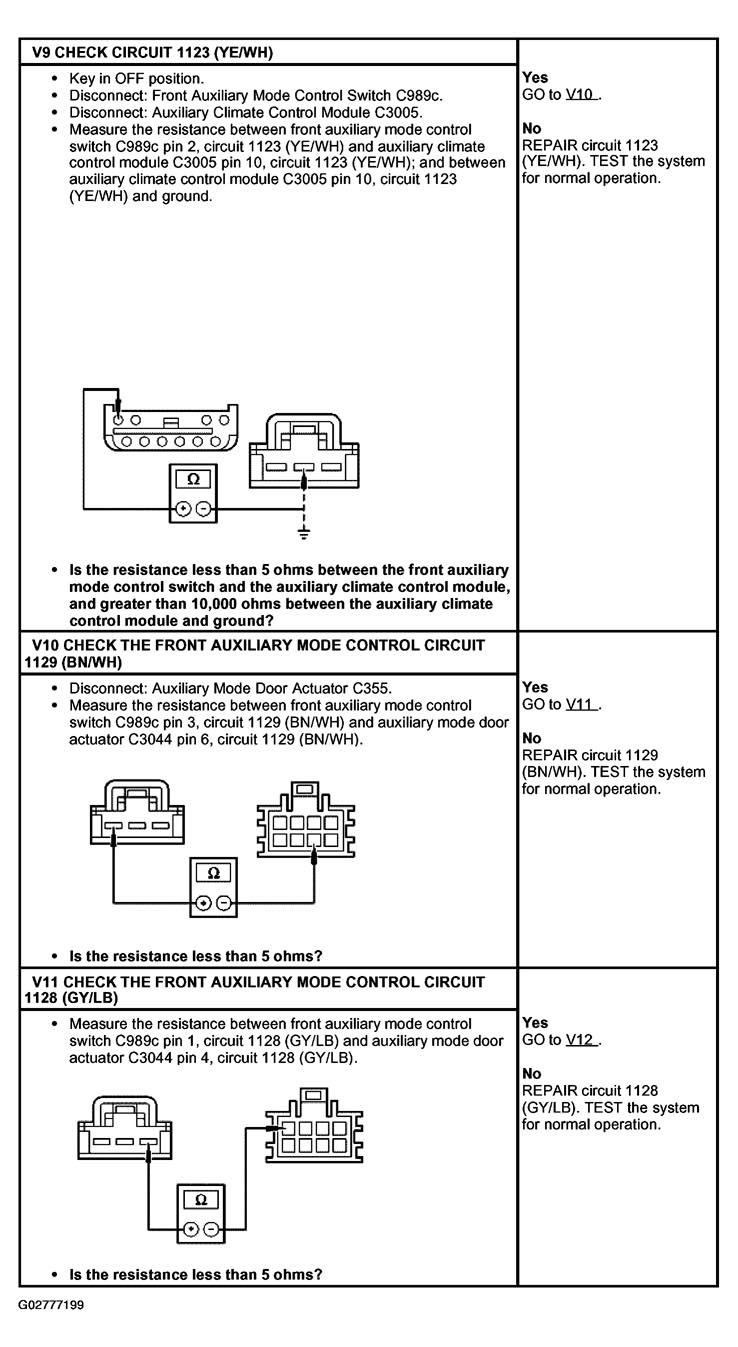

Fig 3: Pinpoint Test V: Panel/Floor Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (Step V9 To V11)
G02777199Courtesy of FORD MOTOR CO.

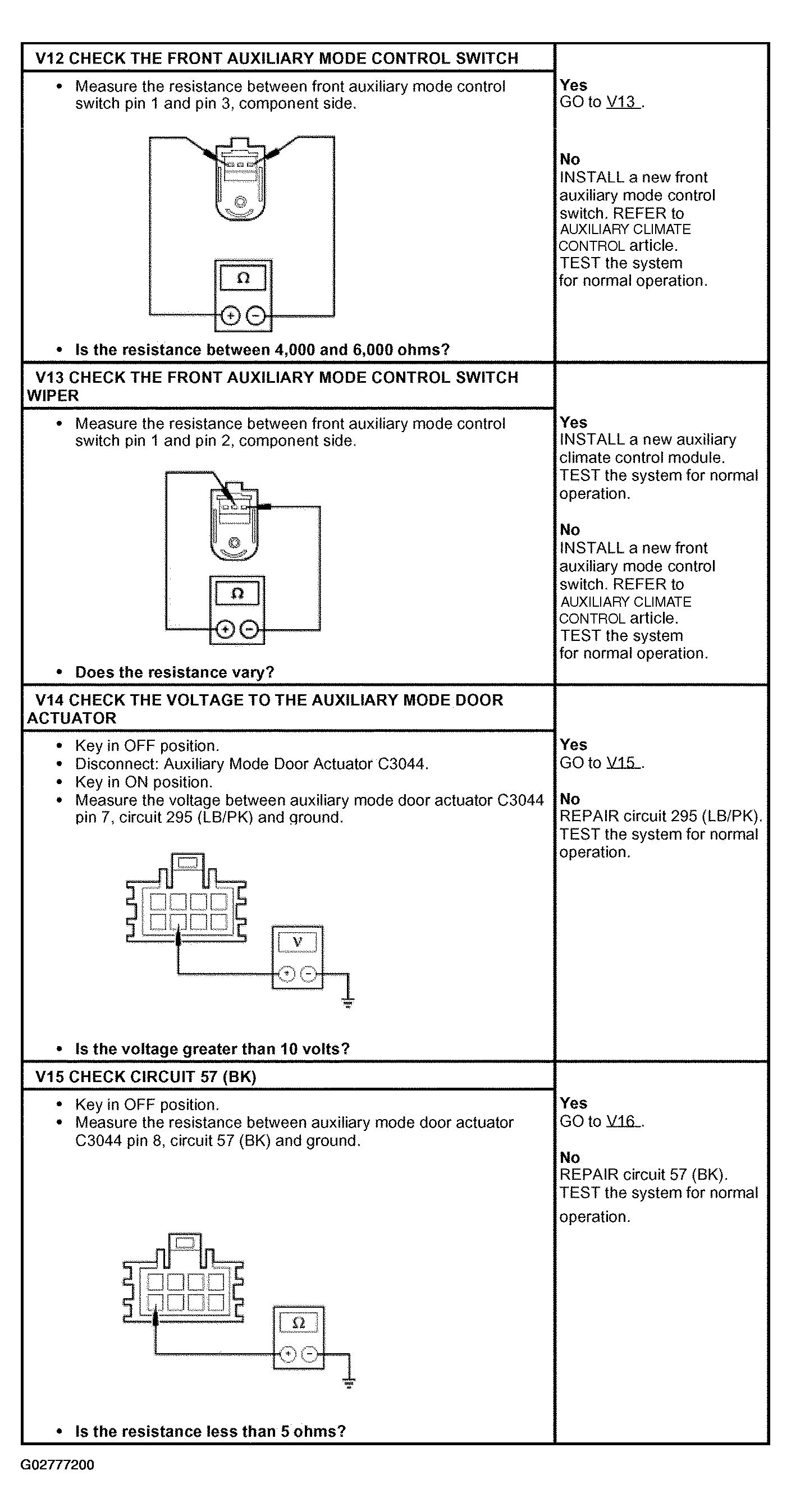

Fig 4: Pinpoint Test V: Panel/Floor Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (Step V12 To V15)
G02777200Courtesy of FORD MOTOR CO.

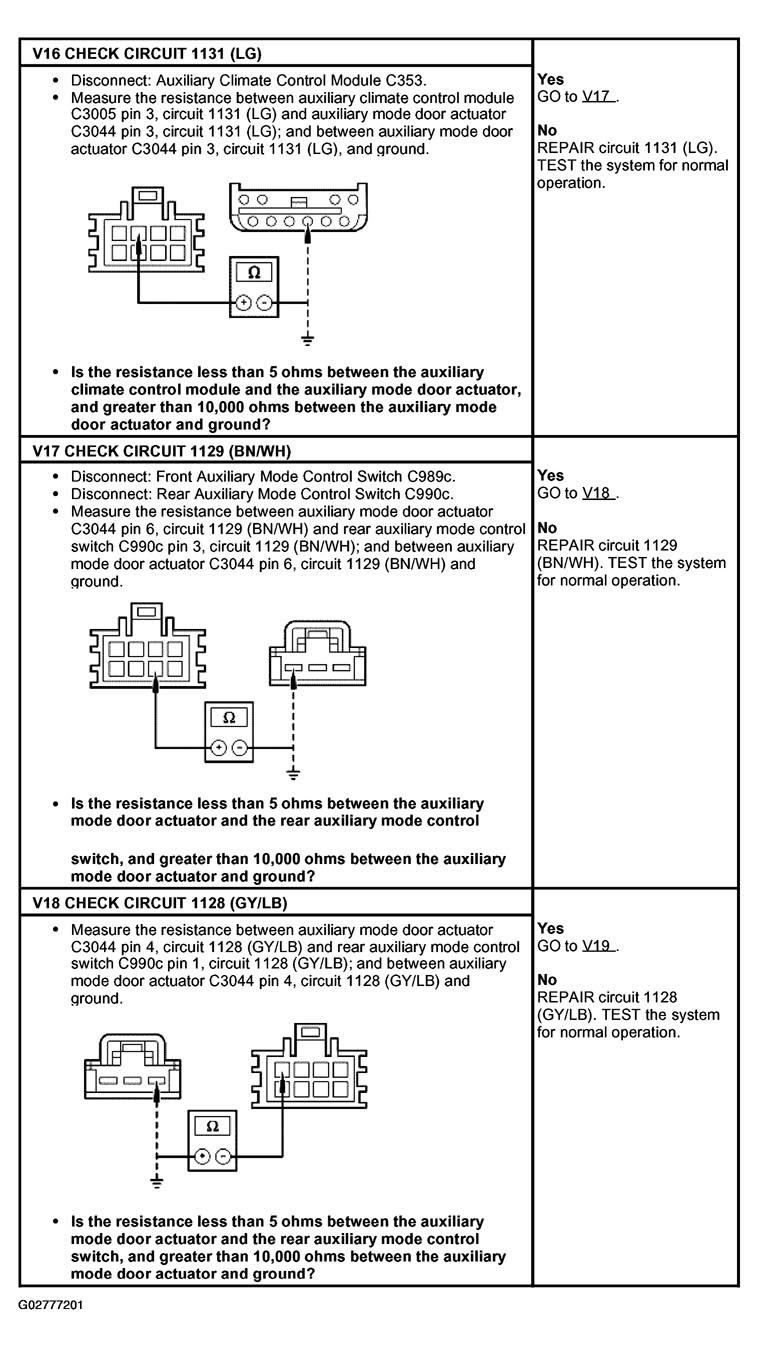

Fig 5: Pinpoint Test V: Panel/Floor Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (Step V16 To V18)
G02777201Courtesy of FORD MOTOR CO.

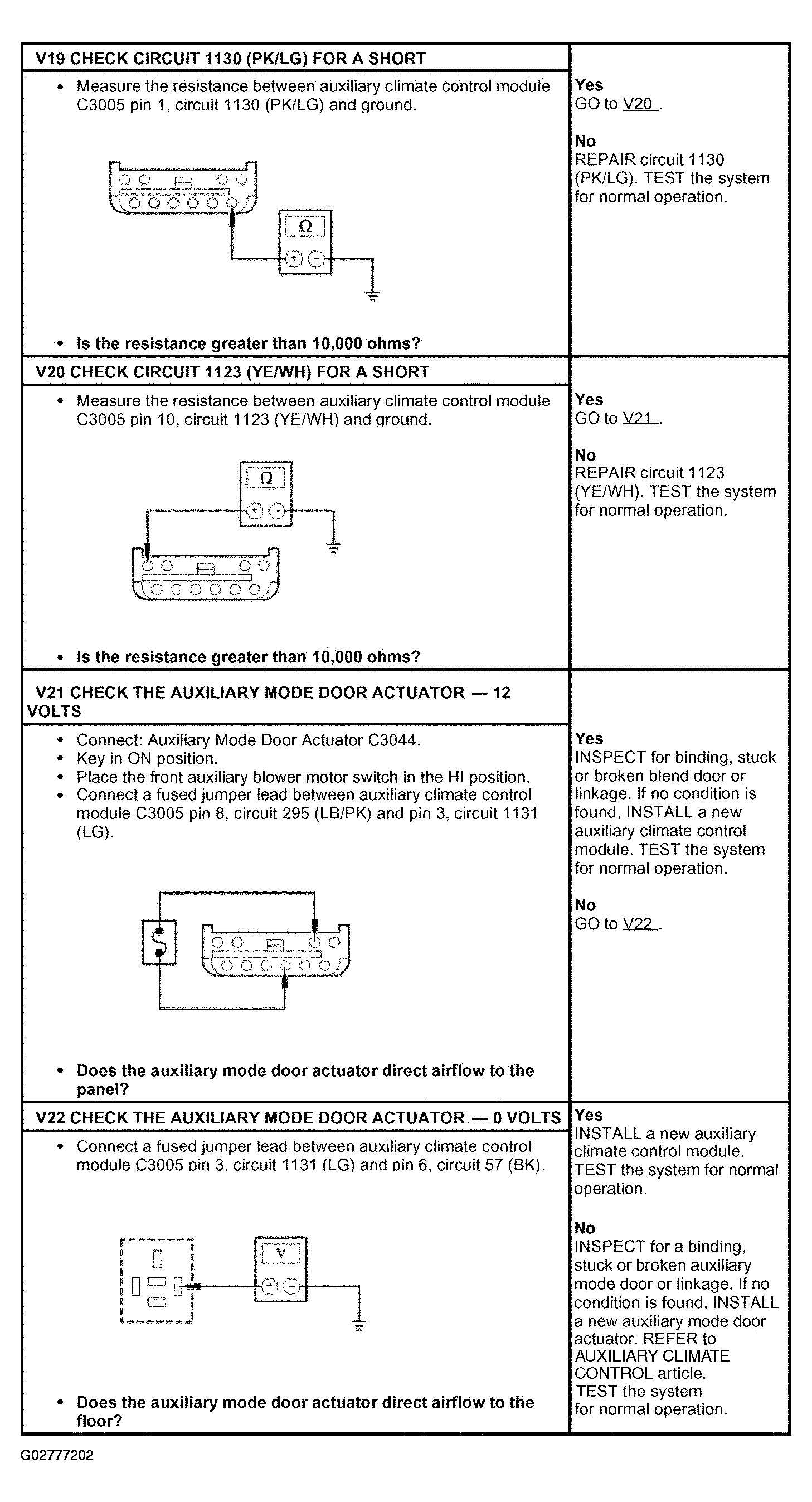

Fig 6: Pinpoint Test V: Panel/Floor Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (Step V19 To V22)
G02777202Courtesy of FORD MOTOR CO.
