Pinpoint Test N: The Blower Motor Is Inoperative - EATC

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

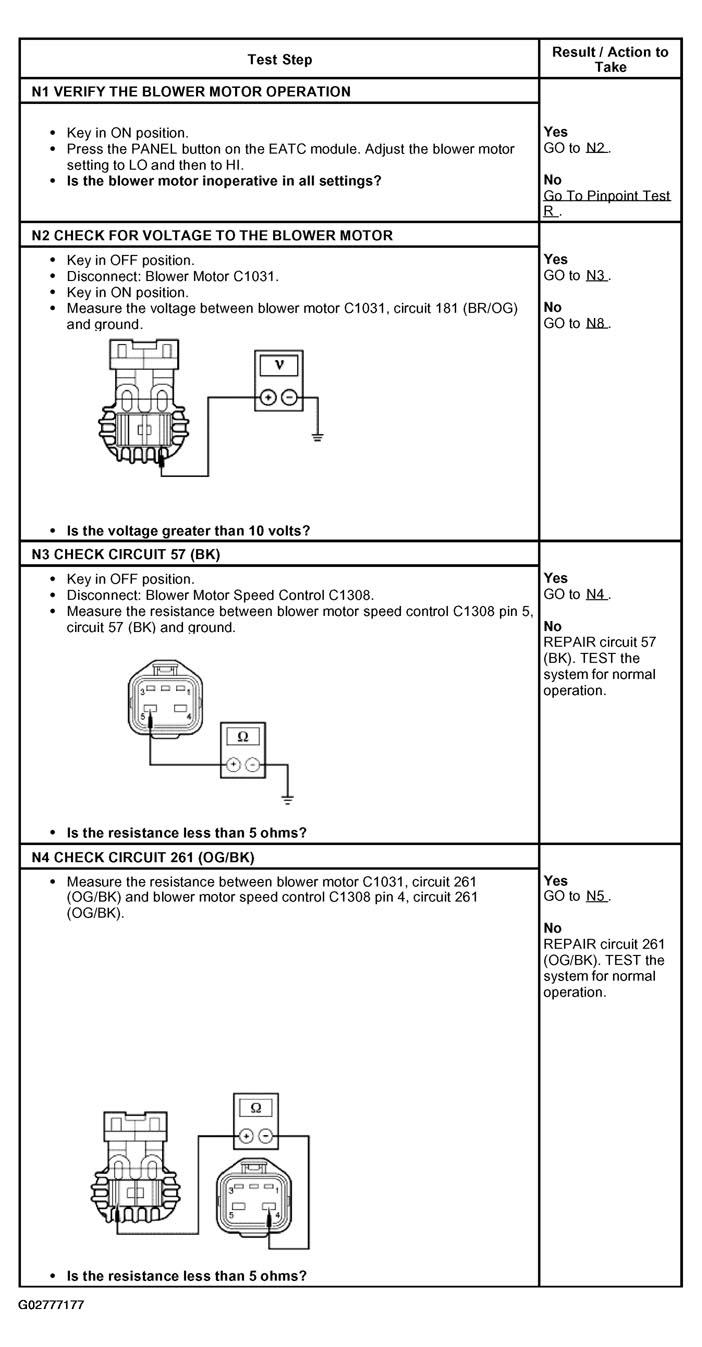

Fig 1: Pinpoint Test N: Blower Motor Is Inoperative - EATC (Step N1 To N4)
G02777177Courtesy of FORD MOTOR CO.

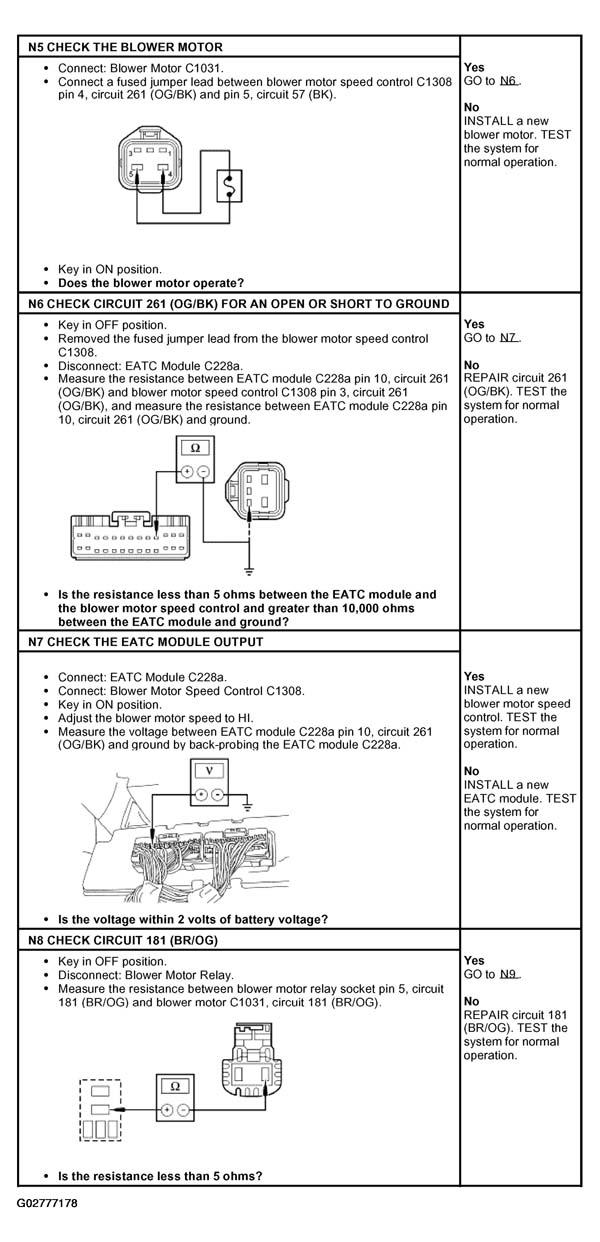

Fig 2: Pinpoint Test N: Blower Motor Is Inoperative - EATC (Step N5 To N8)
G02777178Courtesy of FORD MOTOR CO.

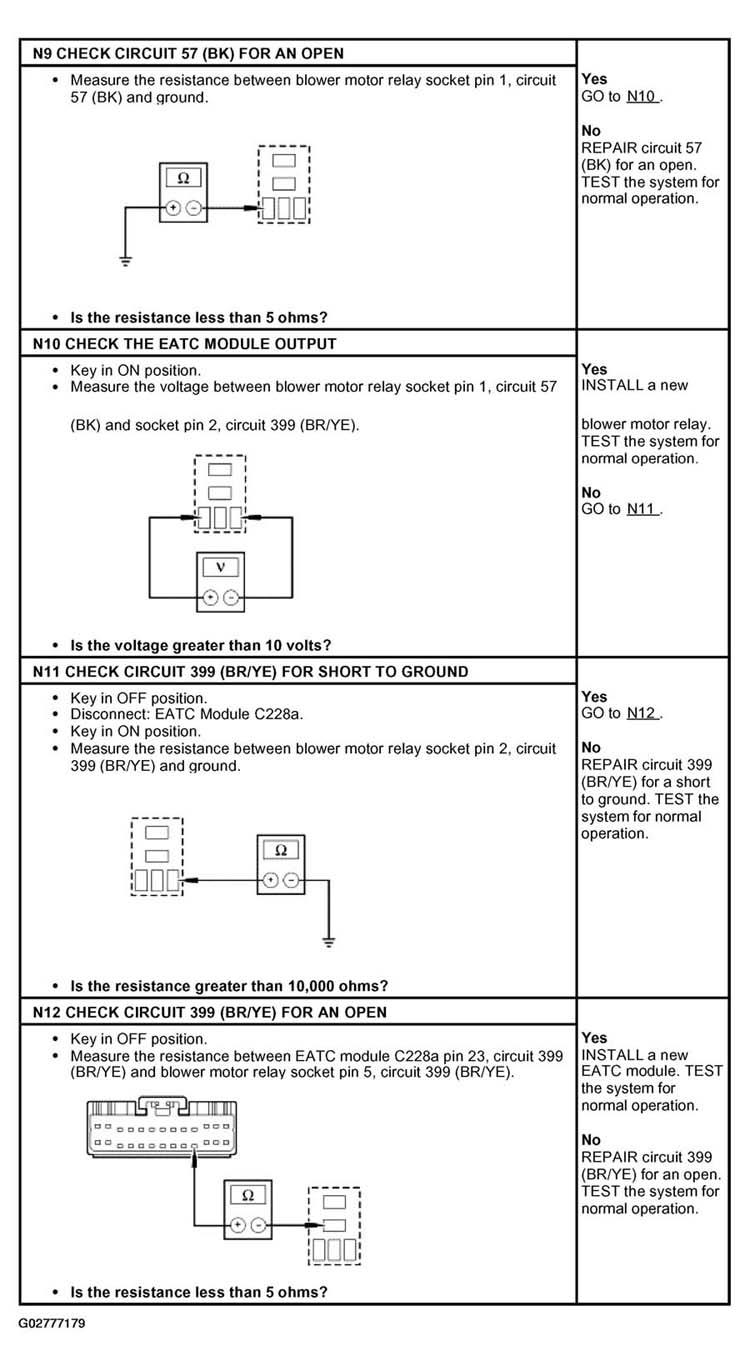

Fig 3: Pinpoint Test N: Blower Motor Is Inoperative - EATC (Step N9 To N12)
G02777179Courtesy of FORD MOTOR CO.
