Pinpoint Test M: The Blower Motor Is Inoperative - Manual Climate Control

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

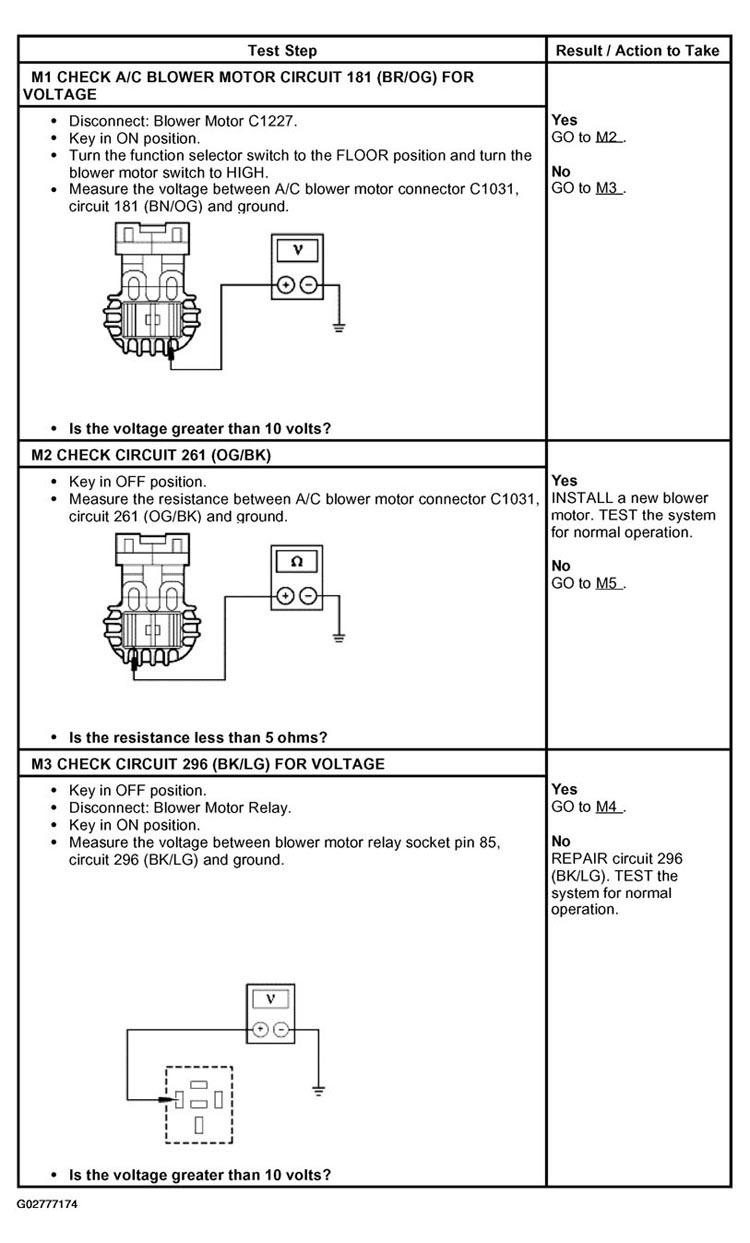

Fig 1: Pinpoint Test M: Blower Motor Is Inoperative - Manual Climate Control (Step M1 To M3)

Courtesy of FORD MOTOR CO.

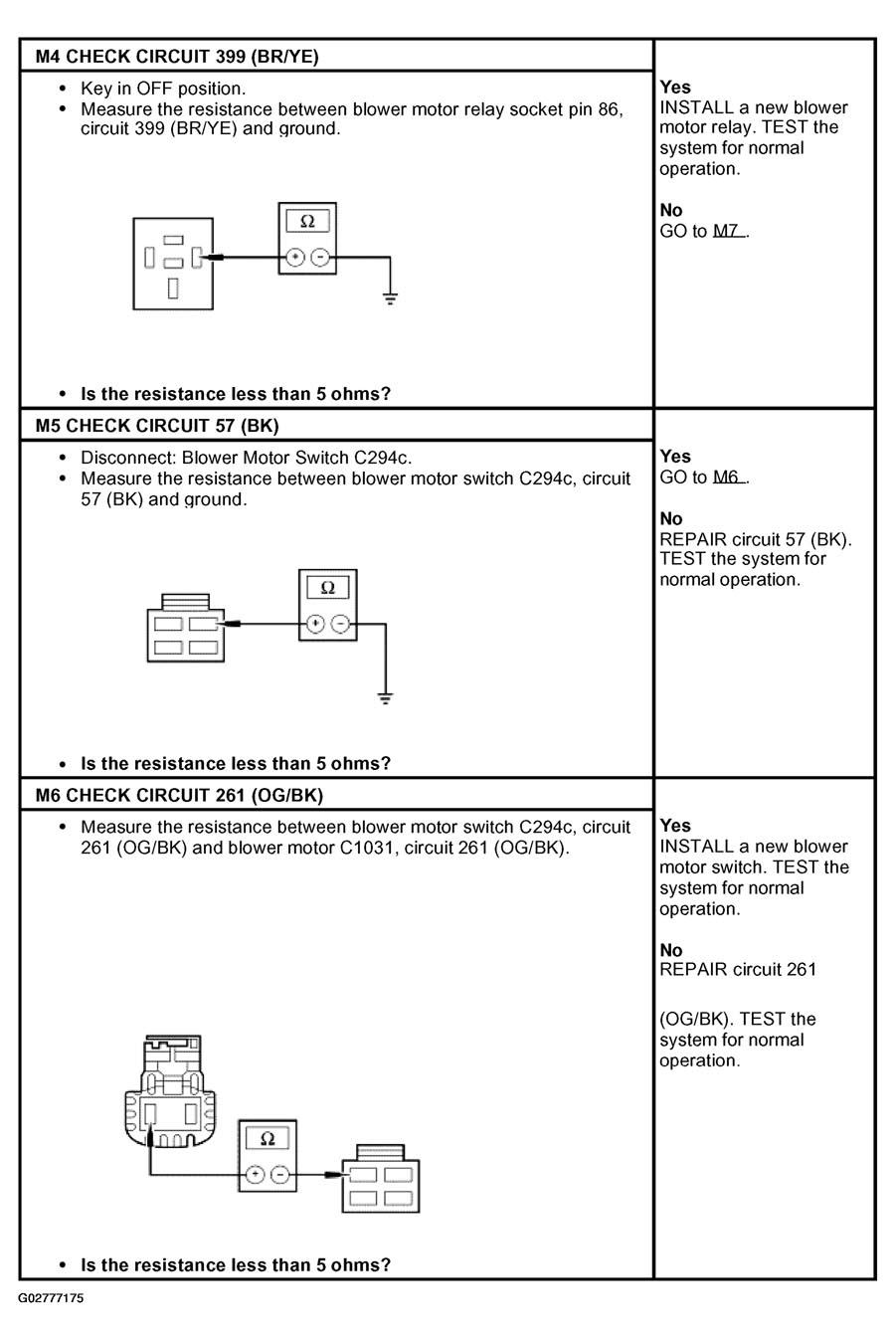

Fig 2: Pinpoint Test M: Blower Motor Is Inoperative - Manual Climate Control (Step M4 To M6)

Courtesy of FORD MOTOR CO.

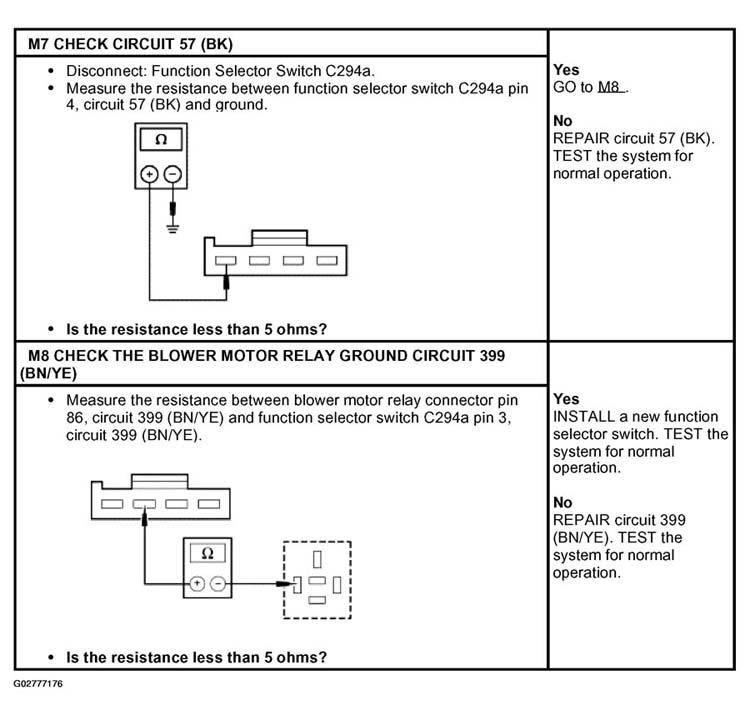

Fig 3: Pinpoint Test M: Blower Motor Is Inoperative - Manual Climate Control (Step M7 To M8)

Courtesy of FORD MOTOR CO.
