Pinpoint Test K: The A/C Is Always On

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

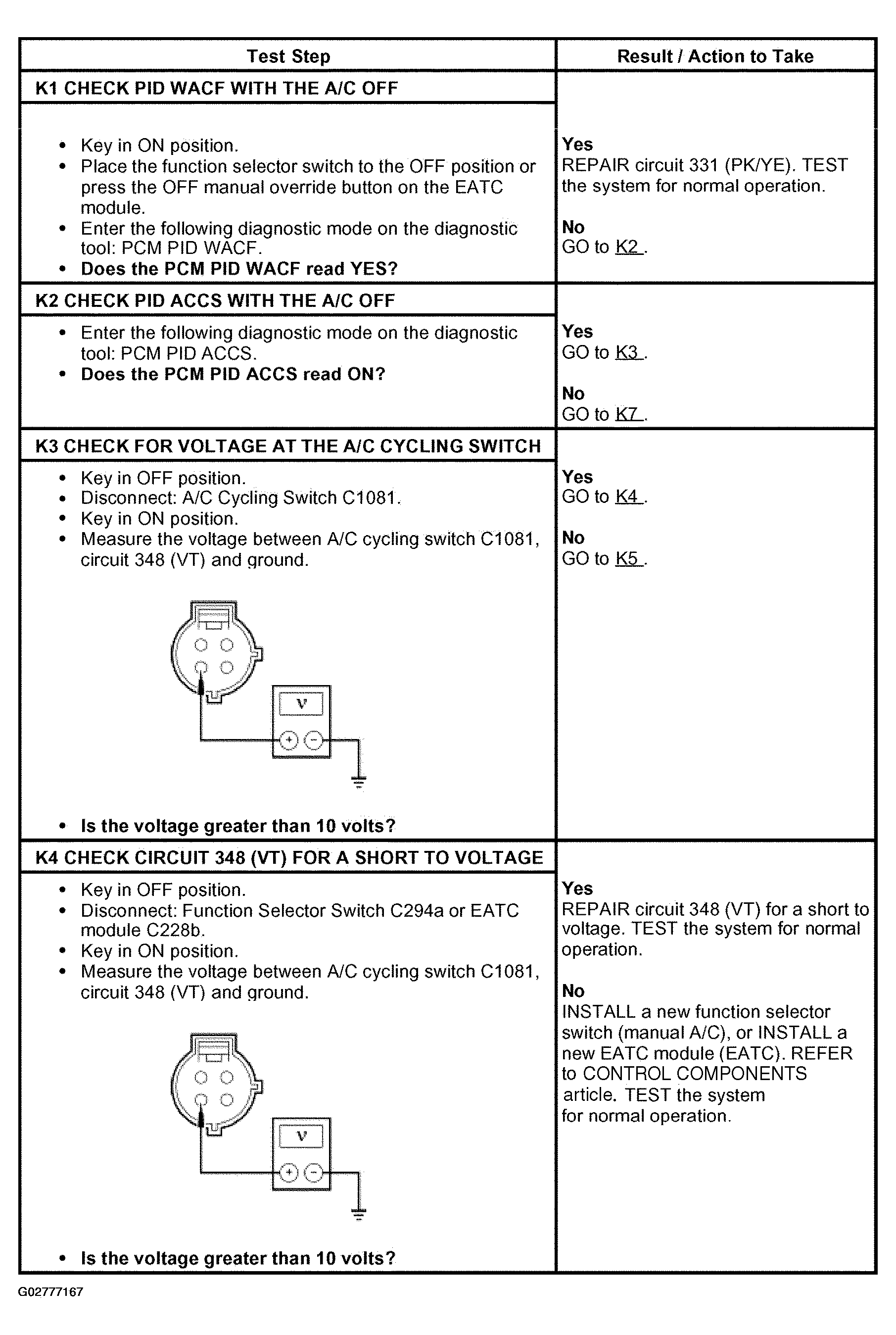

Fig 1: Pinpoint Test K: A/C Is Always On (Step K1 To K4)
G02777167Courtesy of FORD MOTOR CO.

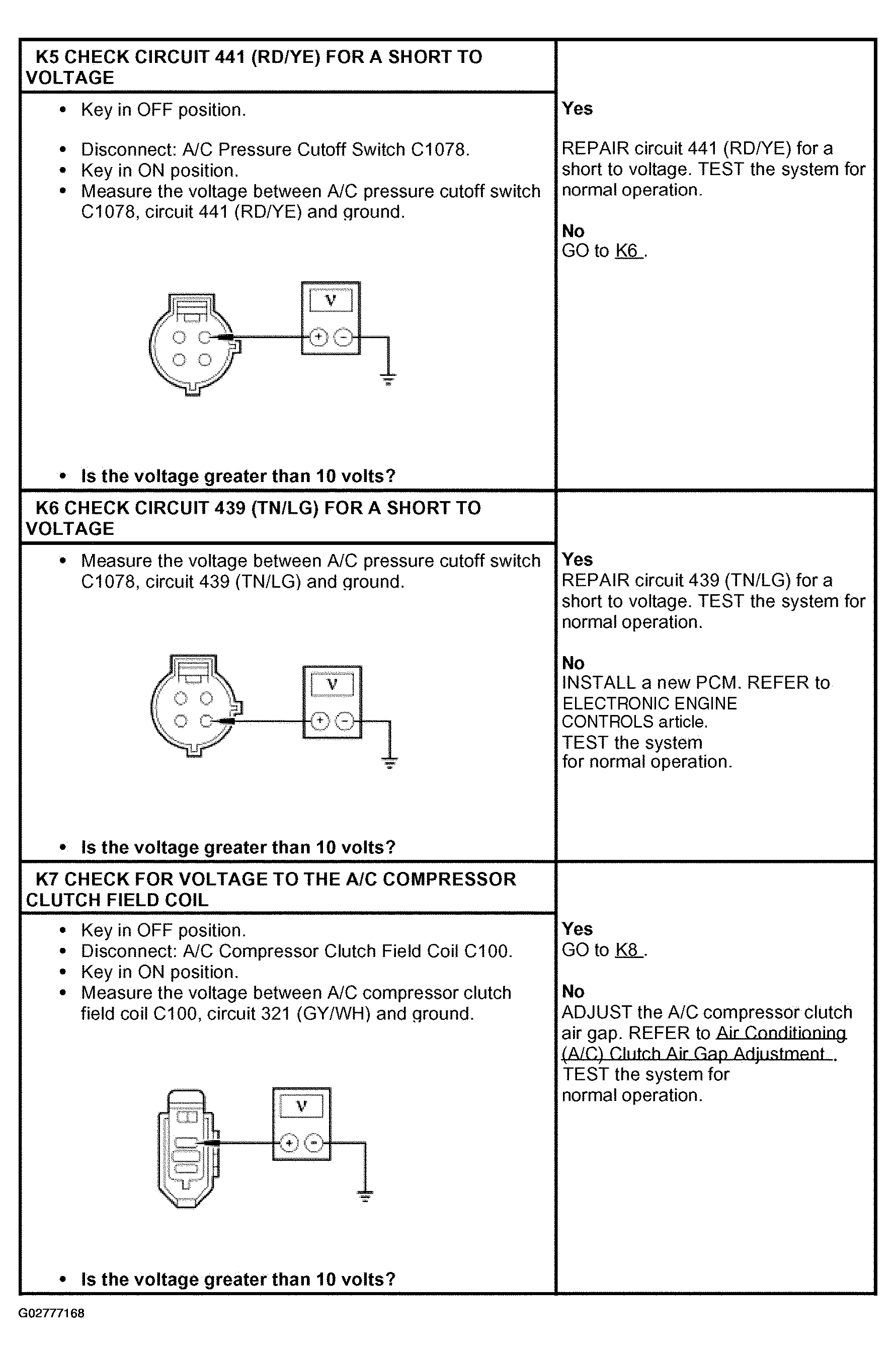

Fig 2: Pinpoint Test K: A/C Is Always On (Step K5 To K7)
G02777168Courtesy of FORD MOTOR CO.

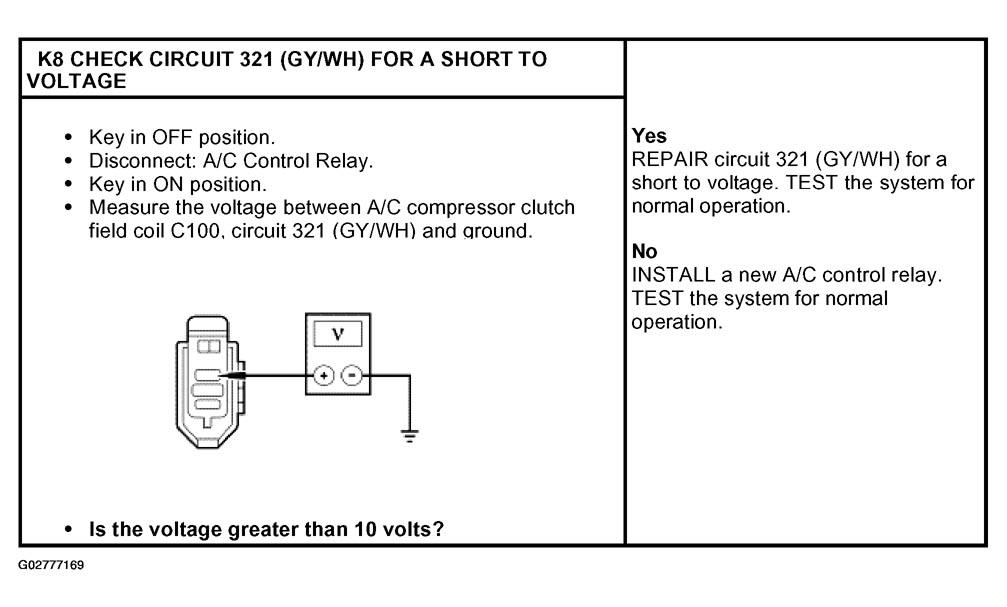

Fig 3: Pinpoint Test K: A/C Is Always On (Step K8)
G02777169Courtesy of FORD MOTOR CO.
