Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The air cleaner outlet tube must be securely sealed to prevent unmetered air from entering the engine.

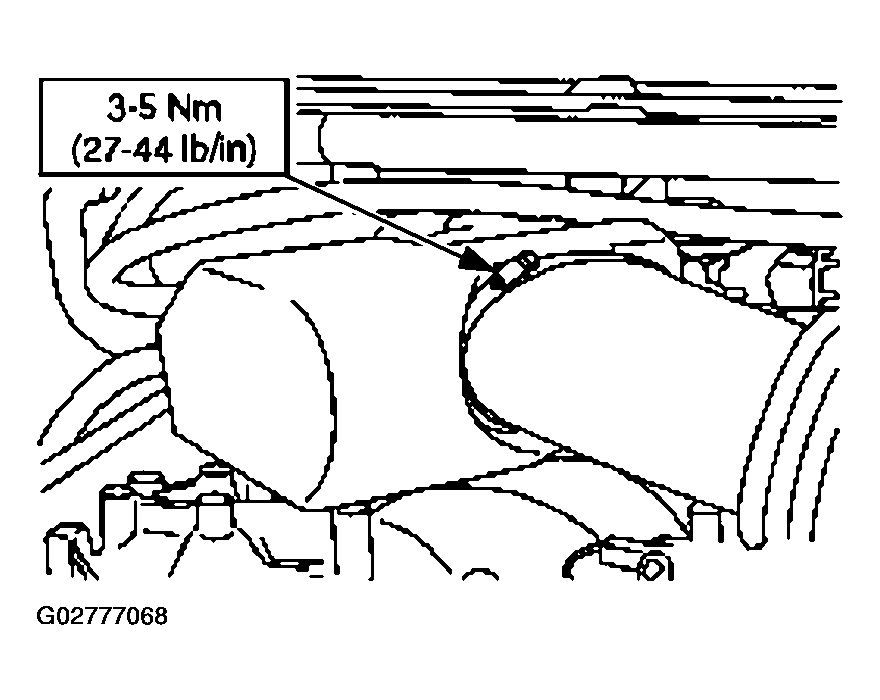

Fig 1: Disconnecting Air Cleaner Outlet Tube

Courtesy of FORD MOTOR CO.

Disconnect the air cleaner outlet tube from the throttle body.
Remove the accelerator control splash shield.
1. Remove the tab.
2. Remove the accelerator control splash shield.
Fig 2: Removing Accelerator Control Splash Shield
Courtesy of FORD MOTOR CO.
Disconnect the speed control cable.

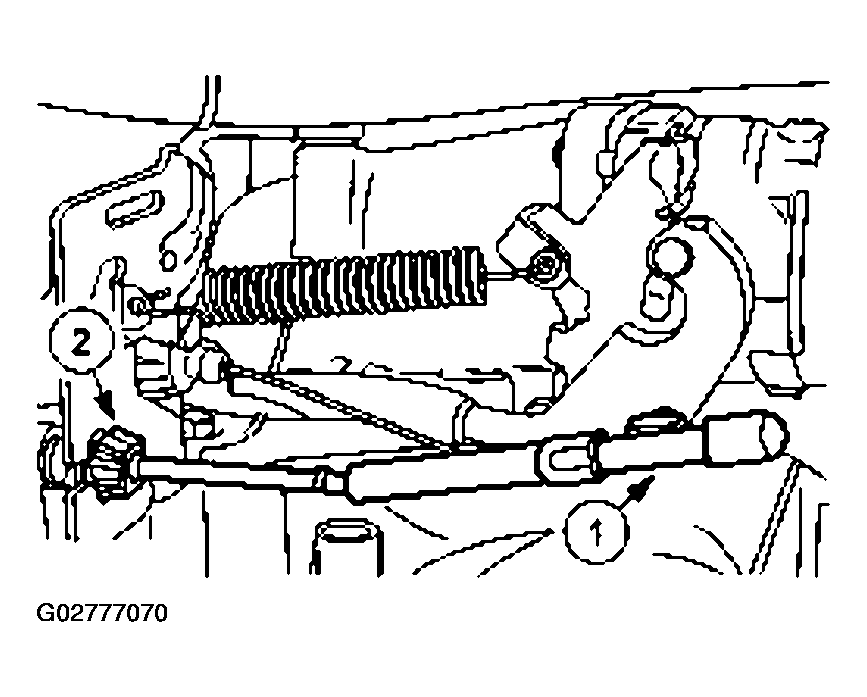

1. Disconnect the speed control cable from the throttle body cam and position aside.
2. Depress the retaining clips to remove the cable from the bracket.
Fig 3: Removing Cable From Bracket
Courtesy of FORD MOTOR CO.

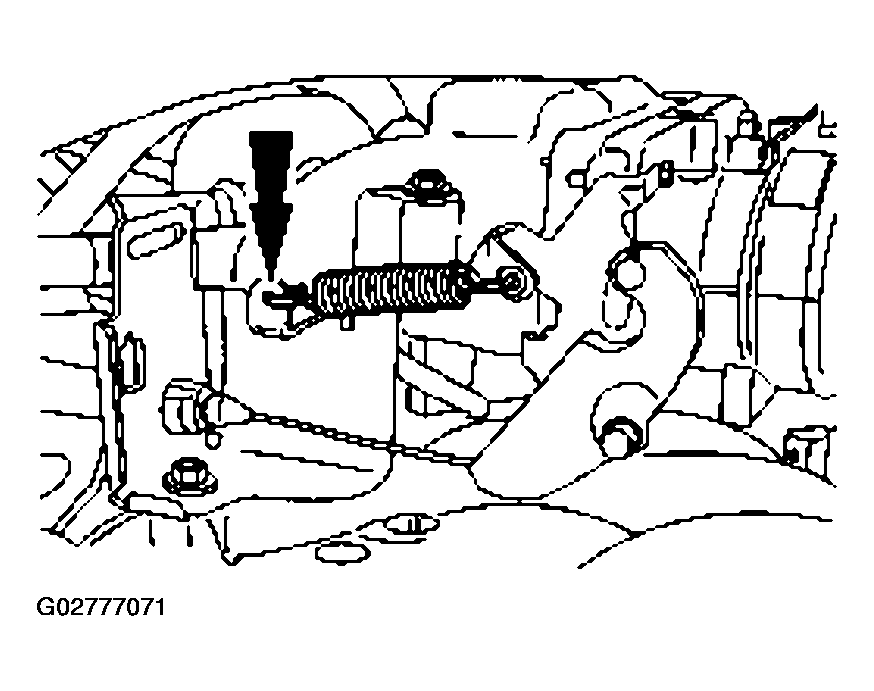

Disconnect the throttle return spring.

Fig 4: Disconnecting Throttle Return Spring
Courtesy of FORD MOTOR CO.

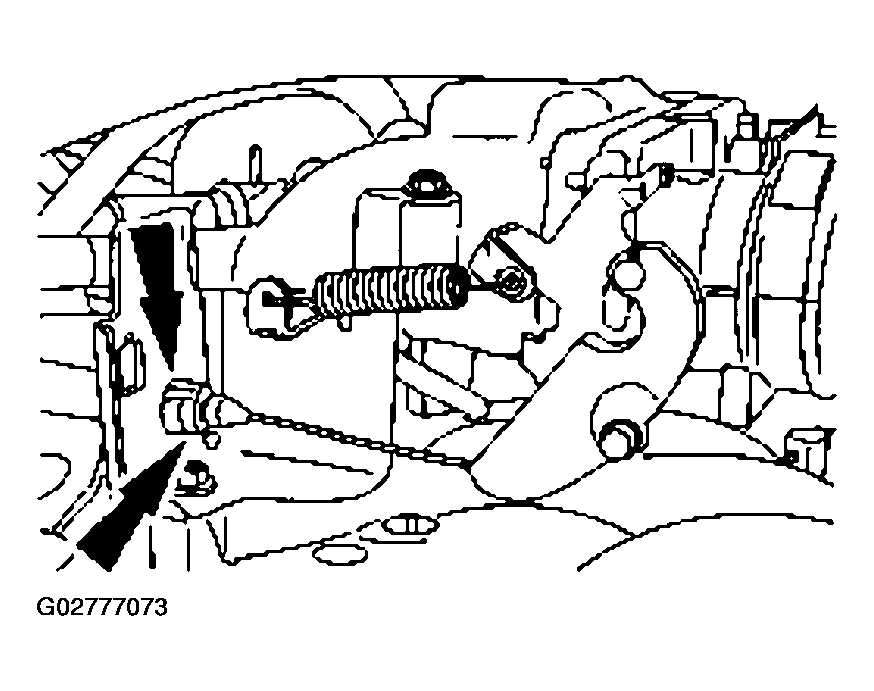

Disconnect the accelerator cable from the throttle body lever.
1. Rotate the throttle body lever.
2. Disconnect the accelerator cable.
Fig 5: Disconnecting Accelerator Cable
Courtesy of FORD MOTOR CO.

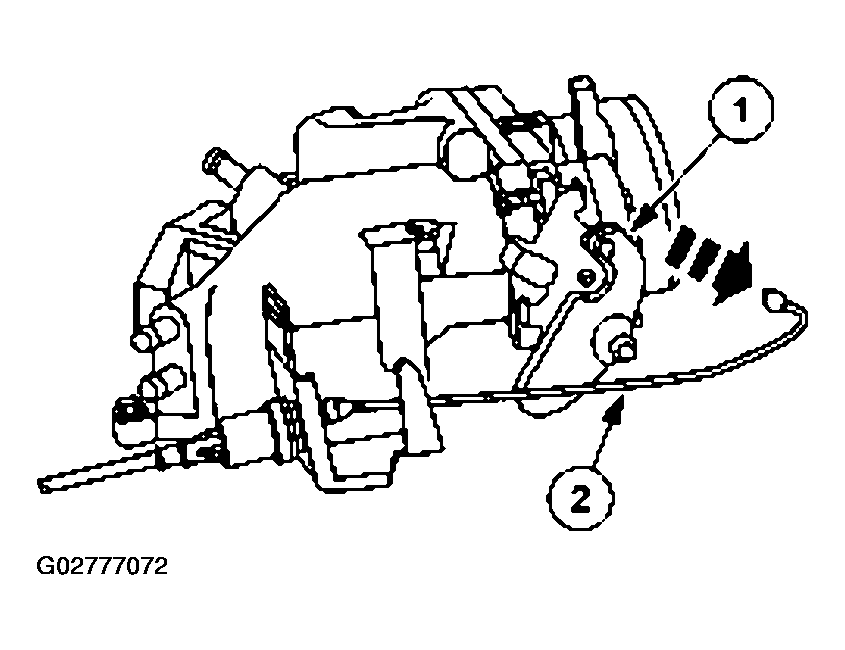

Depress the locking tabs and remove the accelerator cable.

Fig 6: Removing Accelerator Cable
Courtesy of FORD MOTOR CO.

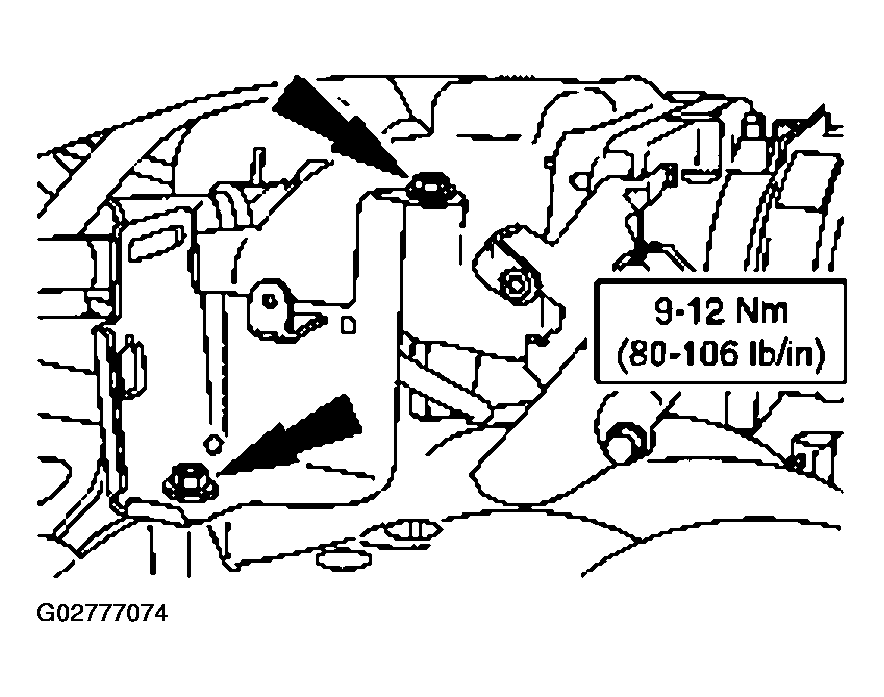

Remove the bolts and remove the accelerator cable bracket.

Fig 7: Removing Accelerator Cable Bracket
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
