Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Hold the accelerator pedal in place and disconnect the accelerator cable from the accelerator pedal and shaft.

Fig 1: Disconnecting Accelerator Cable From Accelerator Pedal And Shaft
Courtesy of FORD MOTOR CO.

CAUTION: The air cleaner outlet tube must be securely sealed to prevent unmetered air from entering the engine.

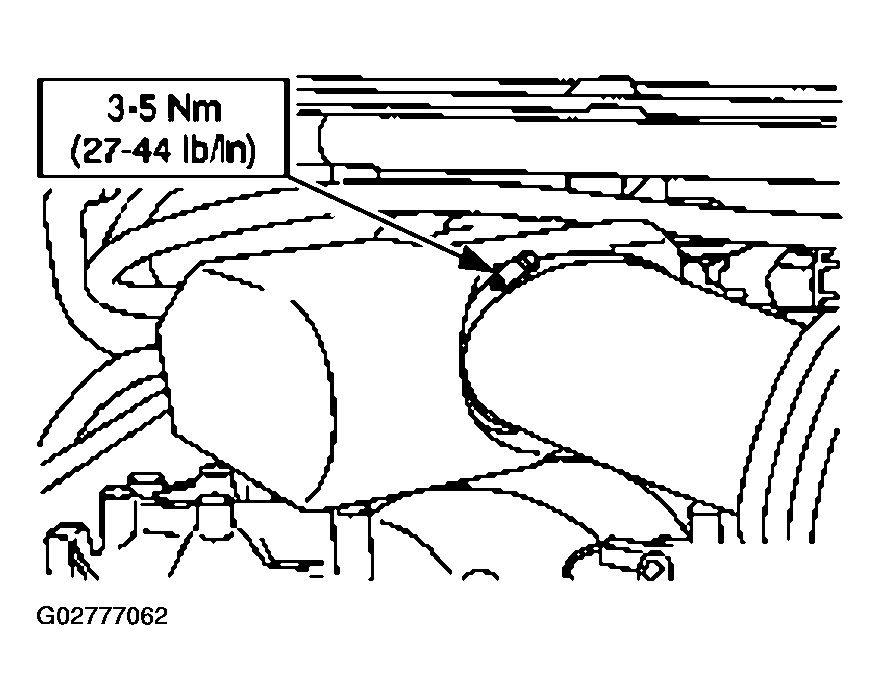

Fig 2: Disconnecting Air Cleaner Outlet Tube From Throttle Body

Courtesy of FORD MOTOR CO.

Disconnect the air cleaner outlet tube from the throttle body.
Remove the accelerator control splash shield.
1. Release the tab.
2. Remove the splash shield.
Fig 3: Removing Splash Shield
Courtesy of FORD MOTOR CO.
Disconnect the accelerator cable pushpin from the dash panel stud.

Fig 4: Disconnecting Accelerator Cable Pushpin From Dash Panel Stud
Courtesy of FORD MOTOR CO.

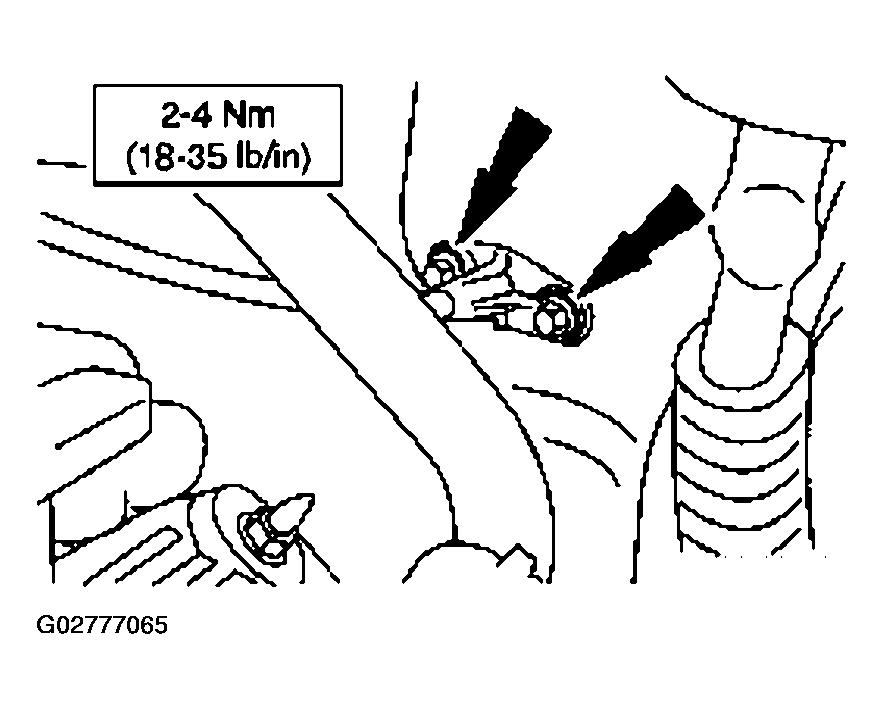

Remove the bolts and pull the cable through the bulkhead.

Fig 5: Pulling Cable Through Bulkhead
Courtesy of FORD MOTOR CO.

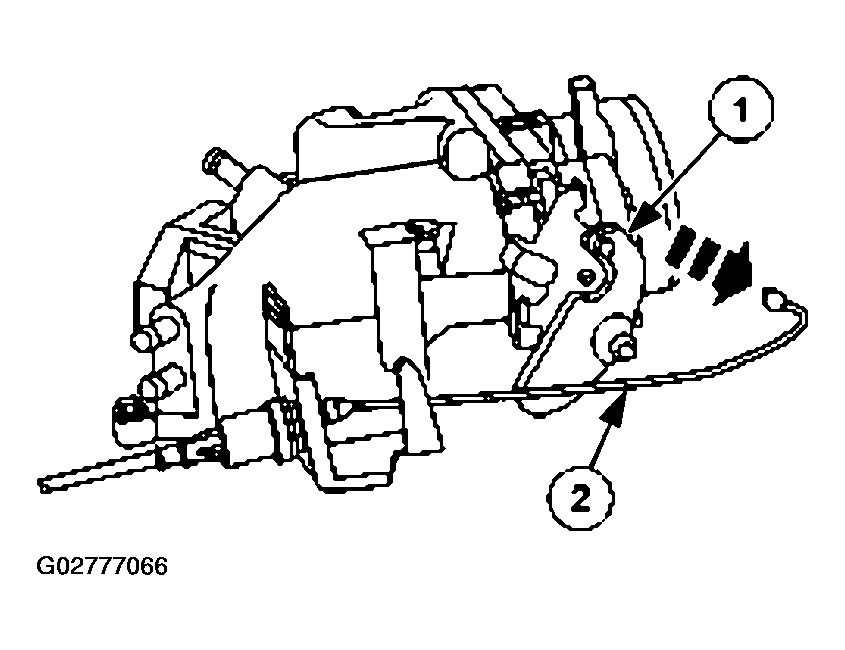

Disconnect the accelerator cable from the throttle body lever.
1. Rotate the throttle body lever forward.
2. Disconnect the accelerator cable.
Fig 6: Disconnecting Accelerator Cable
Courtesy of FORD MOTOR CO.

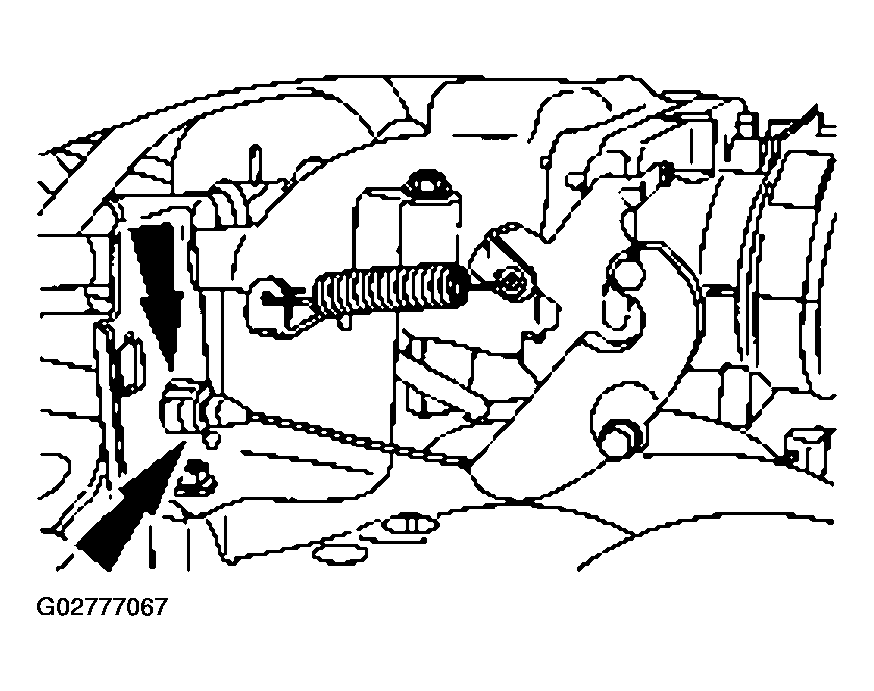

Depress the locking tabs and remove the accelerator cable.

Fig 7: Removing Accelerator Cable
Courtesy of FORD MOTOR CO.
Remove the accelerator cable from the vehicle.
To install, reverse the removal procedure.
