Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hold the pedal in place and disconnect the accelerator cable from the accelerator pedal and shaft.
    Fig 1: Disconnecting Accelerator Cable From Accelerator Pedal And Shaft
    G02777052Courtesy of FORD MOTOR CO.
  2. Remove the bolts.

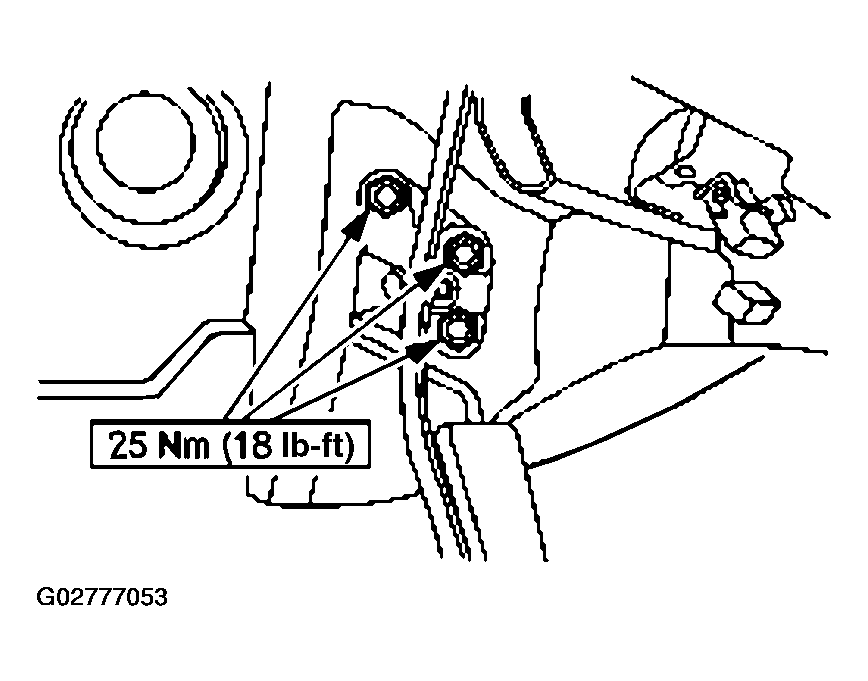

    Fig 2: Removing Bolts
    G02777053Courtesy of FORD MOTOR CO.
  3. Remove the accelerator pedal and shaft.
  4. To install, reverse the removal procedure.
