Inlet Pipe and Catalytic Converter-Excursion, 5.4L and 6.8L Engines

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

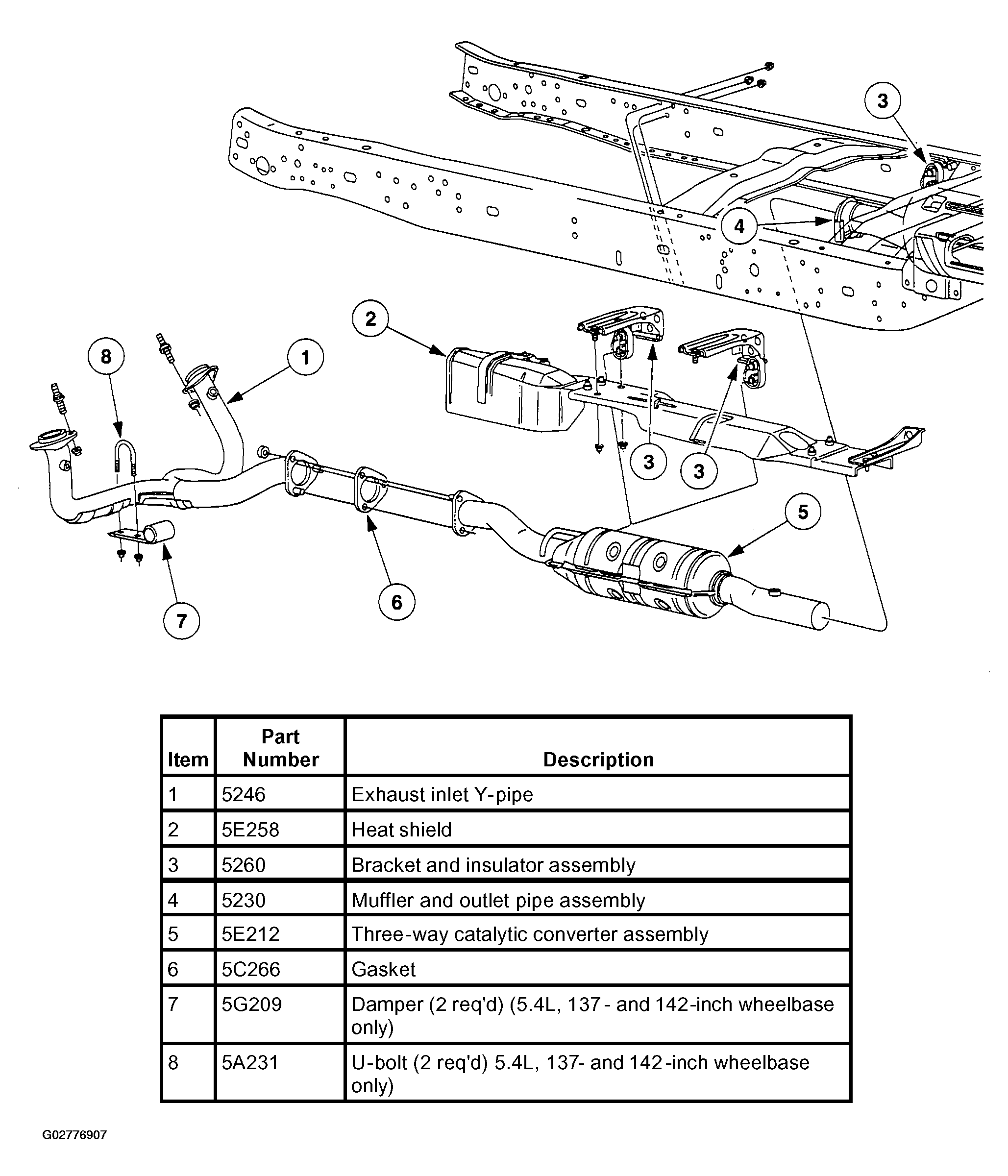

Fig 1: Identifying Inlet Pipe And Catalytic Converter-Excursion, 5.4L And 6.8L Engines
G02776907Courtesy of FORD MOTOR CO.
