Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Prior to removal of the four-wheel drive (4WD) control module, it is necessary to upload module configuration information to a diagnostic tool. This information needs to be downloaded into the new module once installed. Refer to MODULE CONFIGURATION .
  1. Disconnect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .
  2. Open and lower the glove box compartment.
  3. Disconnect the connectors from the 4WD module.

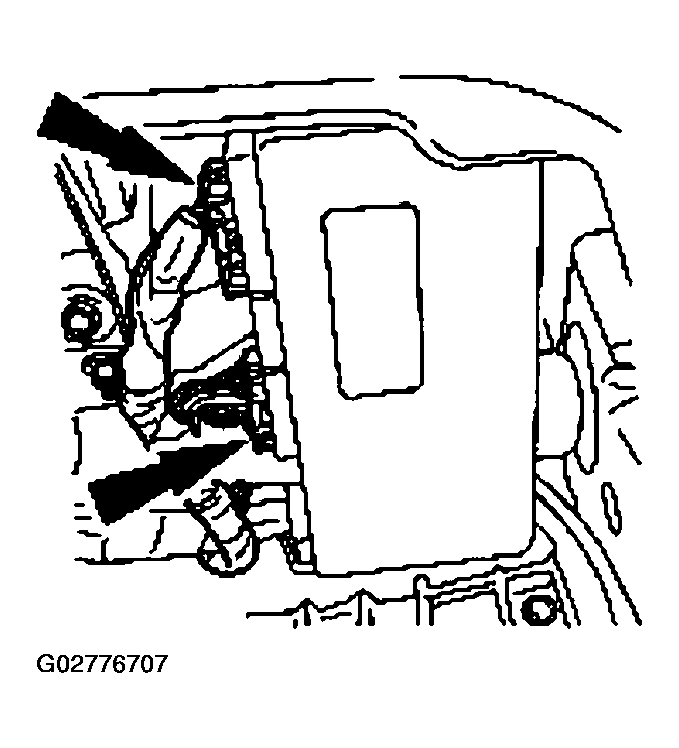

    Fig 1: Disconnecting Connectors From 4WD Module
    G02776707Courtesy of FORD MOTOR CO.
  4. Remove two nuts, one bolt and the 4WD module.

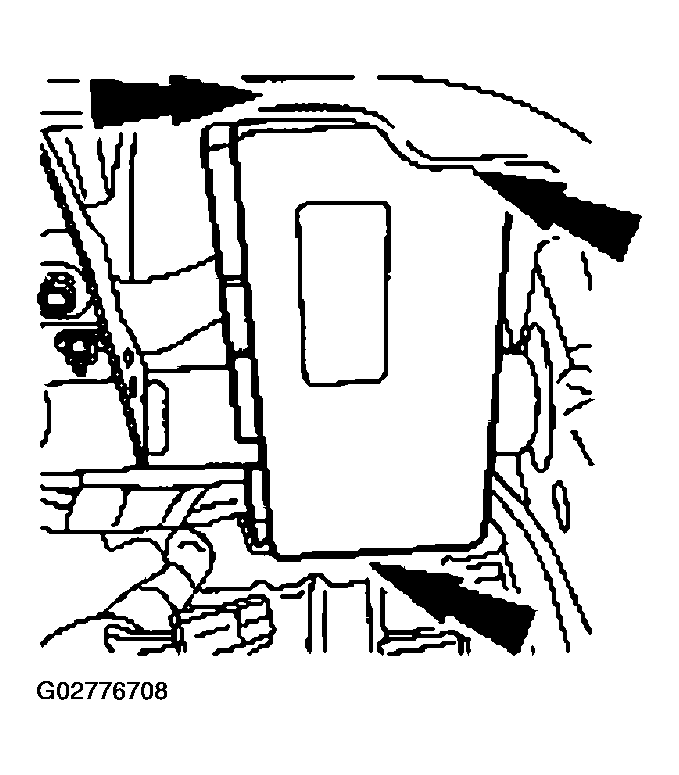

    Fig 2: Removing Nuts
    G02776708Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
