Gearshift Linkage Adjustment
WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Refer to JACKING & LIFTING .
- Inspect the transfer case shifter assembly (and repair or install new components as necessary) for:
- visible signs of damage
- corroded or damaged pivot bushings
- Inspect the shift control rod (and repair or install new components as necessary) for:
- visible damage
- bent or damage rod
- correct control rod for engine application
- Shift the transfer case to the 4x4 HIGH position.

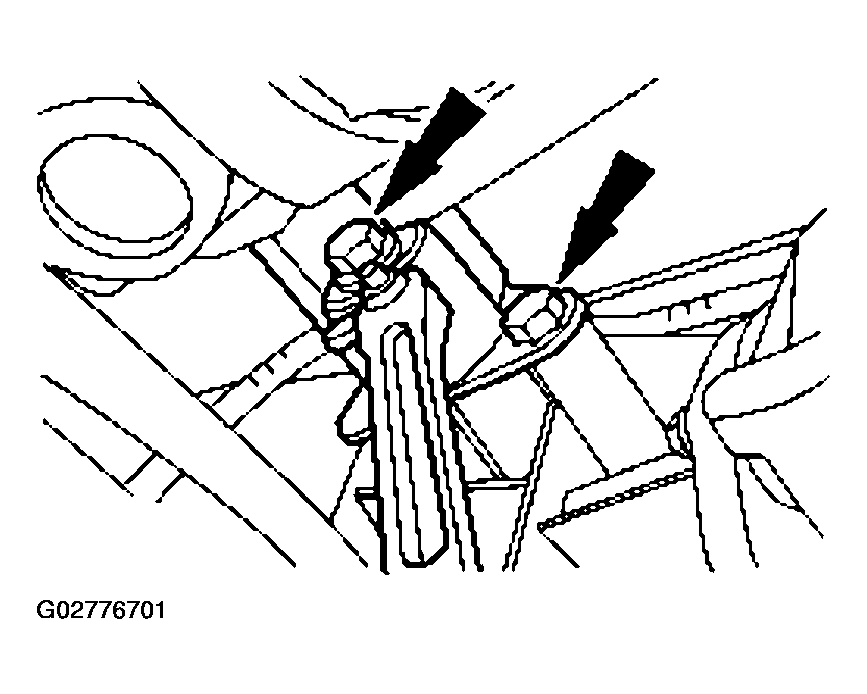

- Loosen the two transfer case shifter-to-transmission adapter mounting bolts.

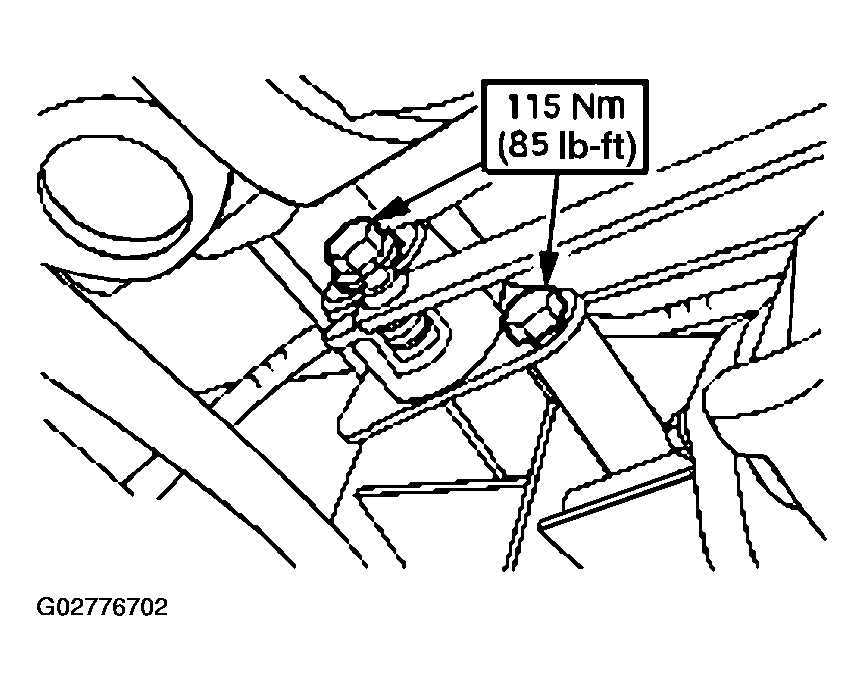

- Verify the transfer case shifter is still in the 4x4 HIGH detent position and hold the shifter handle against the 4x4 HIGH stop while tightening the two transfer case shifter-to-transmission adapter mounting bolts.
- Lower the vehicle.
- Test the system for normal operation.
