Pinpoint Test C: Electronic Shift Functional Test

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The function test must be carried out on a hard surface in a vacant area without traffic.

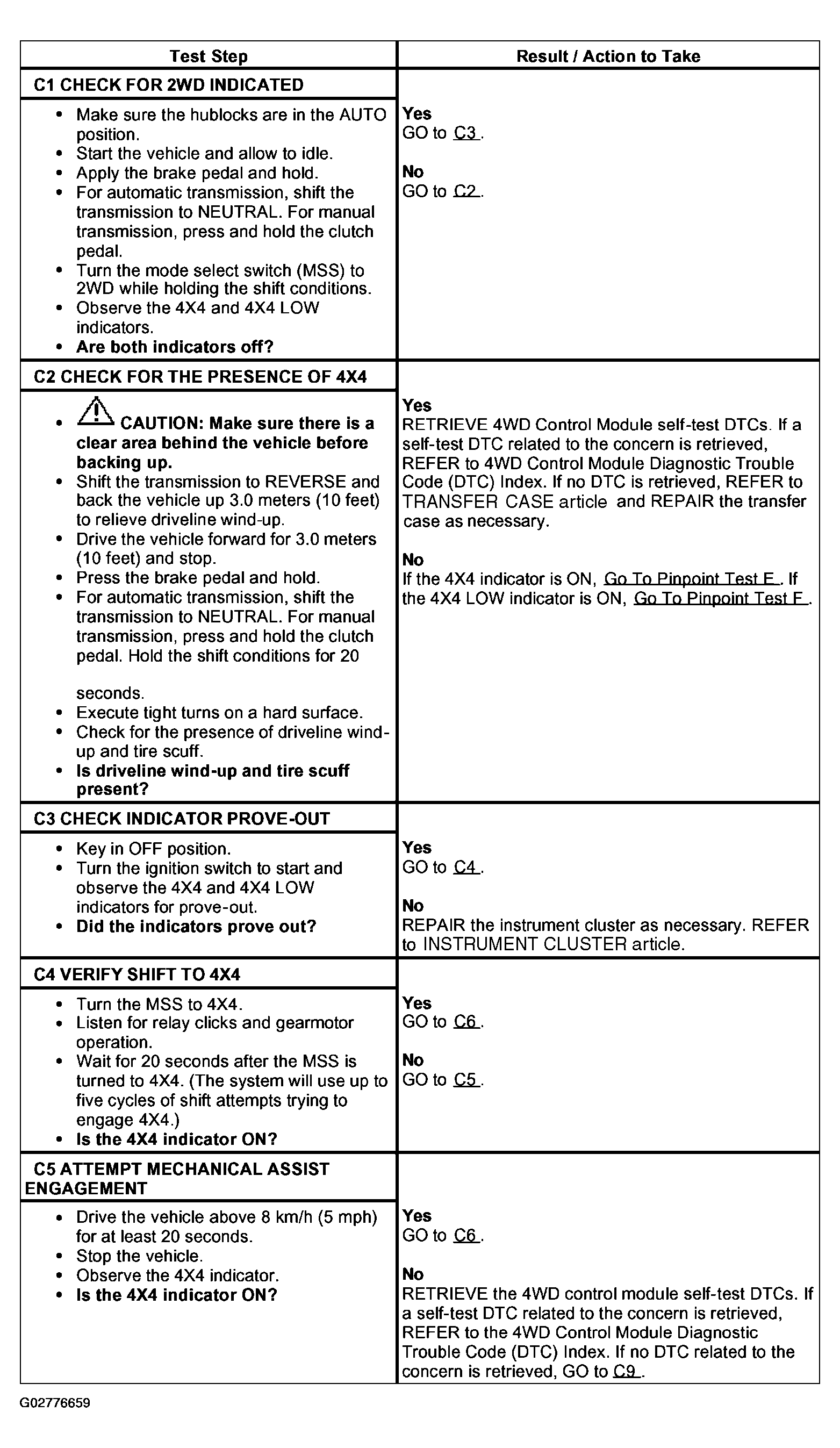

Fig 1: Pinpoint Test C: Electronic Shift Functional Test (C1-C5)

Courtesy of FORD MOTOR CO.

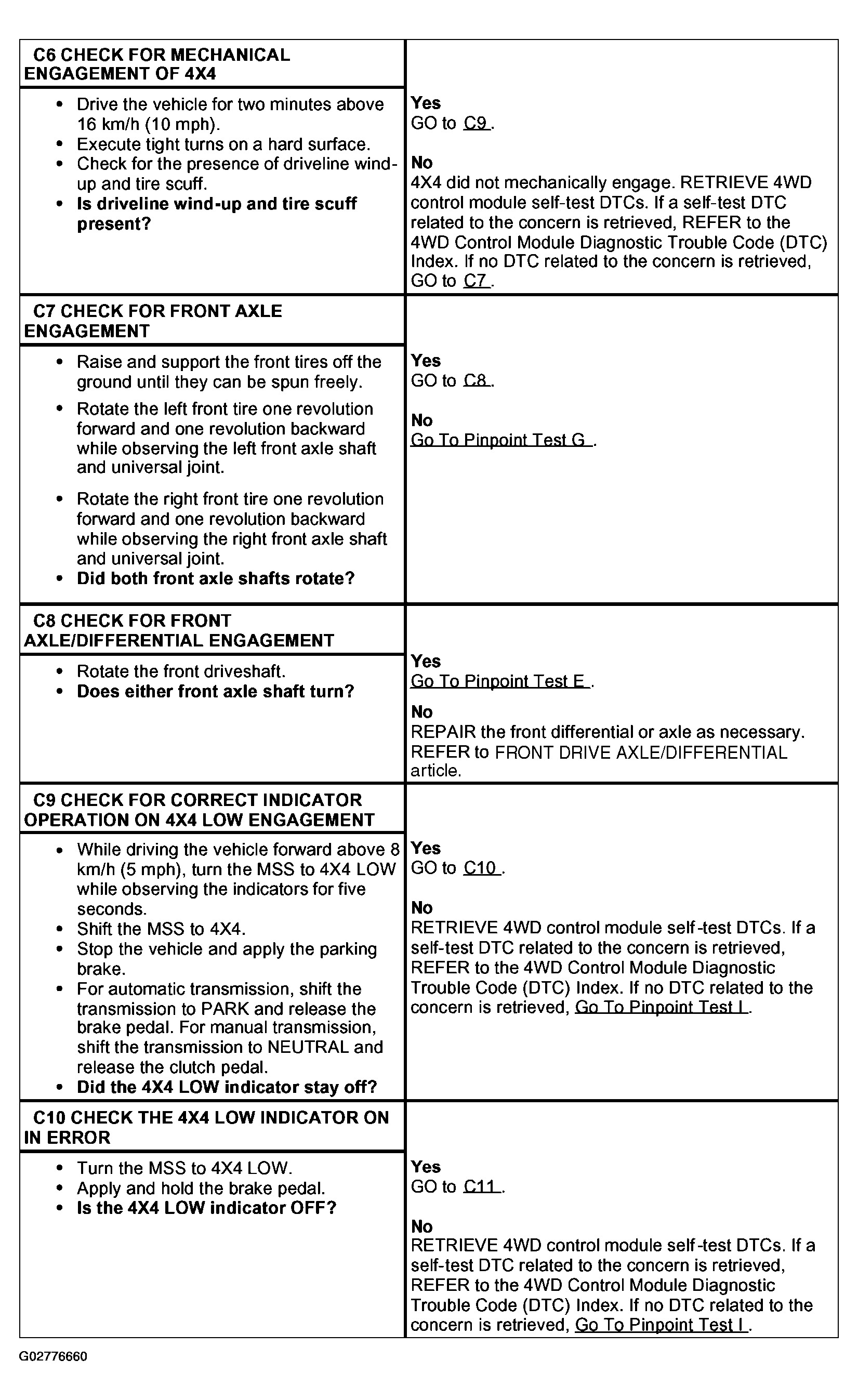

Fig 2: Pinpoint Test C: Electronic Shift Functional Test (C6-C10)

Courtesy of FORD MOTOR CO.

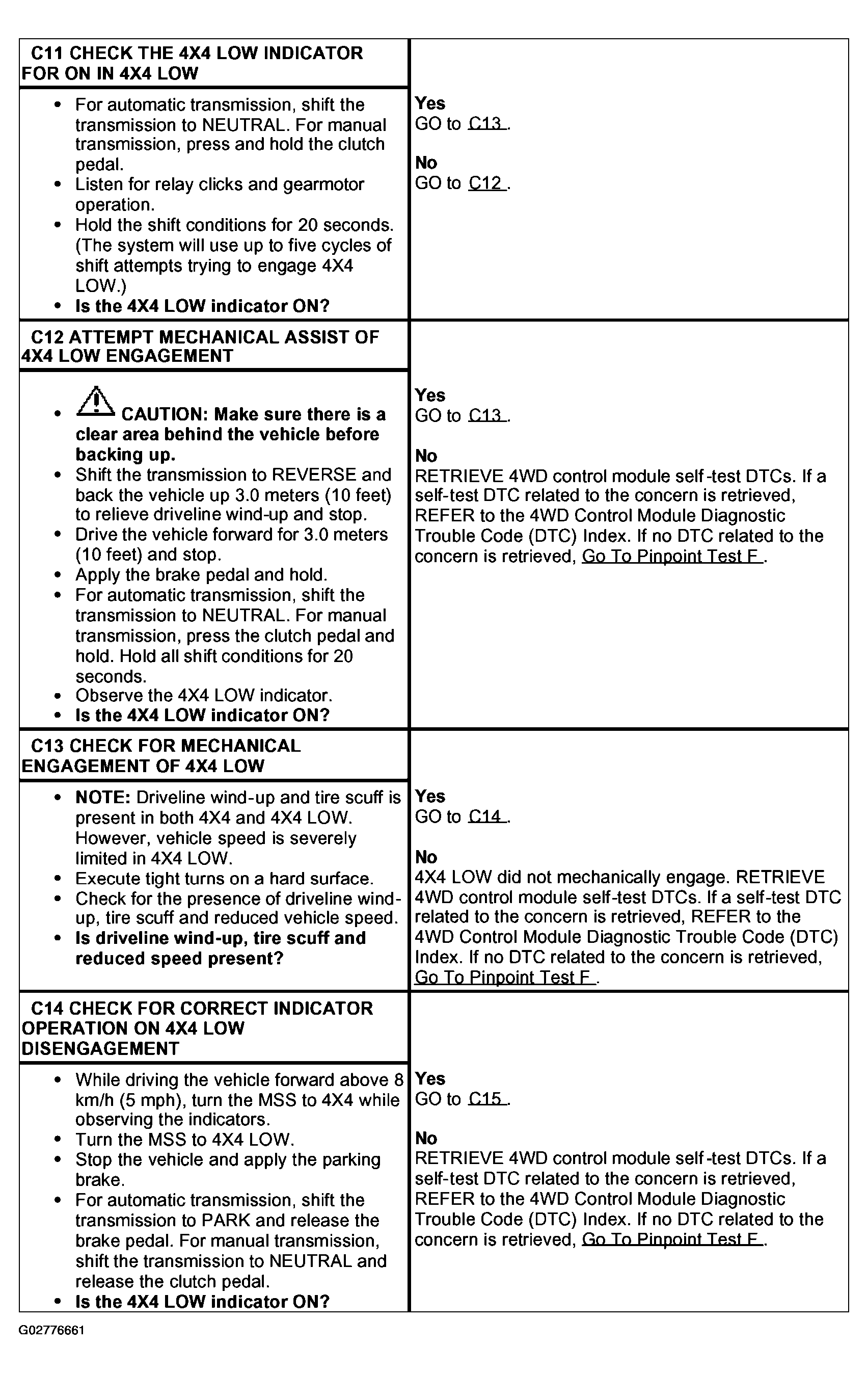

Fig 3: Pinpoint Test C: Electronic Shift Functional Test (C11-C14)

Courtesy of FORD MOTOR CO.

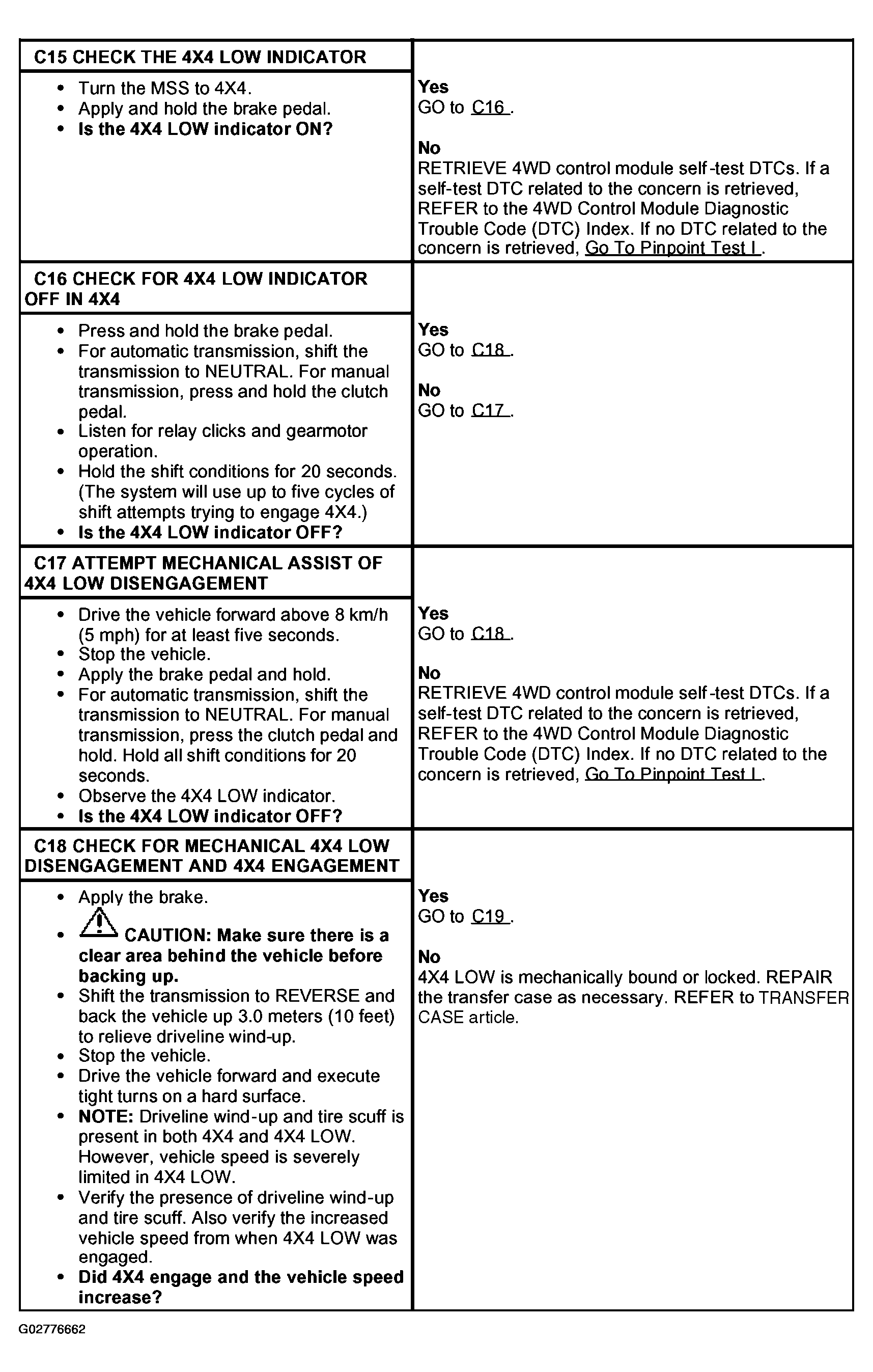

Fig 4: Pinpoint Test C: Electronic Shift Functional Test (C15-C18)

Courtesy of FORD MOTOR CO.

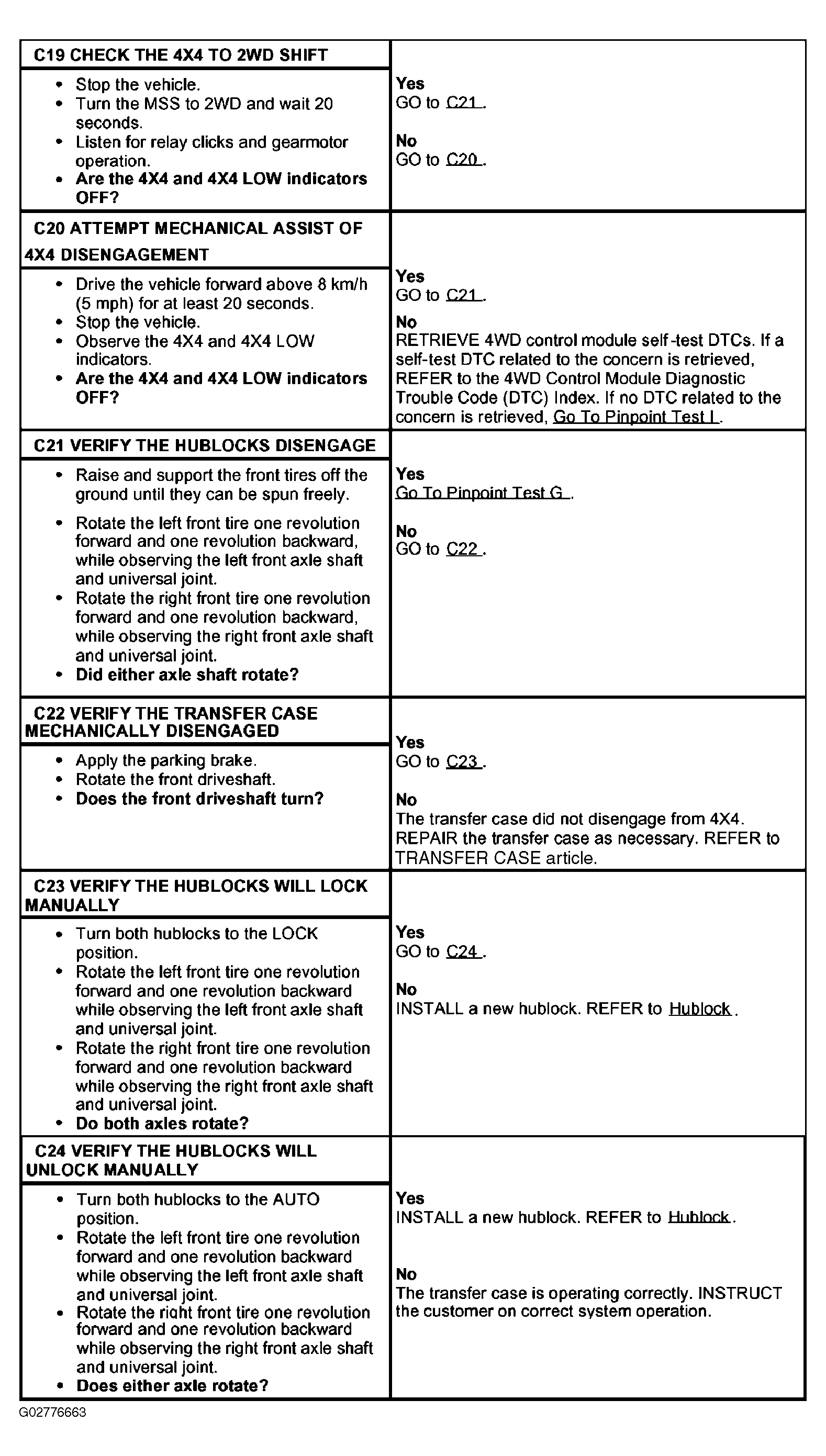

Fig 5: Pinpoint Test C: Electronic Shift Functional Test (C19-C24)

Courtesy of FORD MOTOR CO.
