Shift Lever and Boot: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the four screws and the shift lever boot.
    Fig 1: Removing Screws Of Shift Lever Boot
    G02776405Courtesy of FORD MOTOR CO.
  2. Remove the upper gearshift lever.
    Fig 2: Removing Upper Gearshift Lever
    G02776406Courtesy of FORD MOTOR CO.
  3. Remove the lower shift lever boot.
    Fig 3: Removing Lower Shift Lever Boot
    G02776407Courtesy of FORD MOTOR CO.

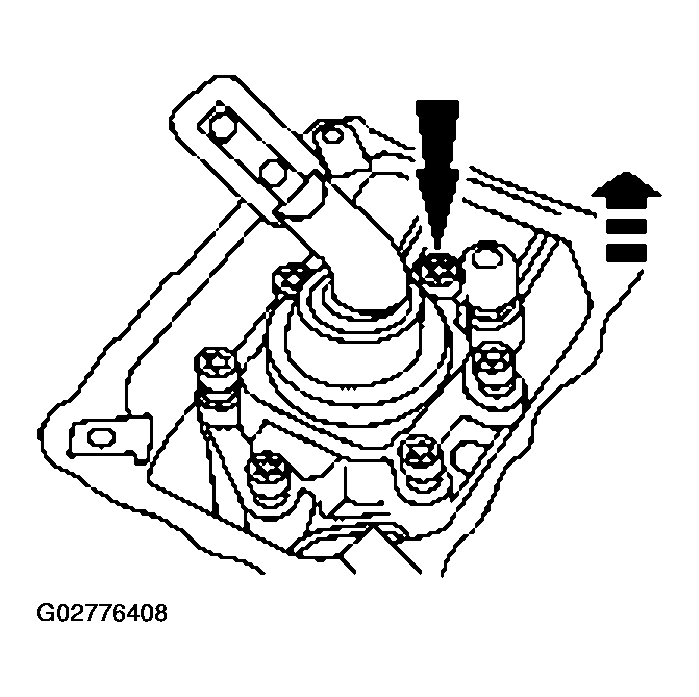

  4. Remove the lower gearshift lever and the shift housing.
    Fig 4: Removing Lower Gearshift Lever And Shift Housing
    G02776408Courtesy of FORD MOTOR CO.
  5. Separate the lower shift lever and gearshift lever blocks from the shift housing.
    Fig 5: Separating Lower Shift Lever And Gearshift Lever Blocks From Shift Housing
    G02776409Courtesy of FORD MOTOR CO.
  6. Remove the inner shift lever boot ring, then the shift lever boot.
    Fig 6: Removing Inner Shift Lever Boot Ring
    G02776410Courtesy of FORD MOTOR CO.
