Seal - Output Oil: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

Raise and support the vehicle. Refer to JACKING & LIFTING .
Disconnect the rear driveshaft from the transmission and position it aside. Refer to DRIVESHAFT .
Vehicles with 4-wheel drive
Remove the transfer case. Refer to TRANSFER CASE .
Using the special tools, remove and discard the output oil seal.

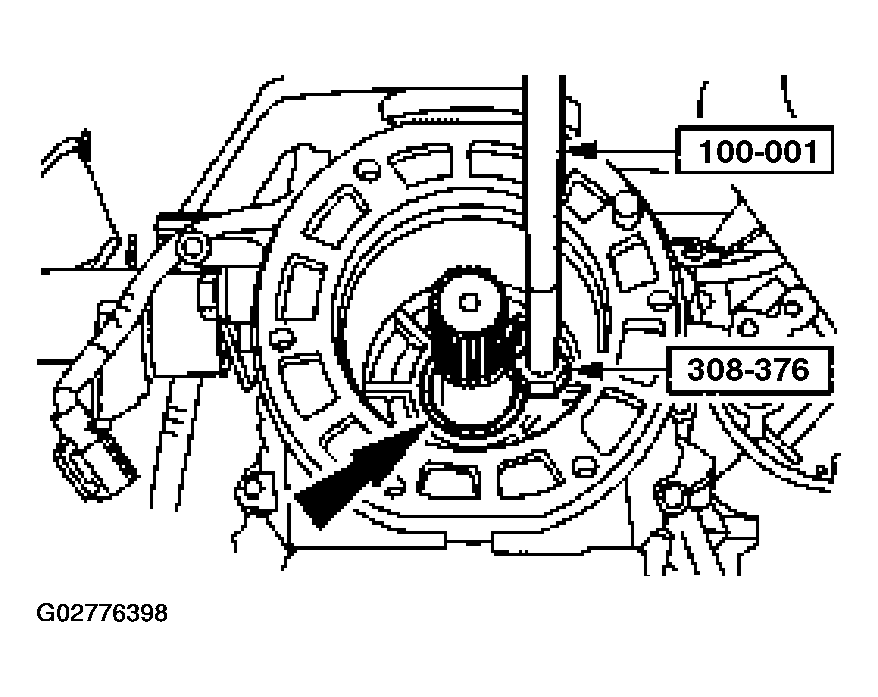

Fig 1: Removing Output Oil Seal
Courtesy of FORD MOTOR CO.

Vehicles with 2-wheel drive
Using the special tools, remove the transmission flange.

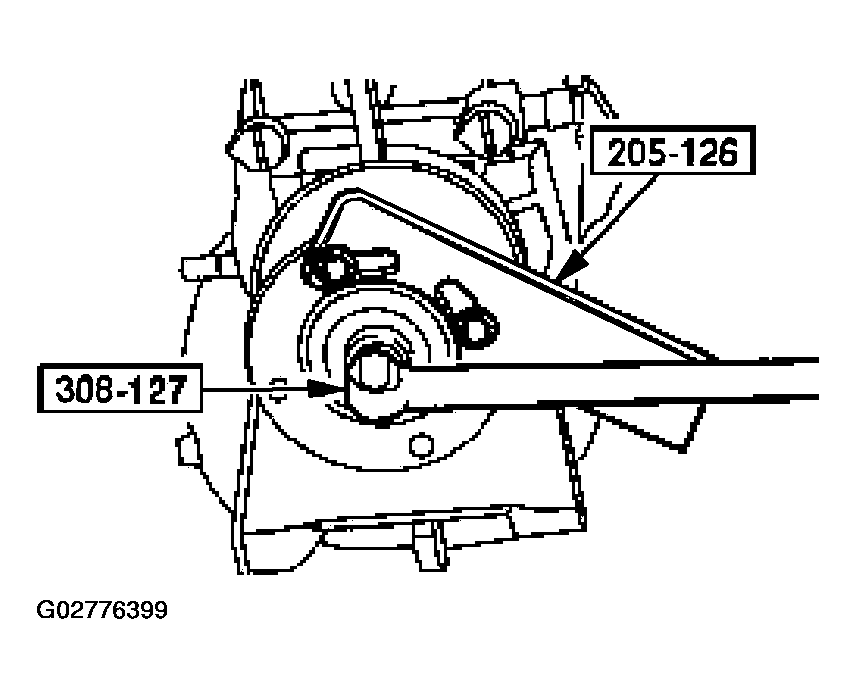

Fig 2: Removing Transmission Flange
Courtesy of FORD MOTOR CO.
Remove and discard the output oil seal.

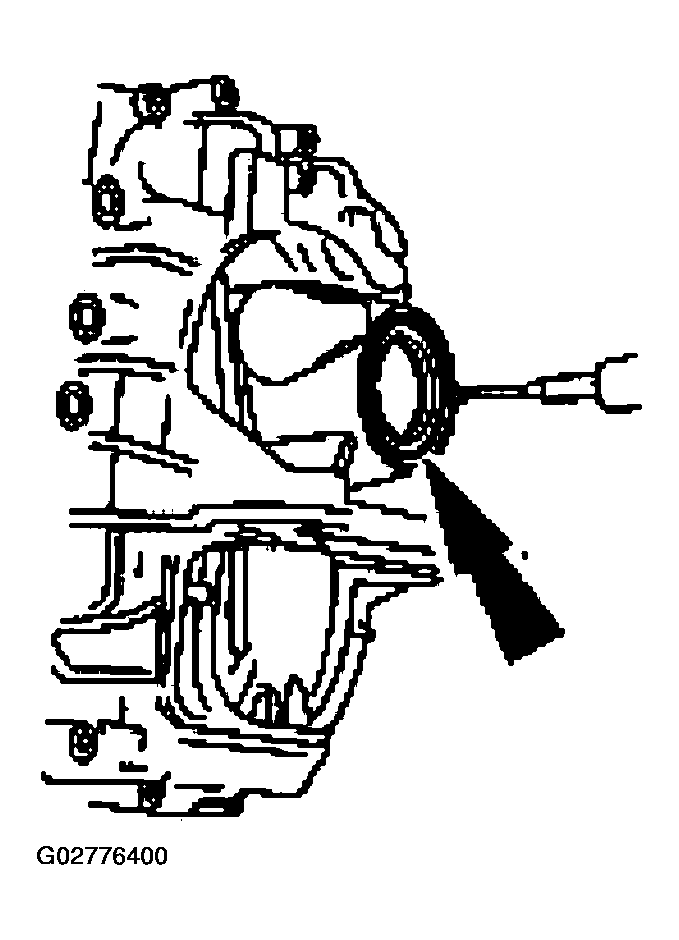

Fig 3: Removing Output Oil Seal
Courtesy of FORD MOTOR CO.
