Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
Remove the bolts and the skid plate (4x4 only).

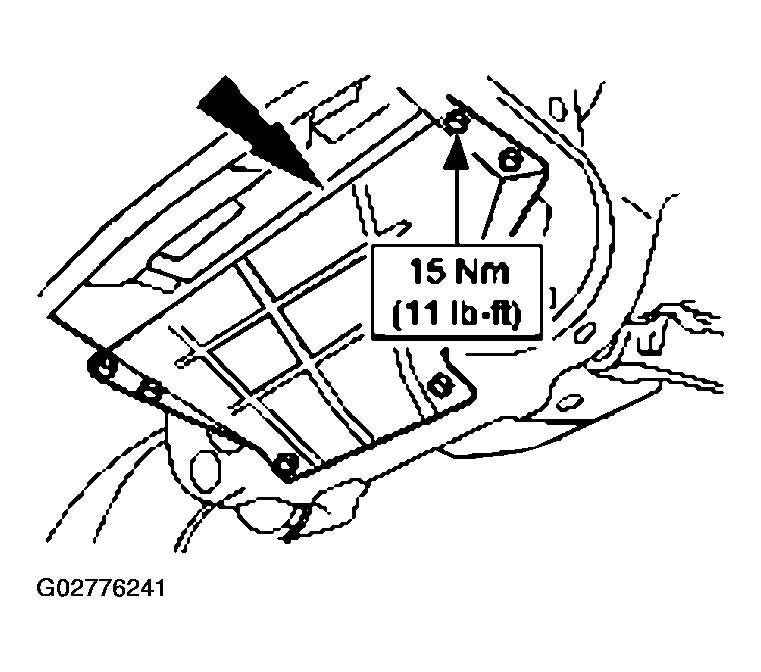

Fig 1: Removing Bolts Of Skid Plate
Courtesy of FORD MOTOR CO.
Remove bolts and the air deflector.

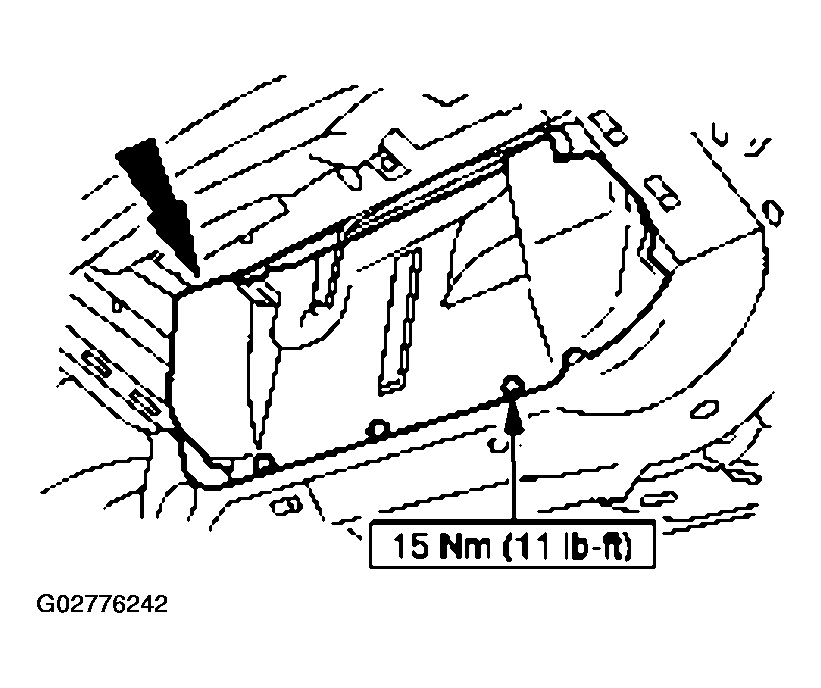

Fig 2: Removing Bolts Of Air Deflector
Courtesy of FORD MOTOR CO.
Remove the cooler tube bracket and nut, then the fluid cooler tube bracket. Separate the fluid cooler tube bracket from the tubes.

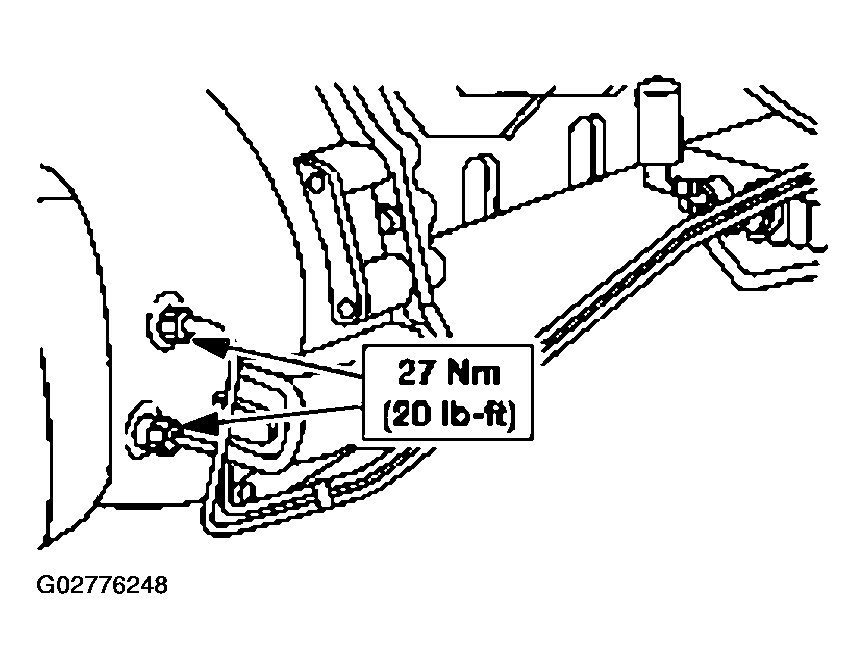

Fig 3: Removing Cooler Tube Bracket And Nut
Courtesy of FORD MOTOR CO.

Fig 4: Removing Fluid Cooler Tube Bracket
Courtesy of FORD MOTOR CO.
Disconnect, and remove each fluid cooler tube, as necessary.

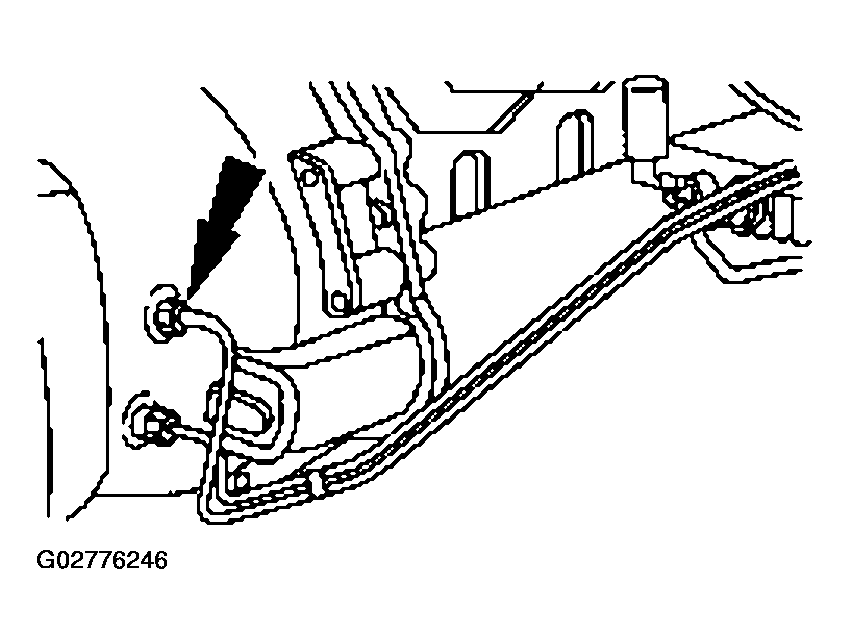

Fig 5: Removing Each Fluid Cooler Tube (1 Of 2)
Courtesy of FORD MOTOR CO.

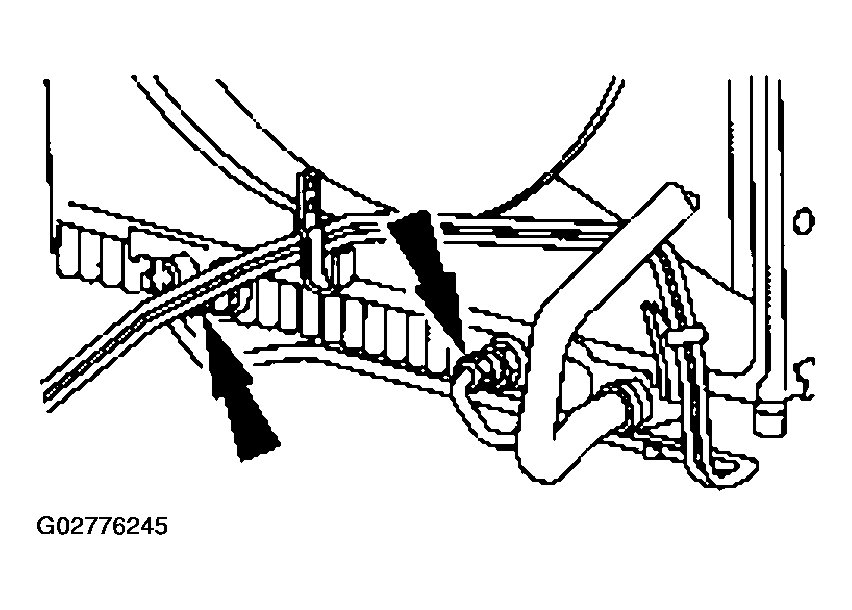

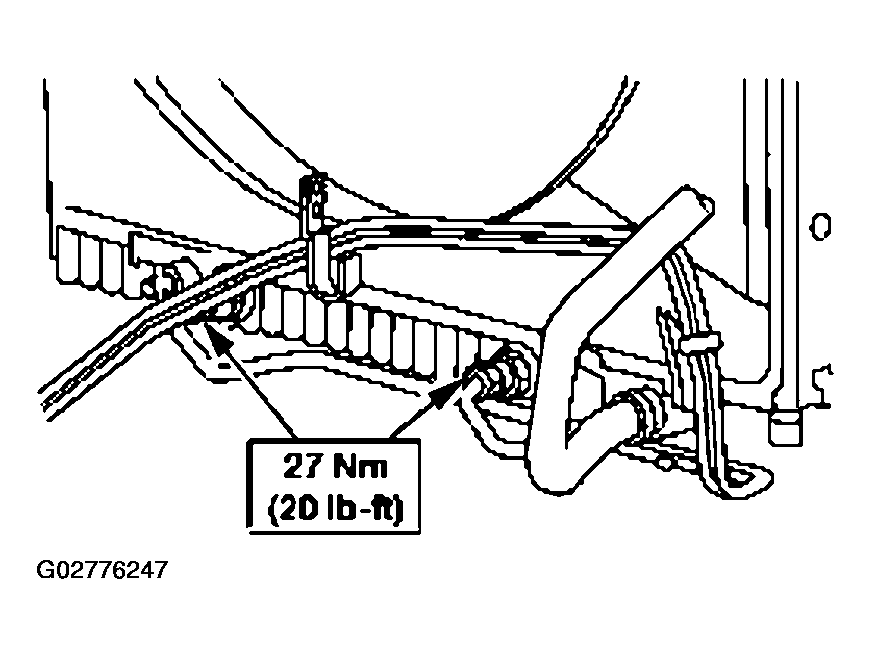

Fig 6: Removing Each Fluid Cooler Tube (2 Of 2)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Fill the transmission with Motorcraft MERCON® Multi-Purpose (ATF) Transmission Fluid XT-2-QDX or equivalent meeting MERCON® specifications.
- Check for leaks.

  Fig 7: Checking For Leaks (1 Of 2)
  Courtesy of FORD MOTOR CO.

  Fig 8: Checking For Leaks (2 Of 2)
  Courtesy of FORD MOTOR CO.
