Transmission Fluid Cooler Tubes - 4R100 Transmission: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
Remove the bolts and the skid plate (4x4 only).

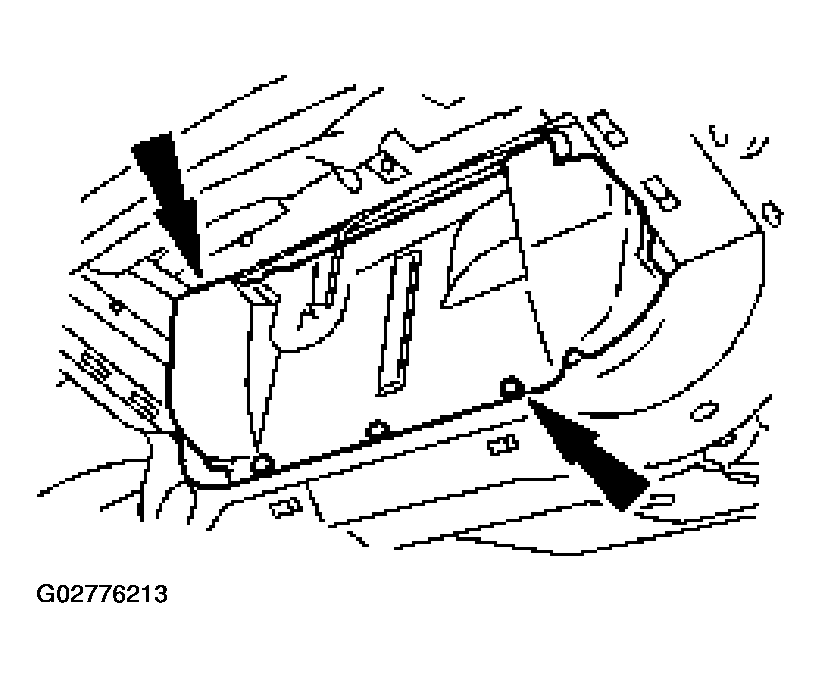

Fig 1: Removing Bolts Of Skid Plate
Courtesy of FORD MOTOR CO.
Remove the bolts and the air deflector.

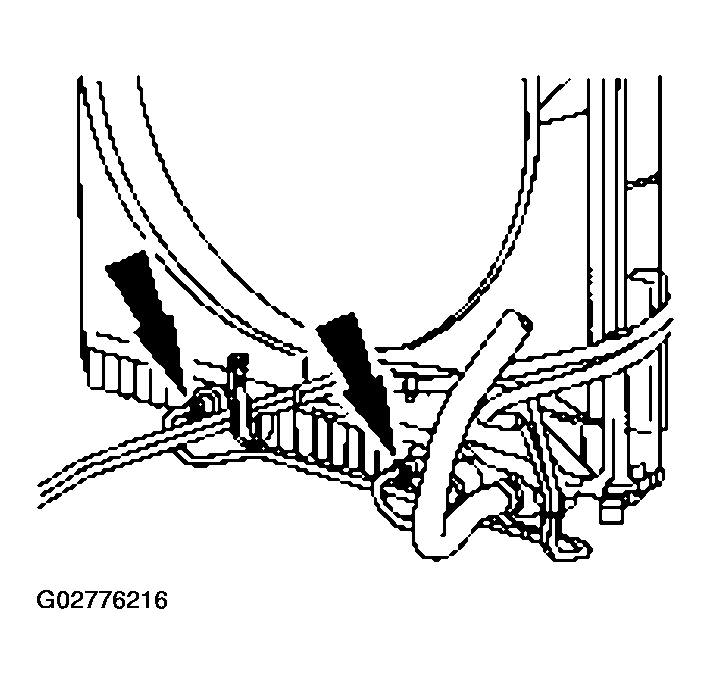

Fig 2: Removing Bolts Of Air Deflector
Courtesy of FORD MOTOR CO.
Using the special tool, disconnect the fluid cooler tubes from the fluid cooler.

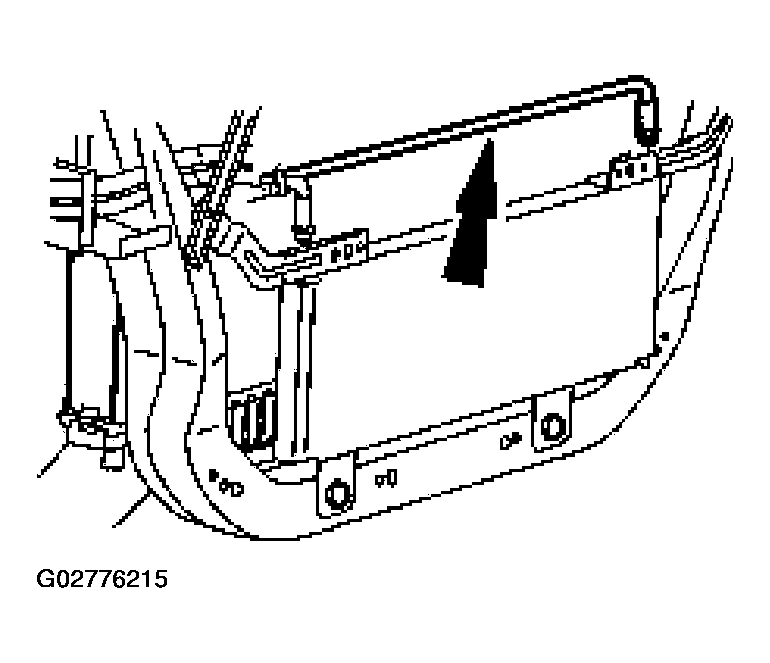

Fig 3: Disconnecting Fluid Cooler Tubes From Fluid Cooler (1 Of 3)
Courtesy of FORD MOTOR CO.

Fig 4: Disconnecting Fluid Cooler Tubes From Fluid Cooler (2 Of 3)
Courtesy of FORD MOTOR CO.

Fig 5: Disconnecting Fluid Cooler Tubes From Fluid Cooler (3 Of 3)
Courtesy of FORD MOTOR CO.

NOTE: If cooler bypass valve (CBV) assembly removal is necessary, refer to COOLER BYPASS VALVE .

Fig 6: Removing Fluid Cooler Tube From Front Cooler Line Case Fitting

Courtesy of FORD MOTOR CO.

Remove the fluid cooler tube from the front cooler line case fitting.
Remove the fluid cooler tube from the rear cooler line case fitting.

Fig 7: Removing Fluid Cooler Tube From Rear Cooler Line Case Fitting
Courtesy of FORD MOTOR CO.

NOTE: To remove production fluid cooler tubes from some vehicle applications, it will be necessary to use a tube cutter to cut the tubes at the fluid cooler tube bracket.

Fig 8: Removing Nut, Fluid Cooler Tube Bracket And Fluid Cooler Tube(s)

Courtesy of FORD MOTOR CO.

Remove the nut, the fluid cooler tube bracket and the fluid cooler tube(s).
