Auxiliary Transmission Fluid Cooler - Oil-to-Air Fluid Cooler, TorqShift, F-Super Duty: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
Remove the four upper grille screws.

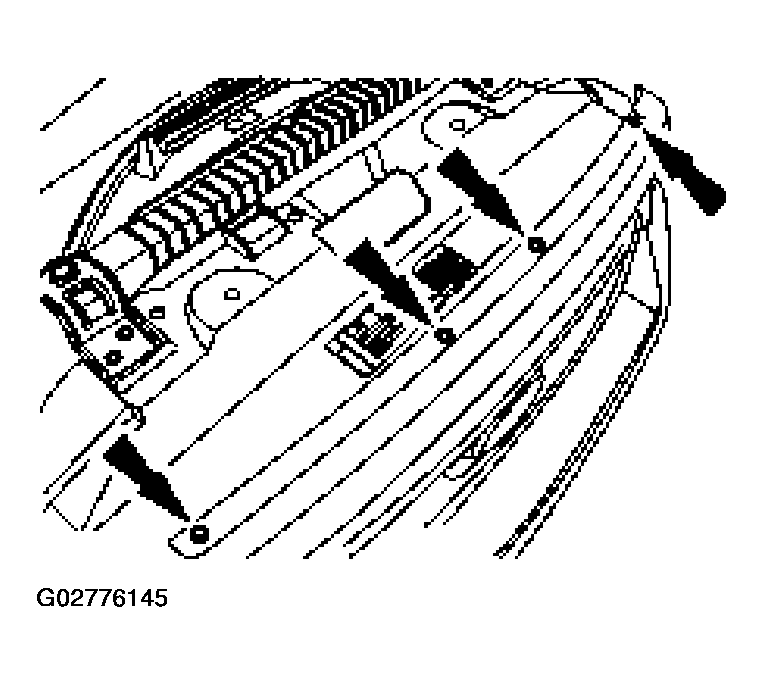

Fig 1: Removing Four Upper Grille Screws
Courtesy of FORD MOTOR CO.
Remove the lower retaining clips and remove the grille.

Fig 2: Removing Lower Retaining Clips
Courtesy of FORD MOTOR CO.
Remove the LH upper auxiliary transmission fluid cooler retaining bolts.

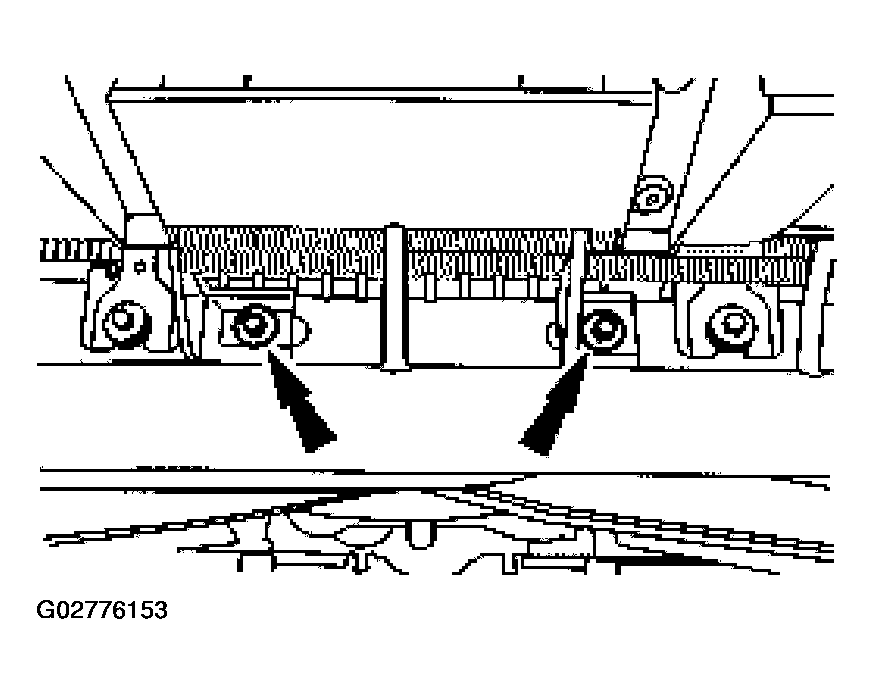

Fig 3: Removing LH Upper Auxiliary Transmission Fluid Cooler Retaining Bolts
Courtesy of FORD MOTOR CO.
Remove the RH upper auxiliary transmission fluid cooler retaining bolts.

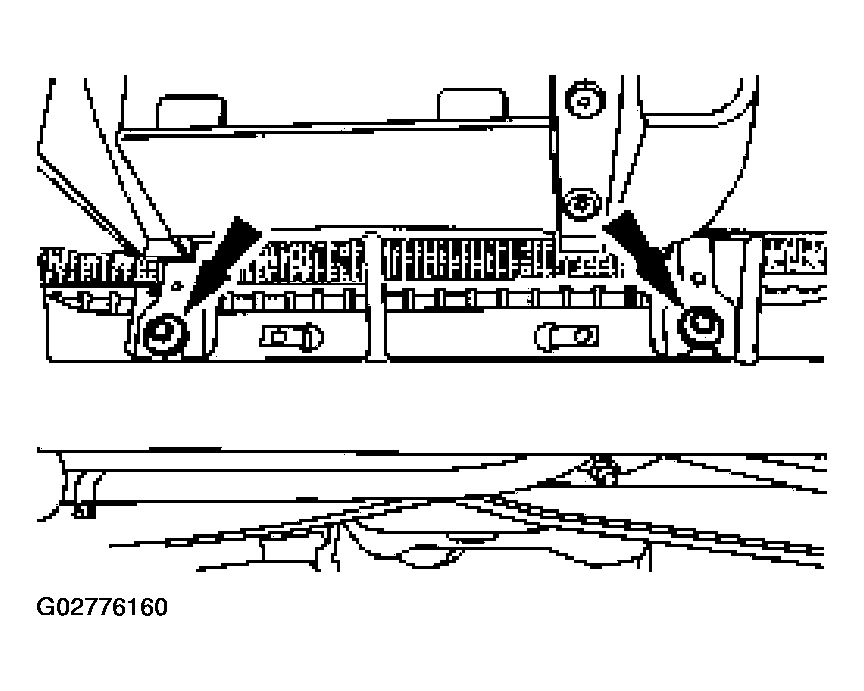

Fig 4: Removing RH Upper Auxiliary Transmission Fluid Cooler Retaining Bolts
Courtesy of FORD MOTOR CO.
Disconnect the LH lower splash shield push pin.

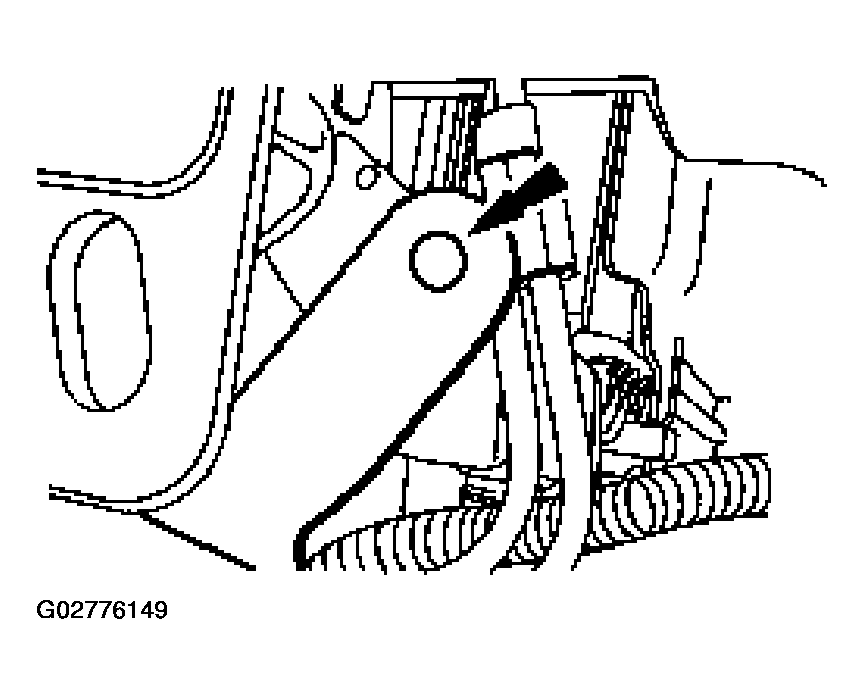

Fig 5: Disconnecting LH Lower Splash Shield Push Pin
Courtesy of FORD MOTOR CO.
Disconnect the RH lower splash shield push pin.

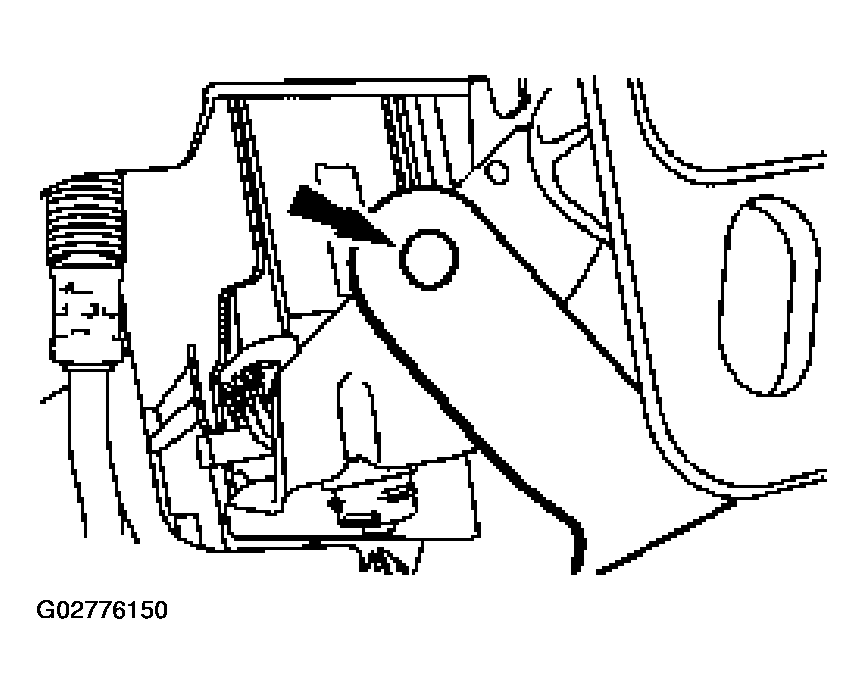

Fig 6: Disconnecting RH Lower Splash Shield Push Pin
Courtesy of FORD MOTOR CO.
Remove the four lower splash shield push pins.

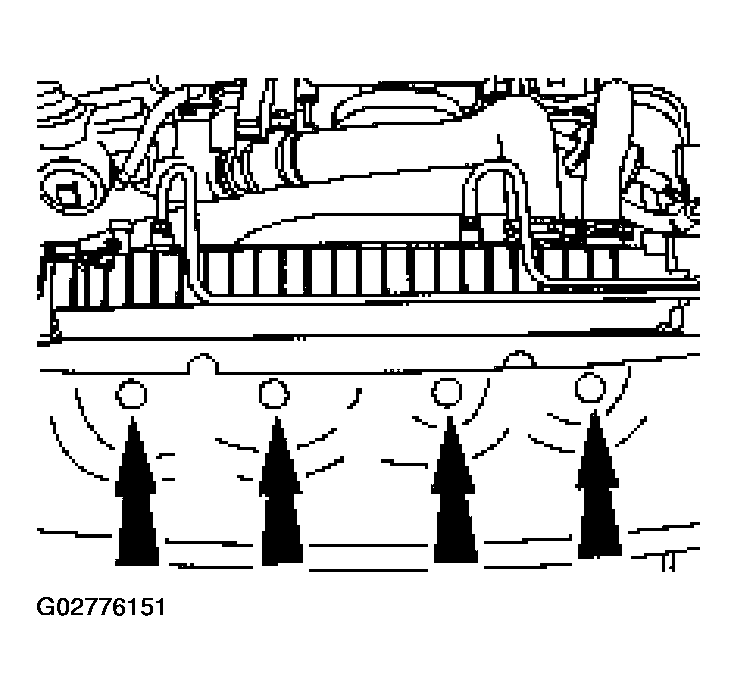

Fig 7: Removing Four Lower Splash Shield Push Pins
Courtesy of FORD MOTOR CO.
If equipped, remove the six retainers and remove the lower bumper filler.

Fig 8: Removing Lower Bumper Filler
Courtesy of FORD MOTOR CO.
If equipped, remove the power steering cooler retaining bolts and position the power steering cooler out of the way.

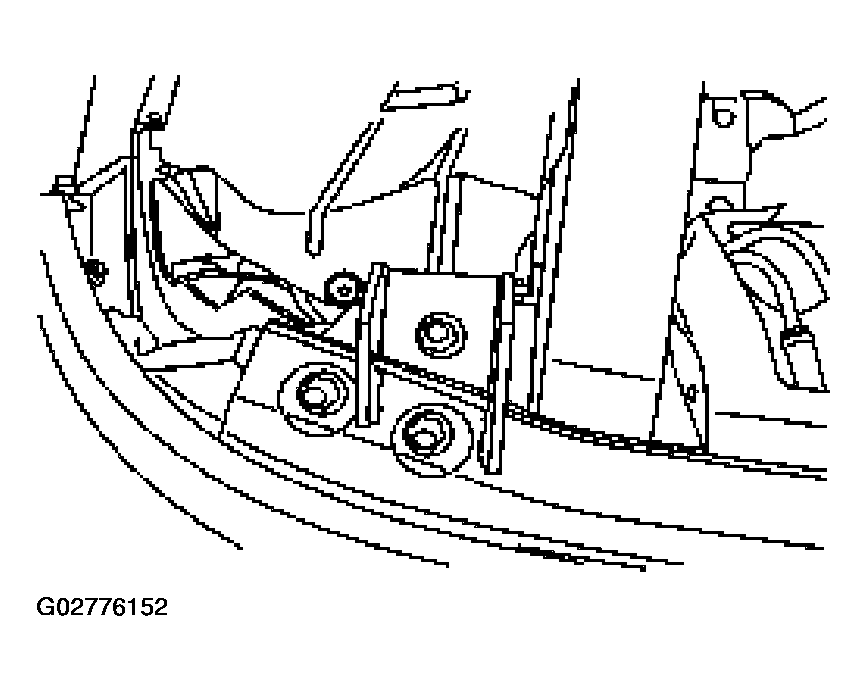

Fig 9: Removing Power Steering Cooler Retaining Bolts
Courtesy of FORD MOTOR CO.
Disconnect the LH lower splash shield push pin to gain access to the A/C condenser bracket.

Fig 10: Disconnecting LH Lower Splash Shield Push Pin
Courtesy of FORD MOTOR CO.
Disconnect the RH lower splash shield push pin to gain access to the A/C condenser bracket.

Fig 11: Disconnecting RH Lower Splash Shield Push Pin
Courtesy of FORD MOTOR CO.
Disconnect the LH auxiliary transmission fluid cooler hose.

Fig 12: Disconnecting LH Auxiliary Transmission Fluid Cooler Hose
Courtesy of FORD MOTOR CO.
Disconnect the RH auxiliary transmission fluid cooler hose.

Fig 13: Disconnecting RH Auxiliary Transmission Fluid Cooler Hose
Courtesy of FORD MOTOR CO.
Remove the LH lower A/C condenser bracket.

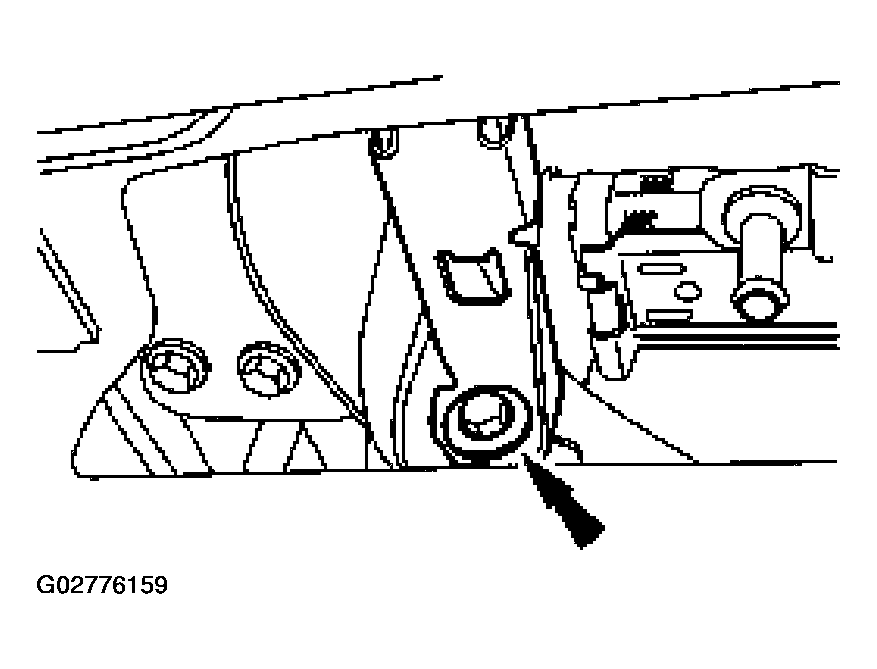

Fig 14: Removing LH Lower A/C Condenser Bracket
Courtesy of FORD MOTOR CO.
Remove the RH lower A/C condenser bracket.

Fig 15: Removing RH Lower A/C Condenser Bracket
Courtesy of FORD MOTOR CO.

NOTE: The auxiliary transmission fluid cooler must be lifted up off the lower frame and moved toward the front of the vehicle so the lower brackets can clear the frame.

NOTE: It is necessary to move the A/C condenser toward the front of the vehicle to remove the auxiliary transmission fluid cooler.

Fig 16: Removing Bolts OF Auxiliary Transmission Fluid Cooler

Courtesy of FORD MOTOR CO.

Remove the bolts and the auxiliary transmission fluid cooler.
