Auxiliary Transmission Fluid Cooler - Oil-to-Air Fluid Cooler, TorqShift, F-Super Duty: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: It is necessary to move the A/C condenser toward the front of the vehicle to install the auxiliary transmission fluid cooler.

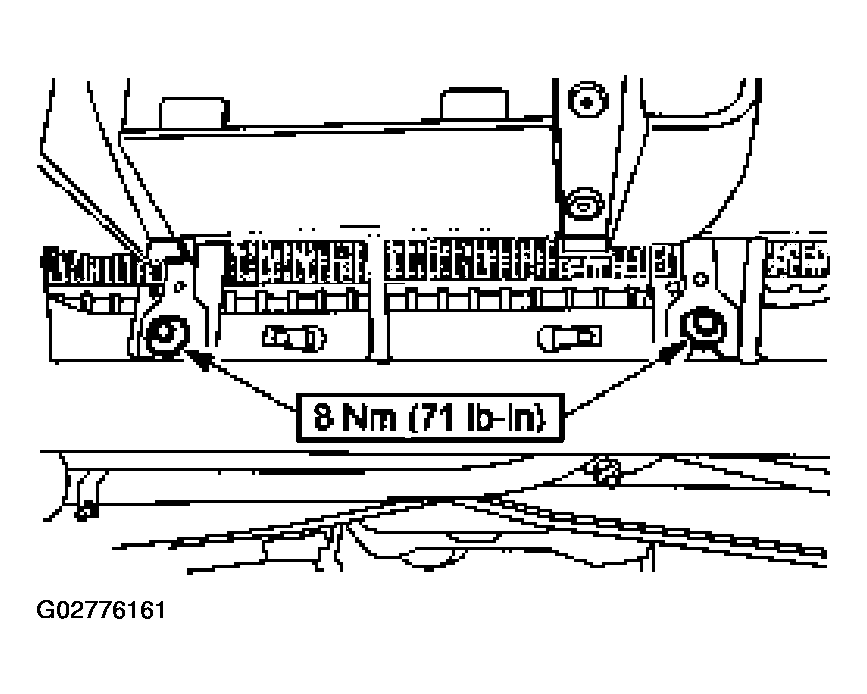

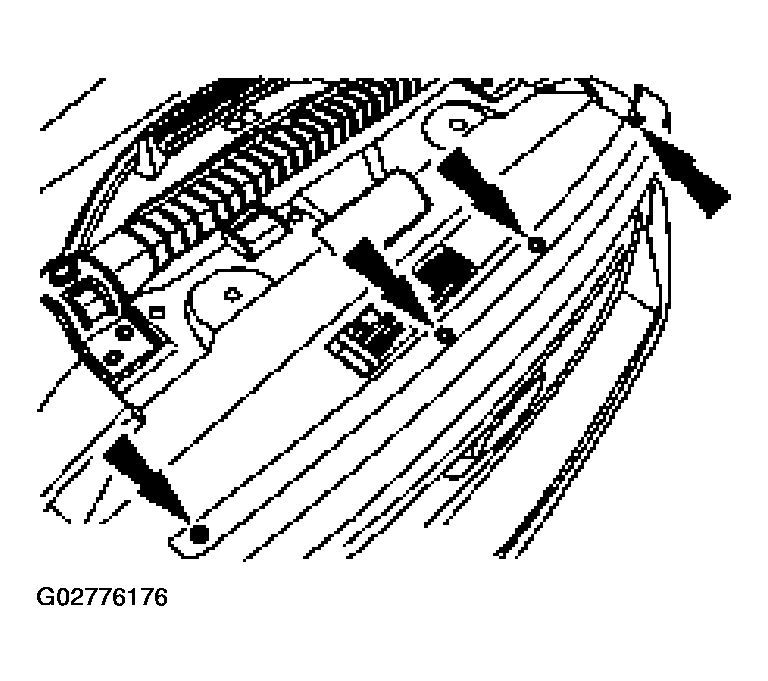

Fig 1: Installing Auxiliary Transmission Fluid Cooler Bolts

Courtesy of FORD MOTOR CO.

Install the auxiliary transmission fluid cooler and the bolts.
Install the RH lower A/C condenser bracket.

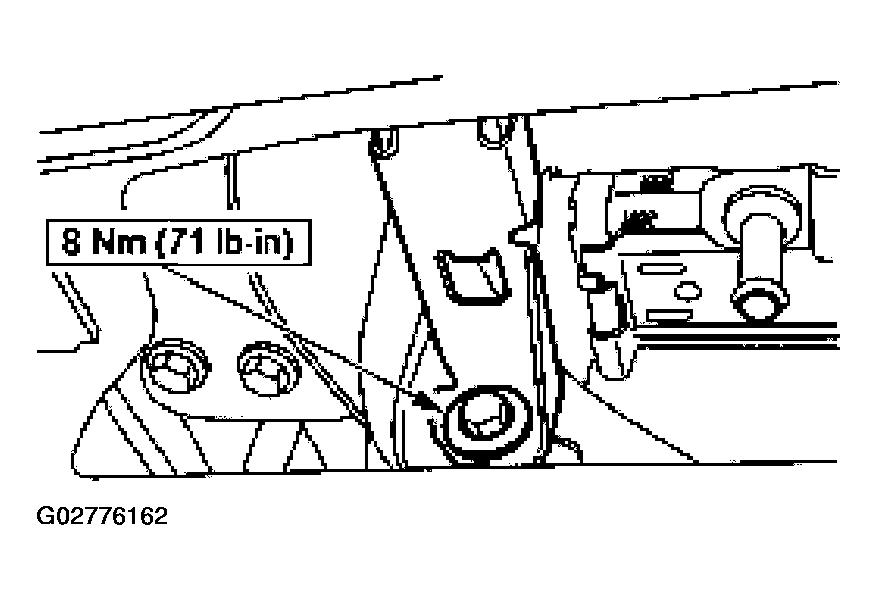

Fig 2: Installing RH Lower A/C Condenser Bracket
Courtesy of FORD MOTOR CO.
Install the LH lower A/C condenser bracket.

Fig 3: Installing LH Lower A/C Condenser Bracket
Courtesy of FORD MOTOR CO.
Connect the RH auxiliary transmission fluid cooler hose.

Fig 4: Connecting RH Auxiliary Transmission Fluid Cooler Hose
Courtesy of FORD MOTOR CO.
Connect the LH auxiliary transmission fluid cooler hose.

Fig 5: Connecting LH Auxiliary Transmission Fluid Cooler Hose
Courtesy of FORD MOTOR CO.
Connect the RH lower splash shield push pin.

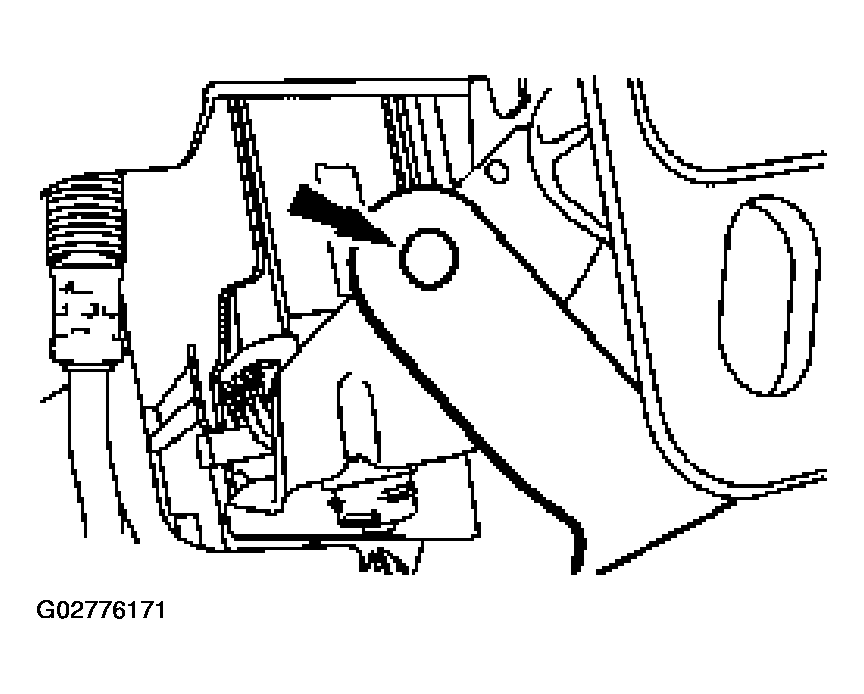

Fig 6: Connecting RH Lower Splash Shield Push Pin
Courtesy of FORD MOTOR CO.
Connect the LH lower splash shield push pin.

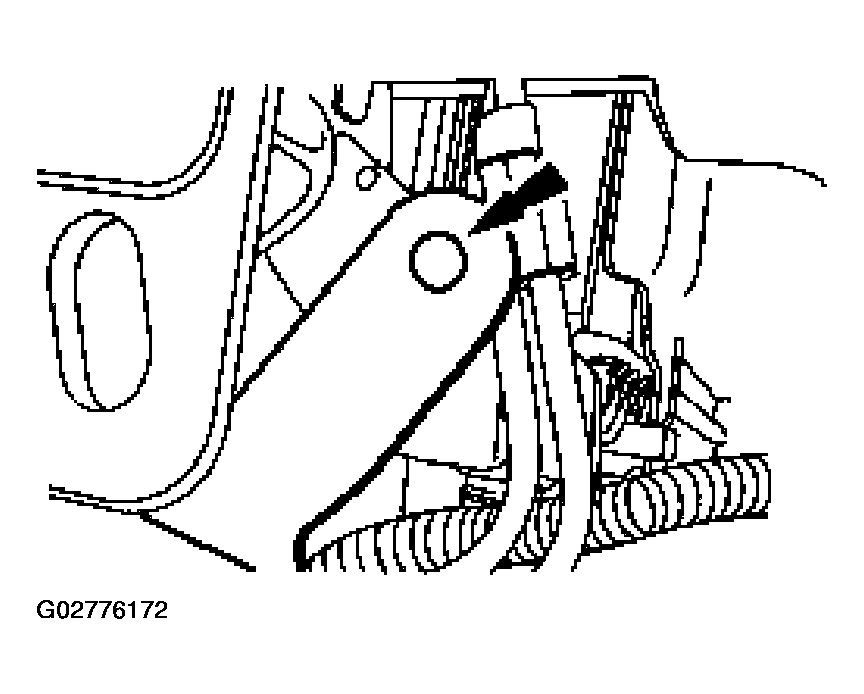

Fig 7: Connecting LH Lower Splash Shield Push Pin
Courtesy of FORD MOTOR CO.
If equipped, install the power steering cooler and install the retaining bolts.

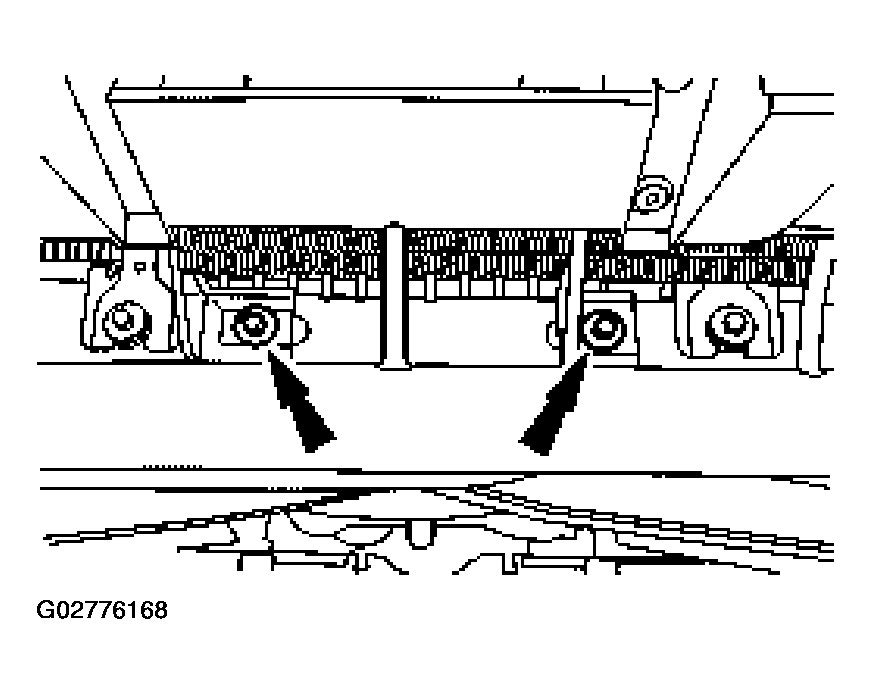

Fig 8: Installing Power Steering Cooler Bolts
Courtesy of FORD MOTOR CO.
If equipped, install the lower bumper filler and the six retainers.

Fig 9: Installing Lower Bumper Filler Retainers
Courtesy of FORD MOTOR CO.
Install the four lower splash shield push pins.

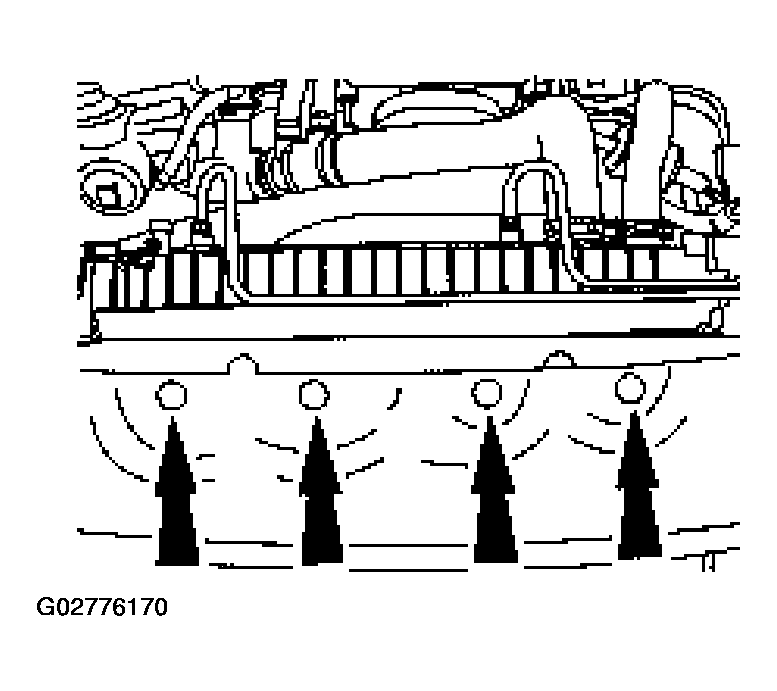

Fig 10: Installing Four Lower Splash Shield Push Pins
Courtesy of FORD MOTOR CO.
Connect the RH lower splash shield push pin.

Fig 11: Connecting RH Lower Splash Shield Push Pin
Courtesy of FORD MOTOR CO.
Connect LH lower splash shield push pin.

Fig 12: Connecting LH Lower Splash Shield Push Pin
Courtesy of FORD MOTOR CO.
Install the RH upper auxiliary transmission fluid cooler retaining bolts.

Fig 13: Installing RH Upper Auxiliary Transmission Fluid Cooler Retaining Bolts
Courtesy of FORD MOTOR CO.
Install the LH upper auxiliary transmission fluid cooler retaining bolts.

Fig 14: Installing LH Upper Auxiliary Transmission Fluid Cooler Retaining Bolts
Courtesy of FORD MOTOR CO.
Install the grille into the four lower retaining clips.

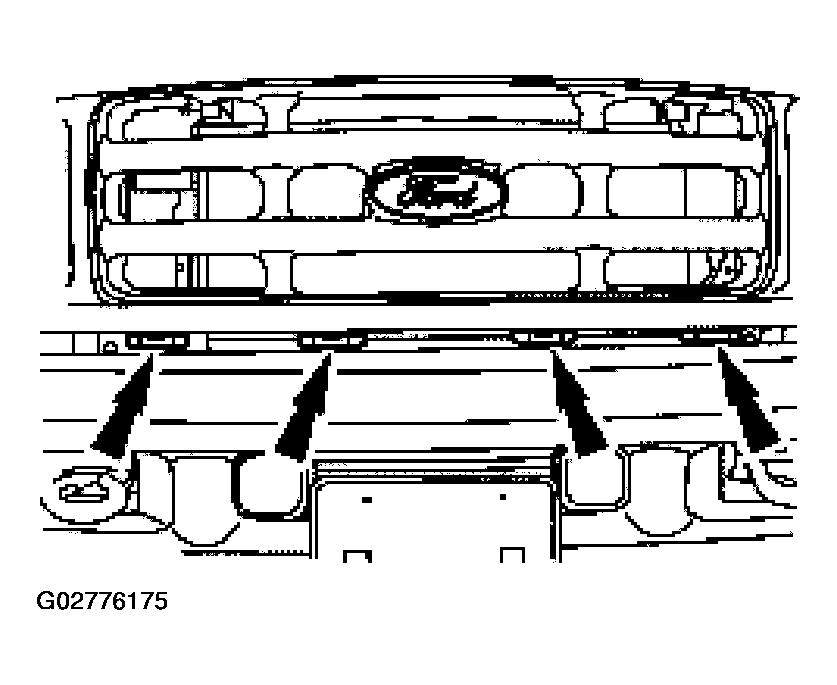

Fig 15: Installing Grille Into Four Lower Retaining Clips
Courtesy of FORD MOTOR CO.
Install the four upper grille screws.

Fig 16: Installing Upper Grille Screws
Courtesy of FORD MOTOR CO.
Fill to correct level with clean automatic transmission fluid.
