Auxiliary Transmission Fluid Cooler - Oil-to-Air Fluid Cooler, TorqShift, Excursion: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .

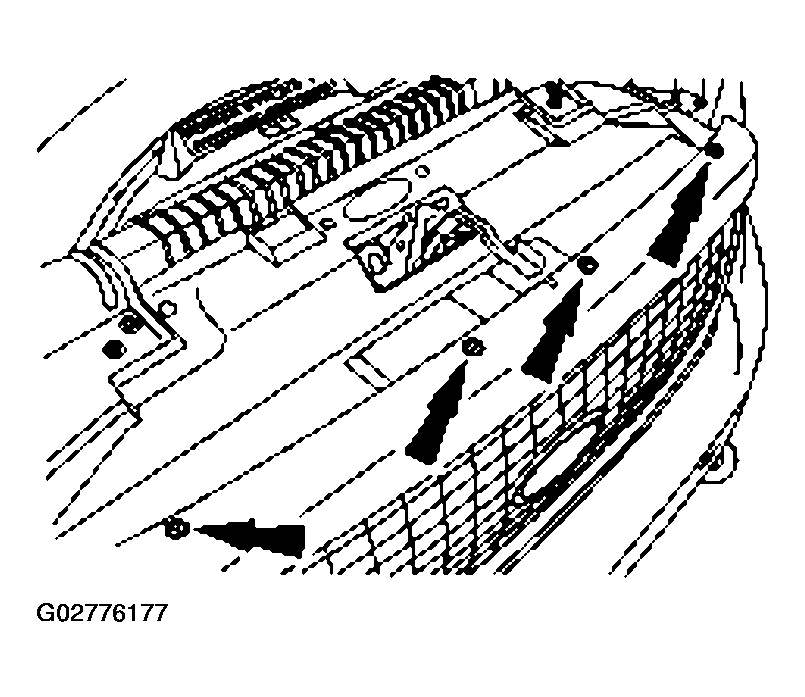

Remove the four upper grille screws.

Fig 1: Removing Upper Grille Screws
Courtesy of FORD MOTOR CO.

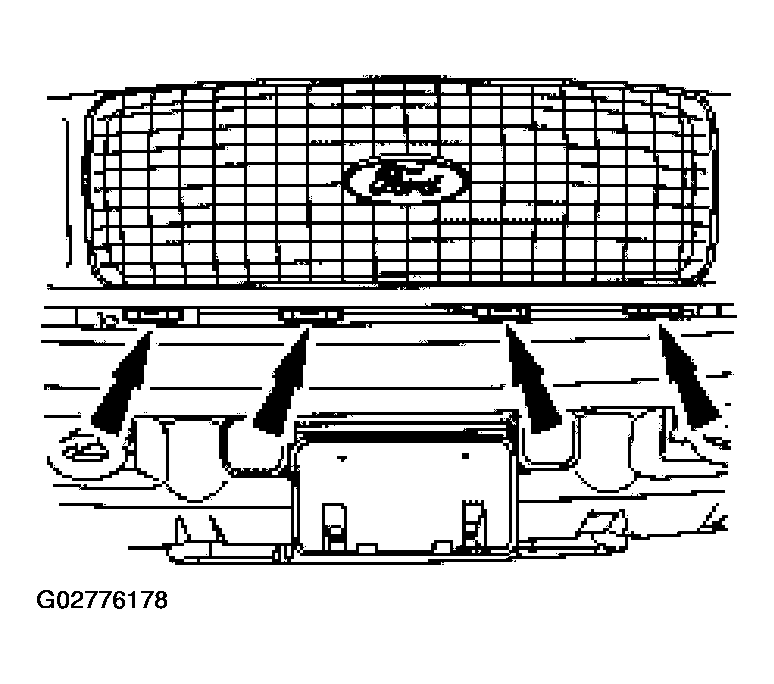

Remove the lower retaining clips and remove the grille.

Fig 2: Removing Lower Retaining Clips
Courtesy of FORD MOTOR CO.
Remove the left front lower air deflector push pin.

Fig 3: Removing Left Front Lower Air Deflector Push Pin
Courtesy of FORD MOTOR CO.
Remove the right front lower air deflector push pin.

Fig 4: Removing Right Front Lower Air Deflector Push Pin
Courtesy of FORD MOTOR CO.

NOTE: The LH and RH air deflectors must be positioned out of the way to access the retaining bolts.

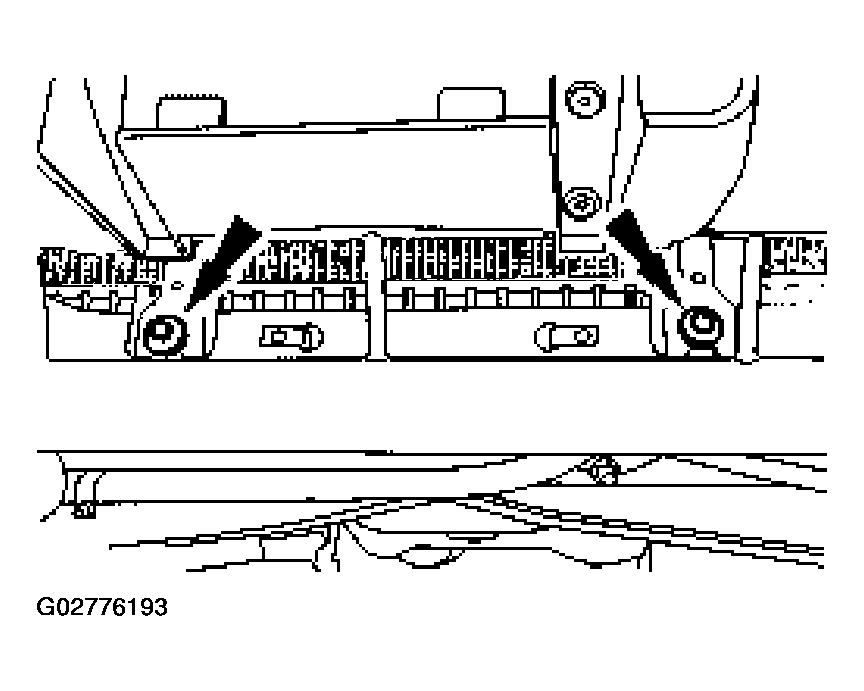

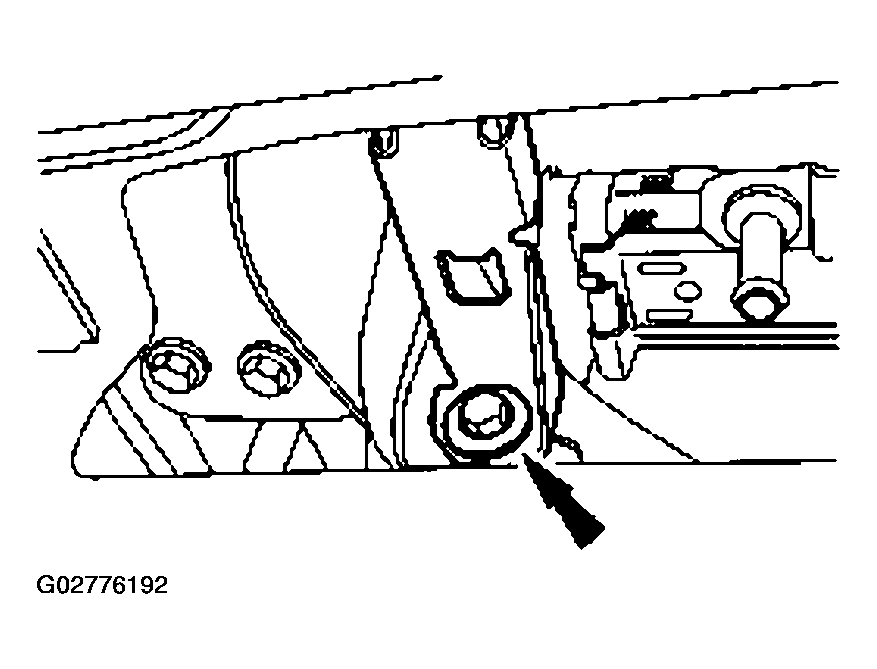

Fig 5: Removing LH And RH Upper Auxiliary Transmission Fluid Cooler Retaining Bolts

Courtesy of FORD MOTOR CO.

Remove the LH and RH upper auxiliary transmission fluid cooler retaining bolts.
Disconnect both the LH lower splash shield push pins.

Fig 6: Disconnecting Both LH Lower Splash Shield Push Pins
Courtesy of FORD MOTOR CO.
Disconnect both the RH lower splash shield push pins.

Fig 7: Disconnecting Both RH Lower Splash Shield Push Pins
Courtesy of FORD MOTOR CO.

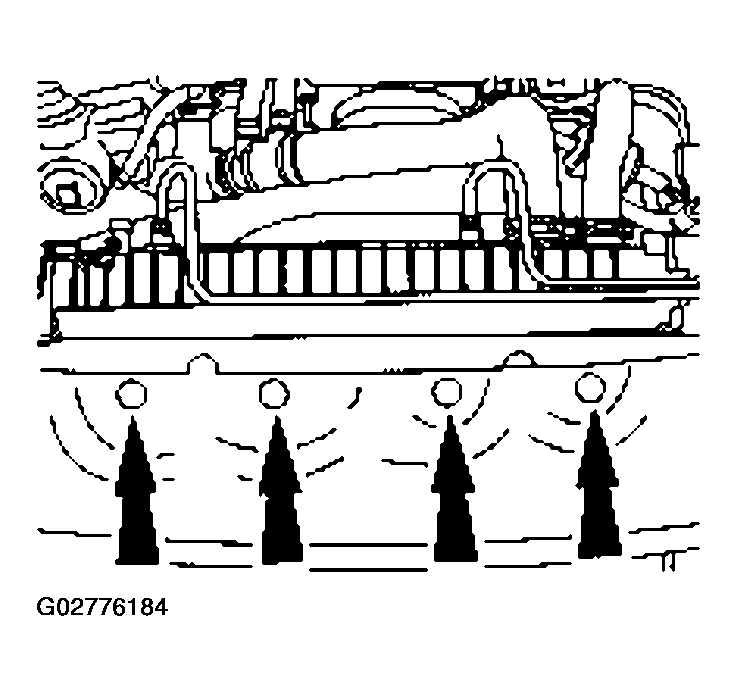

Remove the four lower splash shield push pins.

Fig 8: Removing Lower Splash Shield Push Pins
Courtesy of FORD MOTOR CO.
If equipped, remove the six retainers and remove the lower bumper filler.

Fig 9: Removing Lower Bumper Filler Retainers
Courtesy of FORD MOTOR CO.
If equipped, remove the power steering cooler retaining bolts and position the power steering cooler out of the way.

Fig 10: Removing Power Steering Cooler Retaining Bolts
Courtesy of FORD MOTOR CO.
Disconnect the LH lower splash shield push pin to gain access to the A/C condenser bracket.

Fig 11: Disconnecting LH Lower Splash Shield Push Pin
Courtesy of FORD MOTOR CO.
Disconnect the RH lower splash shield push pin to gain access to the A/C condenser bracket.

Fig 12: Disconnecting RH Lower Splash Shield Push Pin
Courtesy of FORD MOTOR CO.

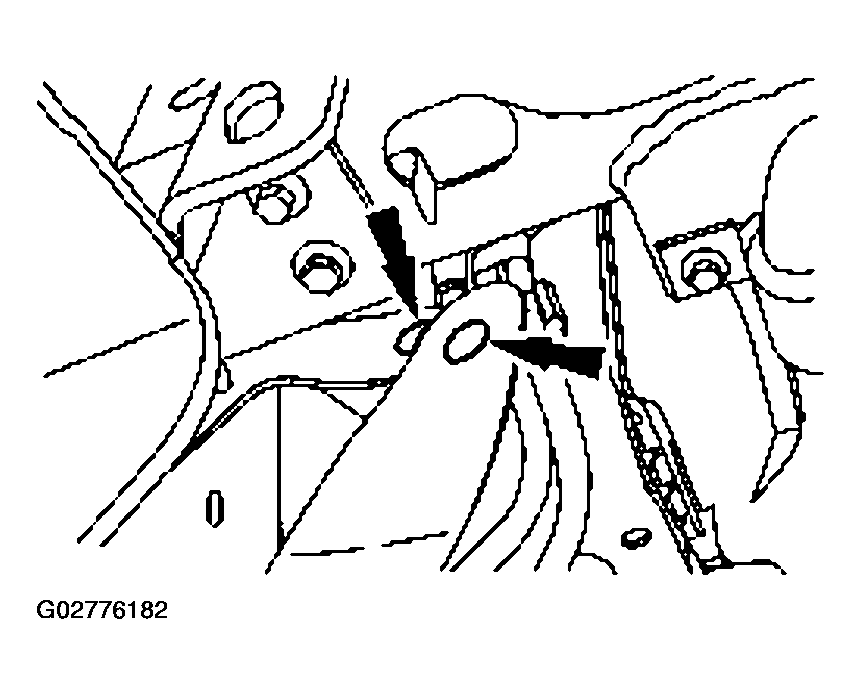

Disconnect the LH auxiliary transmission fluid cooler hose.

Fig 13: Disconnecting LH Auxiliary Transmission Fluid Cooler Hose
Courtesy of FORD MOTOR CO.

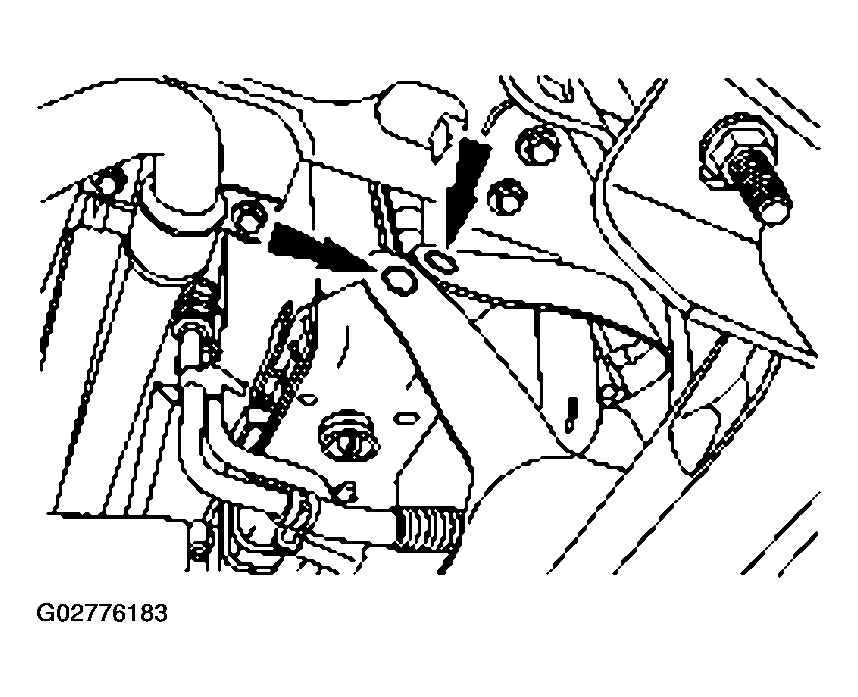

Disconnect the RH auxiliary transmission fluid cooler hose.

Fig 14: Disconnecting RH Auxiliary Transmission Fluid Cooler Hose
Courtesy of FORD MOTOR CO.
Remove the LH lower A/C condenser bracket.

Fig 15: Removing LH Lower A/C Condenser Bracket
Courtesy of FORD MOTOR CO.

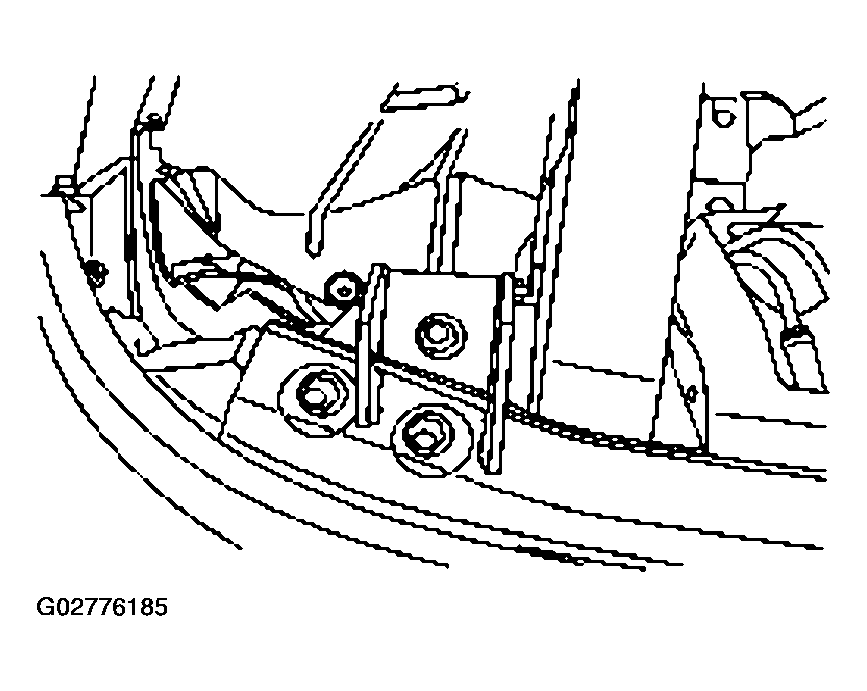

Remove the RH lower A/C condenser bracket.

Fig 16: Removing RH Lower A/C Condenser Bracket
Courtesy of FORD MOTOR CO.

NOTE: The auxiliary transmission fluid cooler must be lifted up off the lower frame and moved toward the front of the vehicle so the lower brackets can clear the frame.

NOTE: It is necessary to move the A/C condenser toward the front of the vehicle to remove the auxiliary transmission fluid cooler.

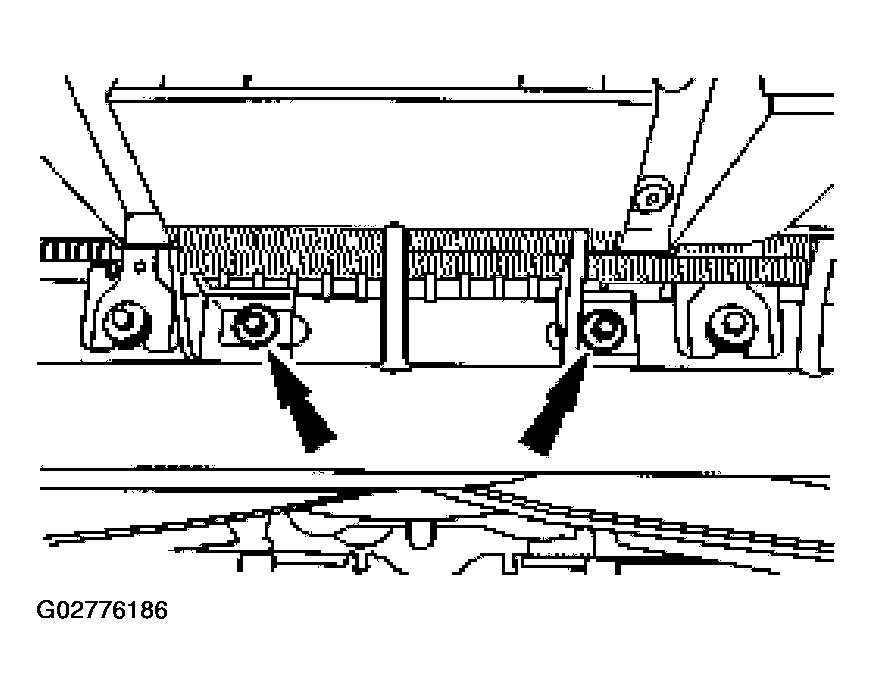

Fig 17: Removing Bolts Of Auxiliary Transmission Fluid Cooler

Courtesy of FORD MOTOR CO.

Remove the bolts and the auxiliary transmission fluid cooler.
