Auxiliary Transmission Fluid Cooler - Oil-to-Air Fluid Cooler, TorqShift, Excursion: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: It is necessary to move the A/C condenser toward the front of the vehicle to install the auxiliary transmission fluid cooler.

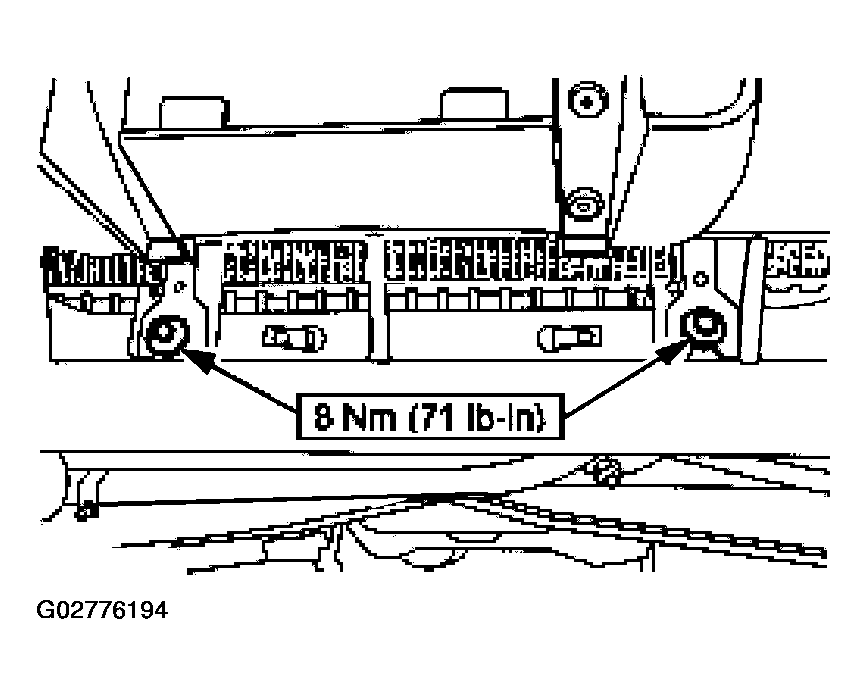

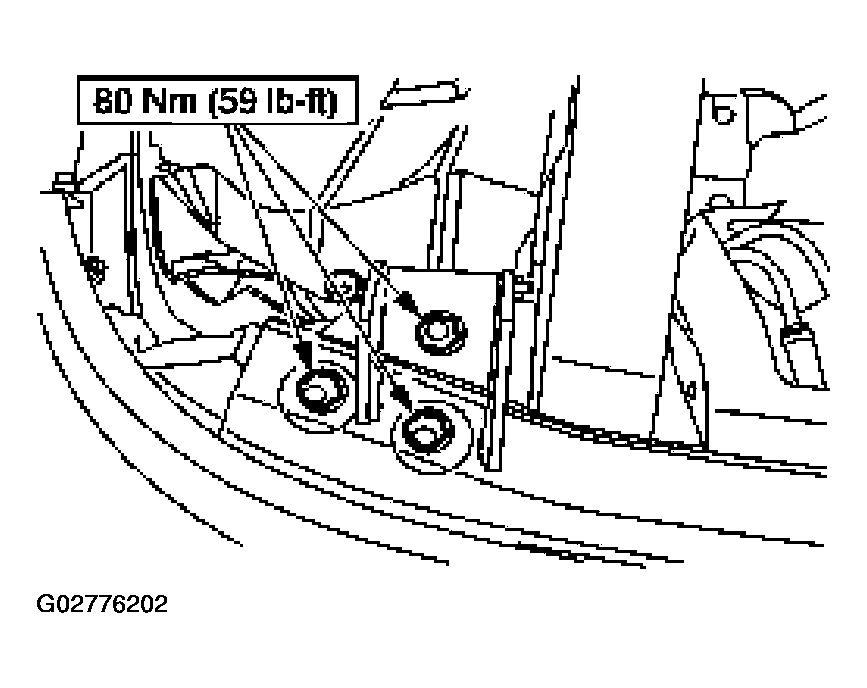

Fig 1: Installing Auxiliary Transmission Fluid Cooler Bolts

Courtesy of FORD MOTOR CO.

Install the auxiliary transmission fluid cooler and the bolts.
Install the RH lower A/C condenser bracket.

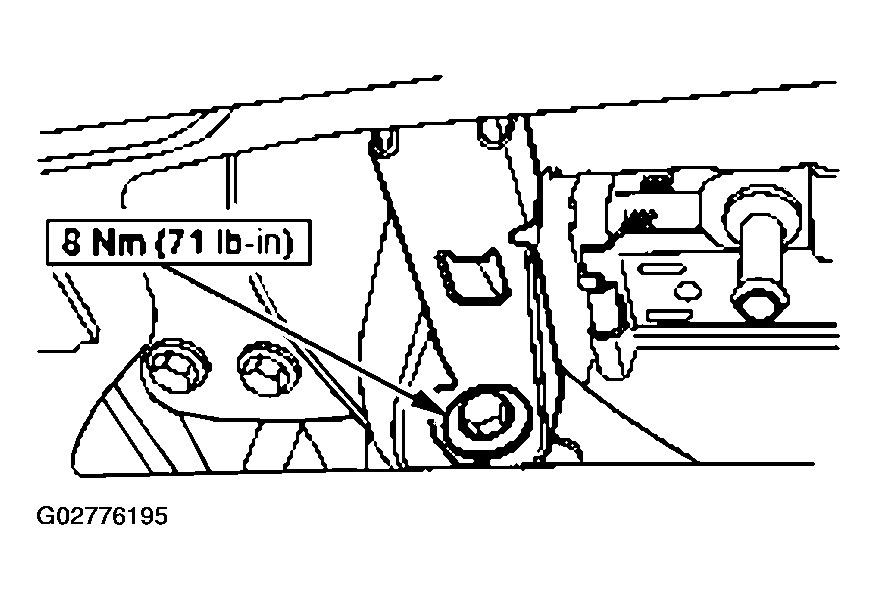

Fig 2: Installing RH Lower A/C Condenser Bracket
Courtesy of FORD MOTOR CO.
Install the LH lower A/C condenser bracket.

Fig 3: Installing LH Lower A/C Condenser Bracket
Courtesy of FORD MOTOR CO.
Connect the RH auxiliary transmission fluid cooler hose.

Fig 4: Connecting RH Auxiliary Transmission Fluid Cooler Hose
Courtesy of FORD MOTOR CO.
Connect the LH auxiliary transmission fluid cooler hose.

Fig 5: Connecting LH Auxiliary Transmission Fluid Cooler Hose
Courtesy of FORD MOTOR CO.
Connect the RH lower splash shield push pin to gain access to the A/C condenser bracket.

Fig 6: Connecting RH Lower Splash Shield Push Pin
Courtesy of FORD MOTOR CO.
Connect the LH lower splash shield push pin to gain access to the A/C condenser bracket.

Fig 7: Connecting LH Lower Splash Shield Push Pin
Courtesy of FORD MOTOR CO.
If equipped, install the power steering cooler and install the retaining bolts.

Fig 8: Installing Power Steering Cooler Retaining Bolts
Courtesy of FORD MOTOR CO.
If equipped, install the lower bumper filler and install the six retainers.

Fig 9: Installing Lower Bumper Filler
Courtesy of FORD MOTOR CO.

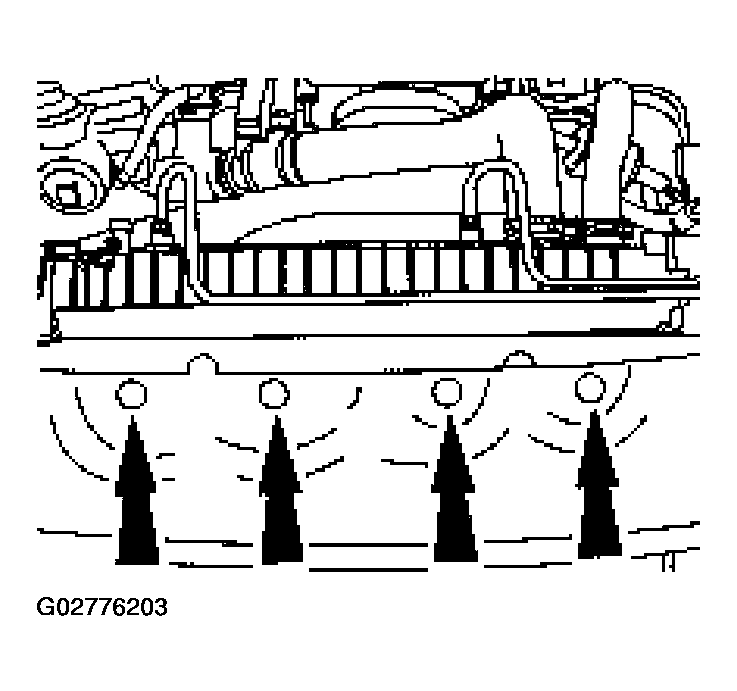

Install the four lower splash shield push pins.

Fig 10: Installing Four Lower Splash Shield Push Pins
Courtesy of FORD MOTOR CO.

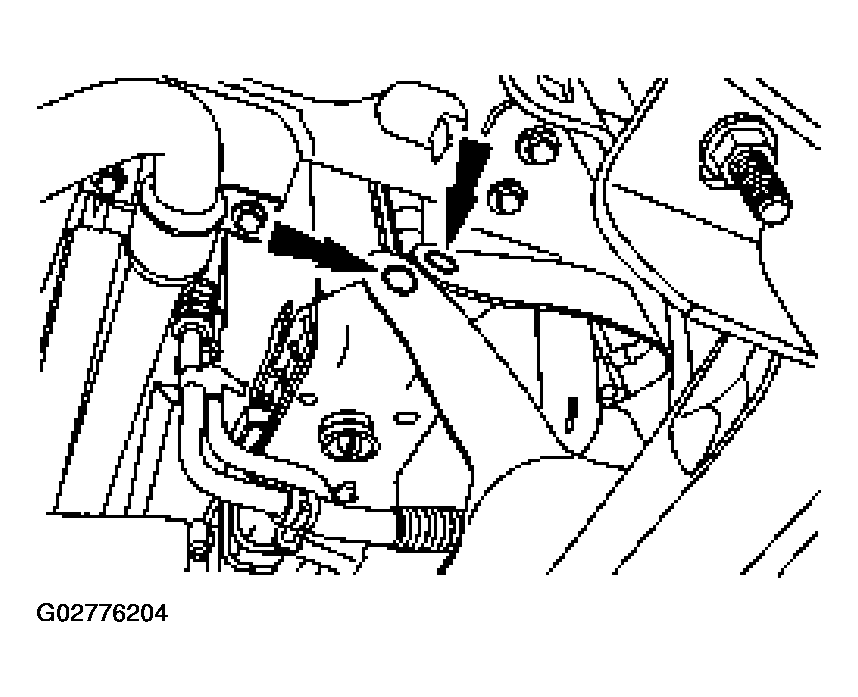

Connect both the RH lower splash shield push pins.

Fig 11: Connecting Both RH Lower Splash Shield Push Pins
Courtesy of FORD MOTOR CO.

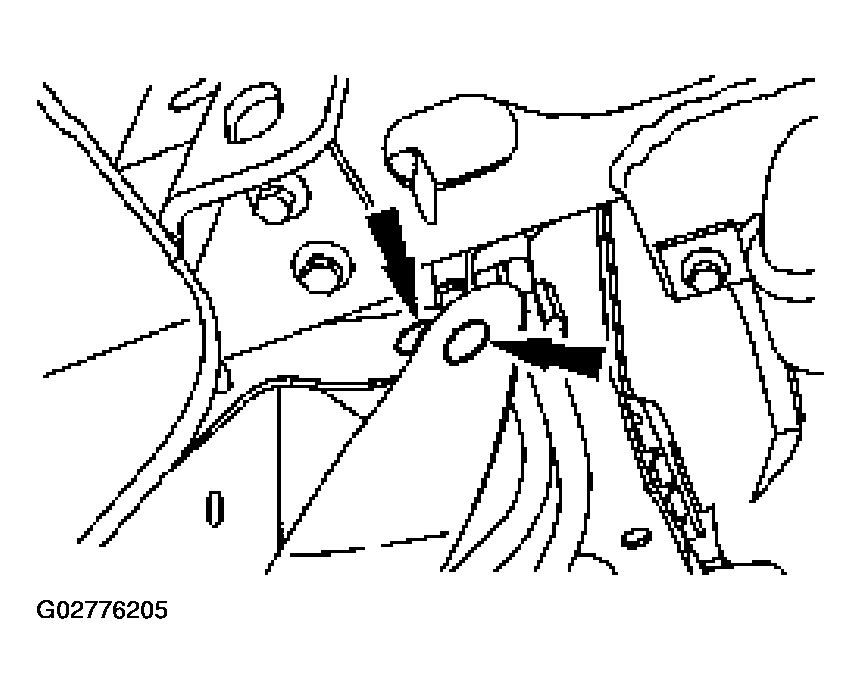

Connect both the LH lower splash shield push pins.

Fig 12: Connecting Both LH Lower Splash Shield Push Pins
Courtesy of FORD MOTOR CO.

NOTE: The LH and RH air deflectors must be positioned out of the way to install the retaining bolts.

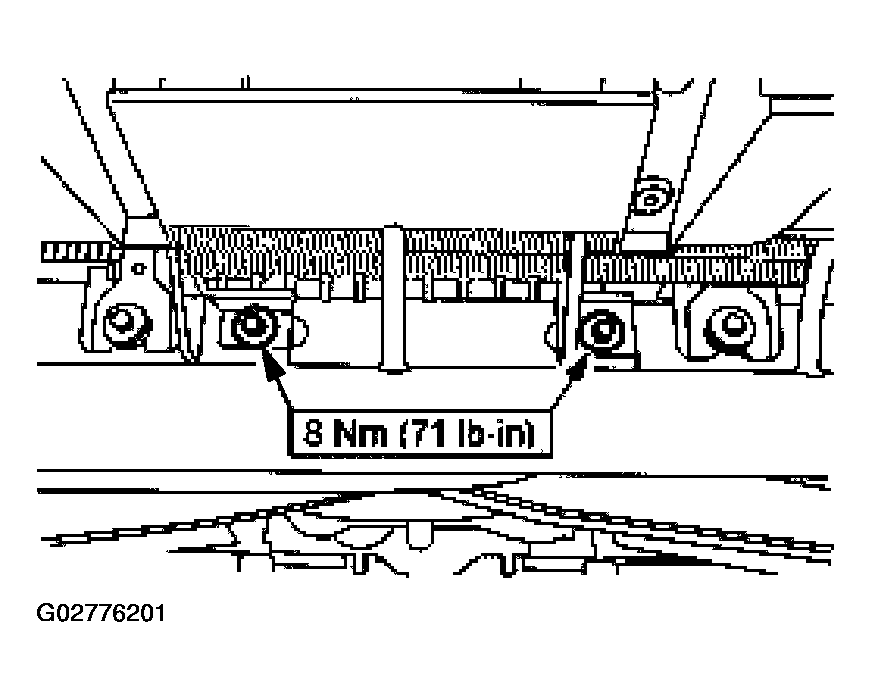

Fig 13: Installing LH And RH Upper Auxiliary Transmission Fluid Cooler Retaining Bolts

Courtesy of FORD MOTOR CO.

Install the LH and RH upper auxiliary transmission fluid cooler retaining bolts.
Install the RH front lower air deflector push pin.

Fig 14: Installing RH Front Lower Air Deflector Push Pin
Courtesy of FORD MOTOR CO.
Install the LH front lower air deflector push pin.

Fig 15: Installing LH Front Lower Air Deflector Push Pin
Courtesy of FORD MOTOR CO.

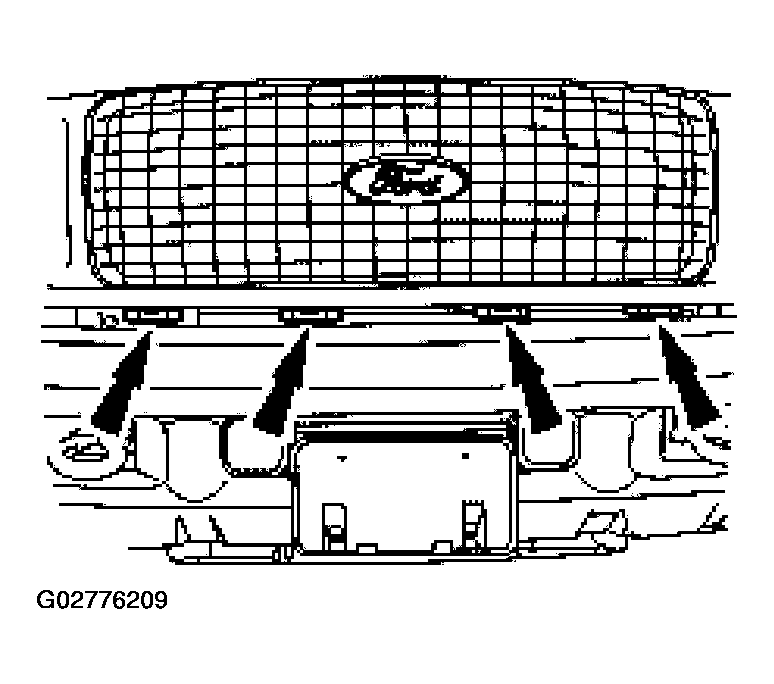

Install the grille into the four lower retaining clips.

Fig 16: Installing Grille Into Four Lower Retaining Clips
Courtesy of FORD MOTOR CO.

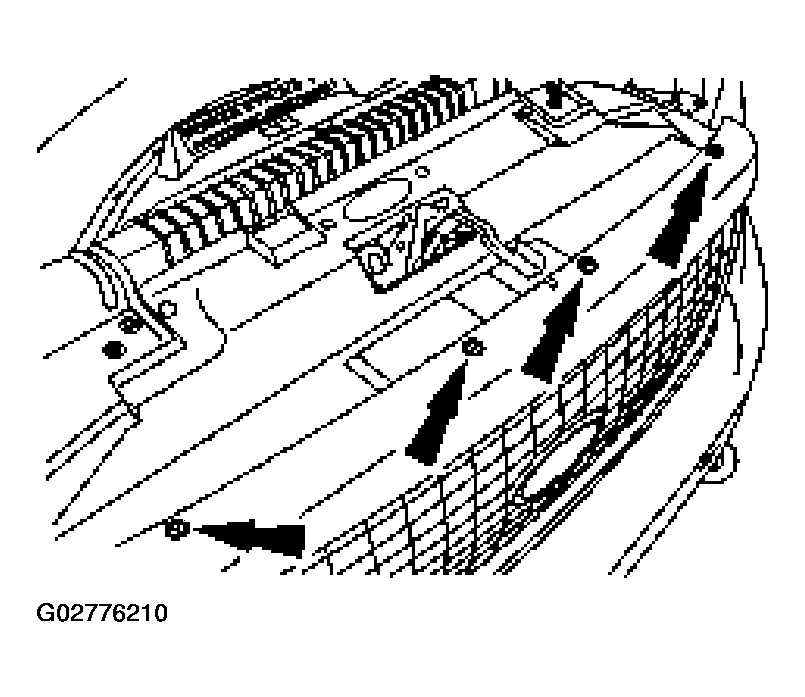

Install the four upper grille screws.

Fig 17: Installing Four Upper Grille Screws
Courtesy of FORD MOTOR CO.
Fill to correct level with clean automatic transmission fluid.
