Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This procedure will not be applicable to all vehicle applications. Some vehicles will not have the pressure switches or the harness installed in the valve body.

Remove the transmission fluid pan, gasket and filter. Refer to FLUID PAN, GASKET AND FILTER .
Disconnect the affected pressure switch electrical connector (if equipped).

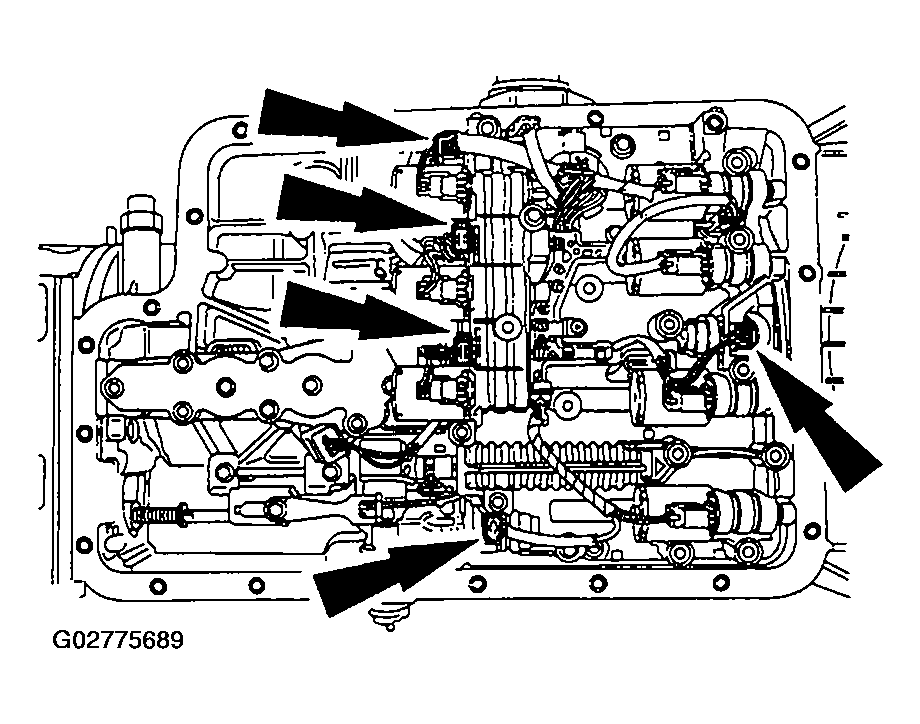

Fig 1: Disconnecting Affected Pressure Switch Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the affected pressure switch (if equipped).
- Remove the retaining "W" clip.
- Remove the affected pressure switch (if equipped).

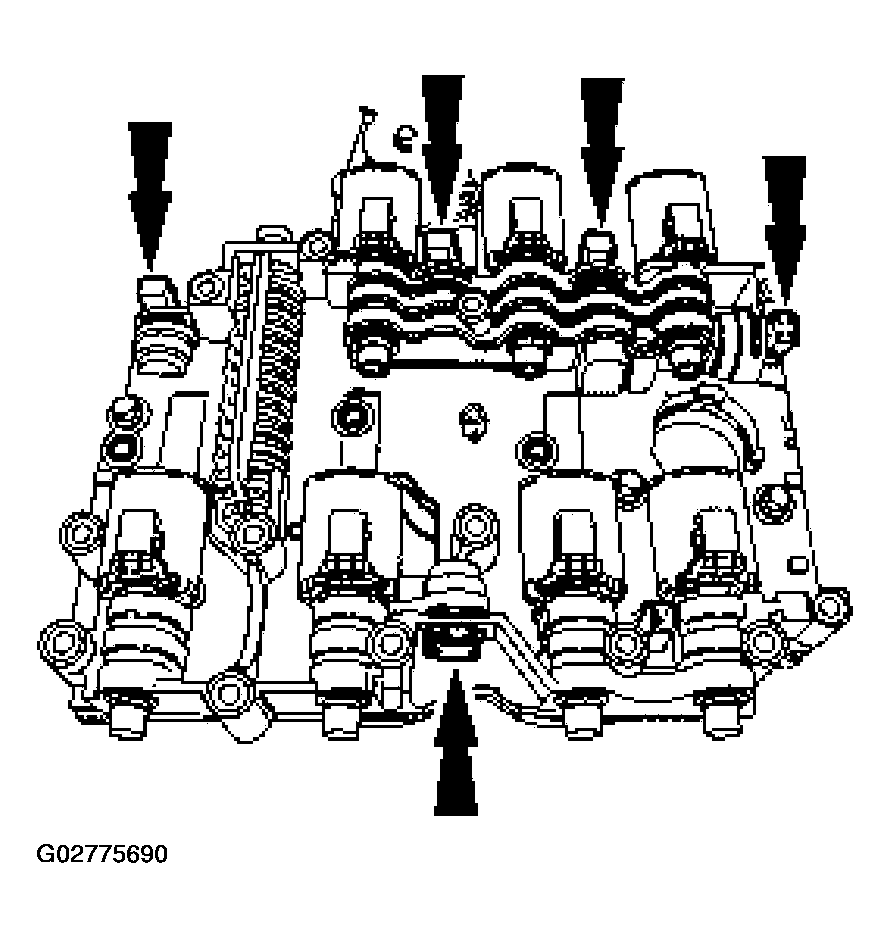

  Fig 2: Removing Affected Pressure Switch
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
