Transmission Fluid Temperature (TFT) Sensor: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The pressure switches shown in this procedure will not be applicable to all vehicle applications. Some vehicles will not have the pressure switches or the harness installed in the valve body.
  1. Remove the transmission fluid pan gasket and filter. Refer to FLUID PAN, GASKET AND FILTER .
  2. Disconnect the transmission fluid temperature (TFT) sensor electrical connector.

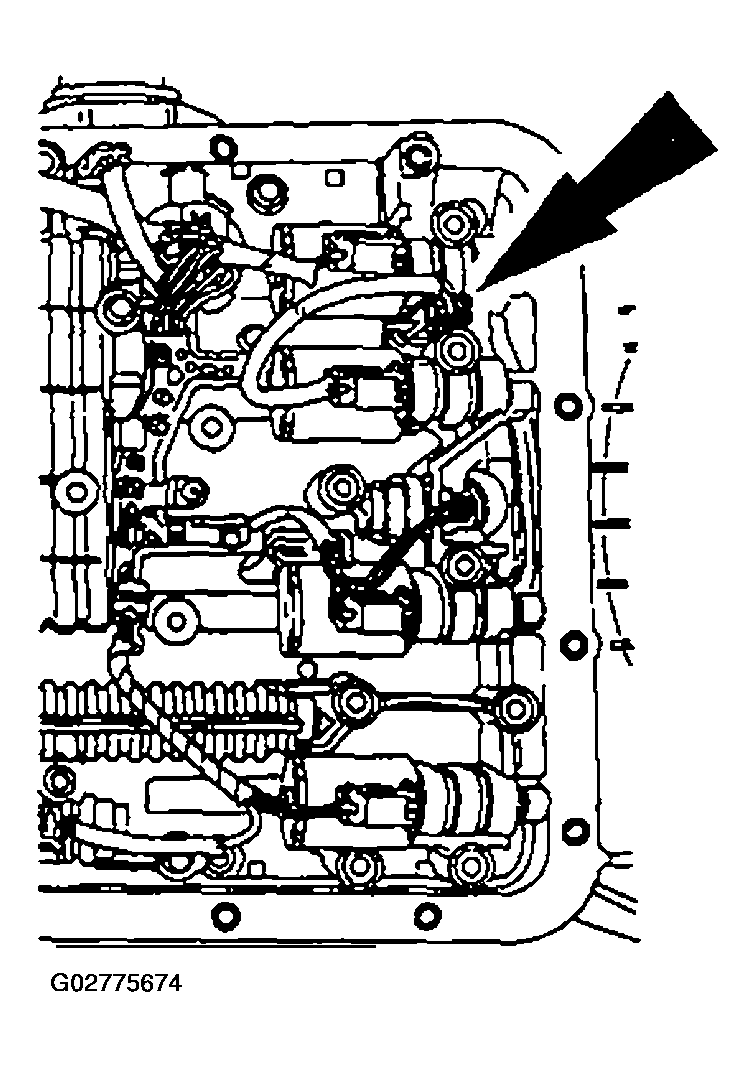

    Fig 1: Disconnecting Transmission Fluid Temperature Sensor Electrical Connector
    G02775674Courtesy of FORD MOTOR CO.
  3. Press the tab, rotate the sensor counterclockwise and pull out.

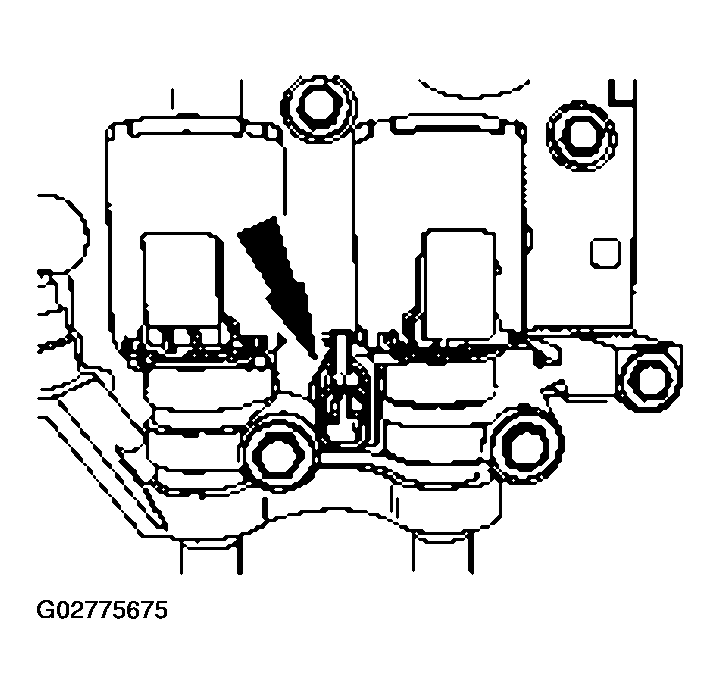

    Fig 2: Removing Sensor
    G02775675Courtesy of FORD MOTOR CO.
  4. Inspect the O-ring. If O-ring is damaged install a new O-ring.
