Transmission Filler Tube: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new O-ring if damaged.
    Fig 1: Installing O-Ring
    G02775597Courtesy of FORD MOTOR CO.
    2. NOTE: Coat the O-ring at the bottom of the transmission fluid filler tube with transmission fluid.
    Fig 2: Installing Transmission Fluid Filler Tube
    G02775598Courtesy of FORD MOTOR CO.
  2. Install the transmission fluid filler tube.
  3. Install the transmission fluid filler tube nut.

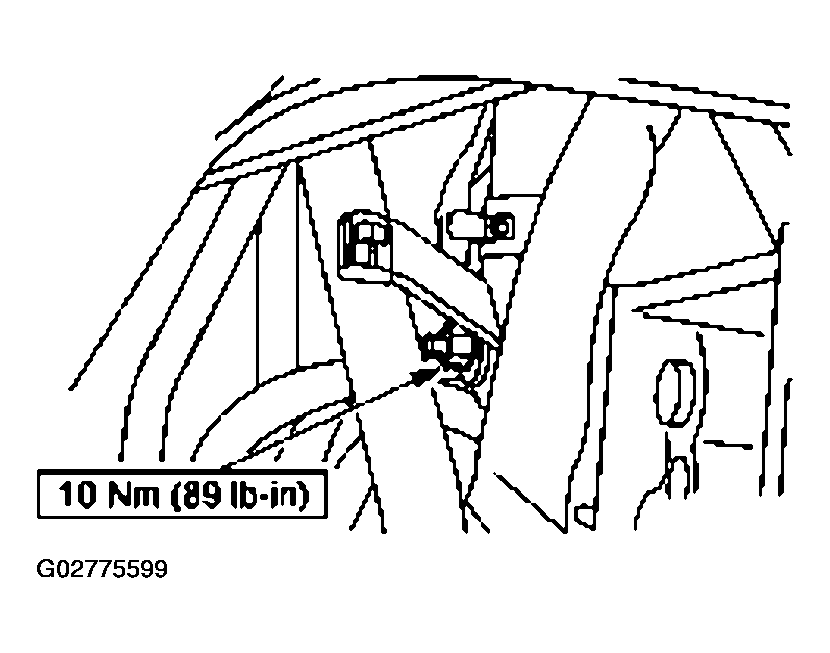

    Fig 3: Installing Transmission Fluid Filler Tube Nut
    G02775599Courtesy of FORD MOTOR CO.
  4. Install the fluid level indicator.
    Fig 4: Installing Fluid Level Indicator
    G02775600Courtesy of FORD MOTOR CO.
