Output Shaft Speed (OSS) Sensor: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

4x4 vehicles

  1. Install the output shaft speed (OSS) sensor.
    1. Lubricate the O-ring and install the output shaft speed (OSS) sensor.
    2. Install the bolt.

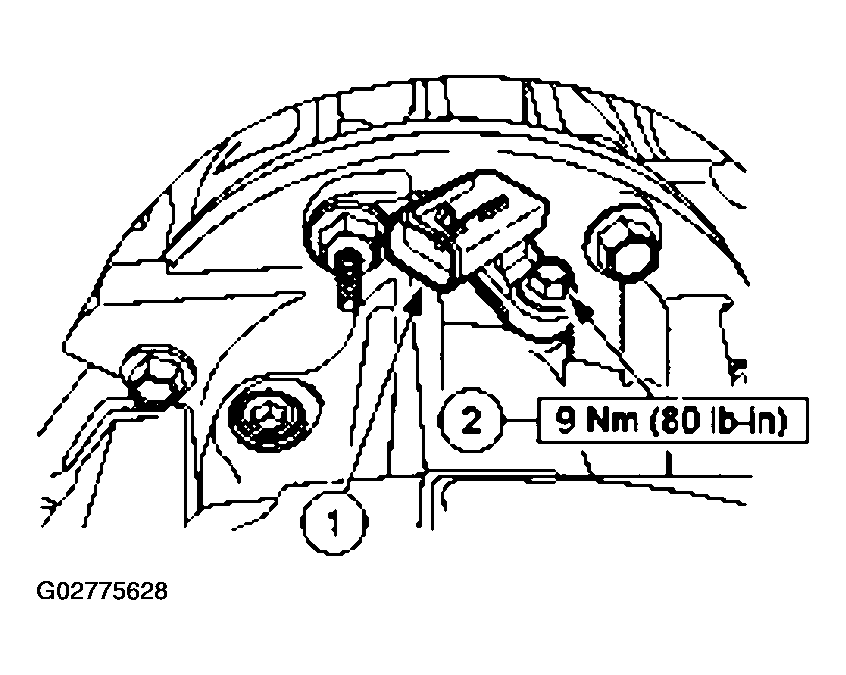

      Fig 1: Installing Output Shaft Speed Sensor
      G02775628Courtesy of FORD MOTOR CO.

    4x2 vehicles

  2. Install the output shaft speed (OSS) sensor.
    1. Lubricate the O-ring and install the output shaft speed (OSS) sensor.
    2. Install the bolt.

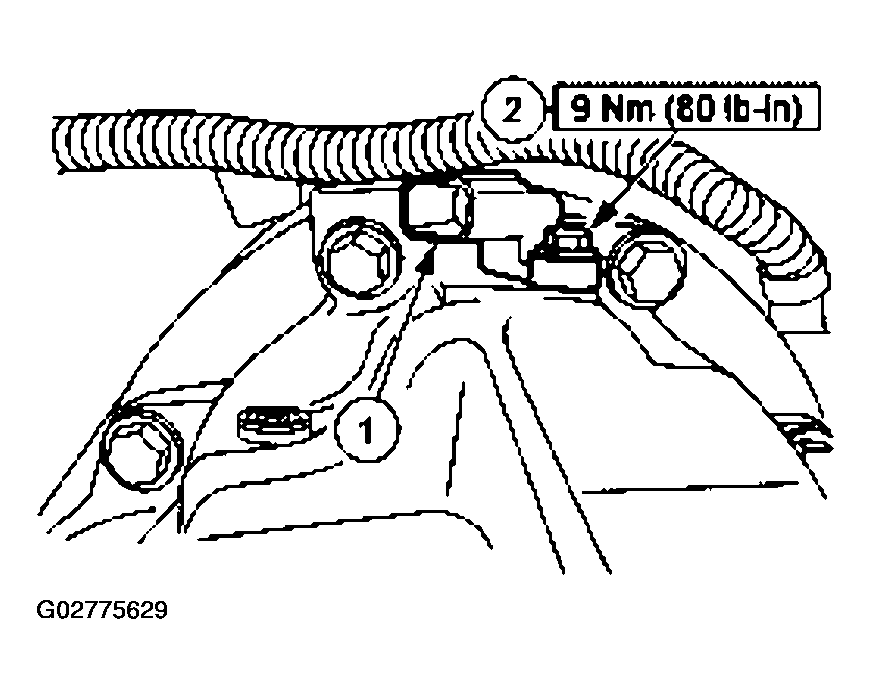

      Fig 2: Installing Output Shaft Speed Sensor
      G02775629Courtesy of FORD MOTOR CO.

    All vehicles

  3. Connect the output shaft speed (OSS) sensor electrical connector.
    Fig 3: Connecting Output Shaft Speed Sensor Electrical Connector
    G02775630Courtesy of FORD MOTOR CO.
