Manual Control Lever Shaft And Seal: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Prior to installing the manual control lever seal, clean the bore opening with mineral spirits.

Fig 1: Installing Manual Control Lever Seal

Courtesy of FORD MOTOR CO.

Using the special tool, install the manual control lever seal.
Loosen the two bolts on the transmission range sensor.

Fig 2: Loosening Two Bolts On Transmission Range Sensor
Courtesy of FORD MOTOR CO.
Install the manual control lever shaft.

Fig 3: Installing Manual Control Lever Shaft
Courtesy of FORD MOTOR CO.

NOTE: Leave a small portion of the pin exposed.

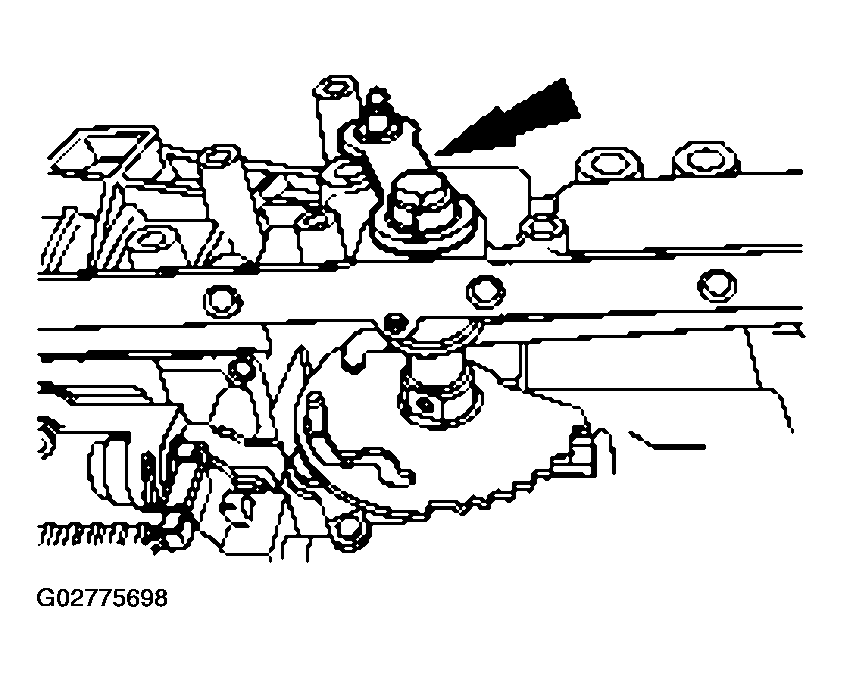

Fig 4: Installing Manual Valve Detent Lever Shaft Retaining Pin

Courtesy of FORD MOTOR CO.

Install the manual valve detent lever shaft retaining pin into the case.

NOTE: When the retaining pin is installed correctly, 2 mm (0.08 in) of the pin will be exposed.

Fig 5: Installing Manual Valve Detent Lever Shaft Retaining Pin

Courtesy of FORD MOTOR CO.

Install a new manual valve detent lever shaft retaining pin.
Tighten the bolts.

Fig 6: Tightening Bolts
Courtesy of FORD MOTOR CO.
Install the transmission fluid pan, gasket and filter.
Connect the shift cable end.

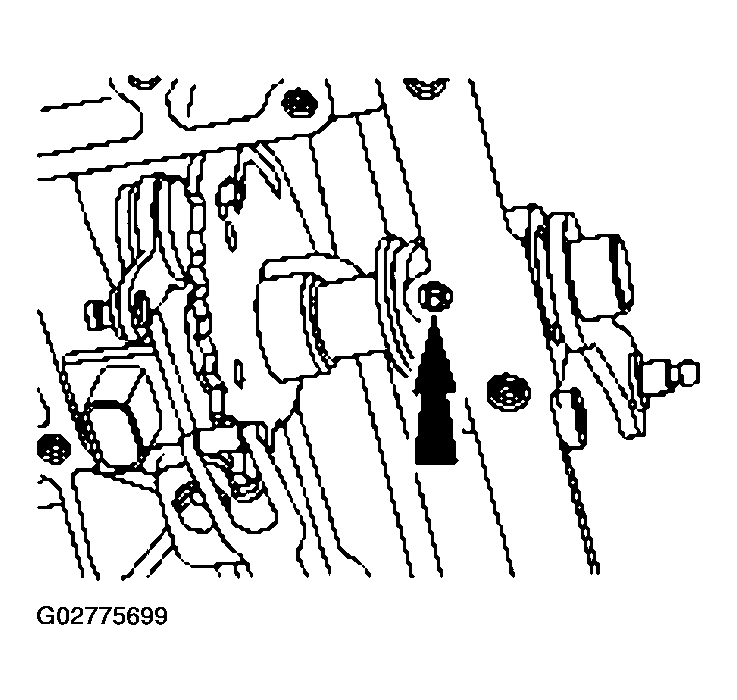

Fig 7: Connecting Shift Cable End
Courtesy of FORD MOTOR CO.
Adjust the shift linkage. Verify that the vehicle starts in PARK and NEUTRAL and the REVERSE lamps illuminate in REVERSE. Refer to AUTOMATIC TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS .
