Main Control Valve Body: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new solenoid body gasket.
    Fig 1: Installing Solenoid Body Gasket
    G02775605Courtesy of FORD MOTOR CO.
  2. Use petroleum jelly to hold the forward clutch orifice in place on the top of the forward clutch feed bolt.

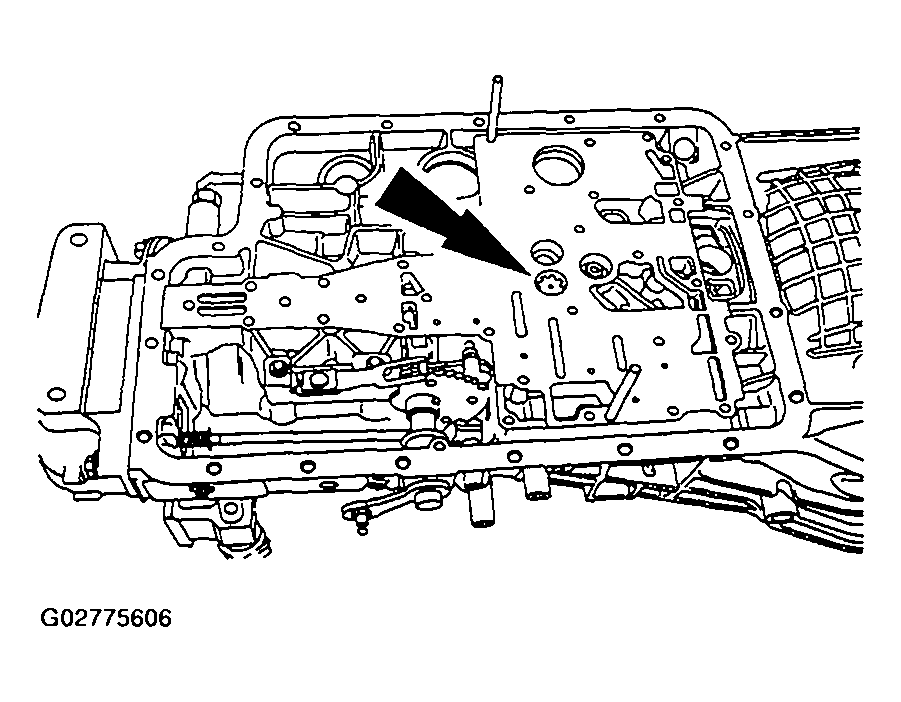

    Fig 2: Identifying Forward Clutch Feed Bolt
    G02775606Courtesy of FORD MOTOR CO.
  3. Using the special tools, install the solenoid body and loosely install the bolts.
    • While installing the solenoid body, align the manual valve.

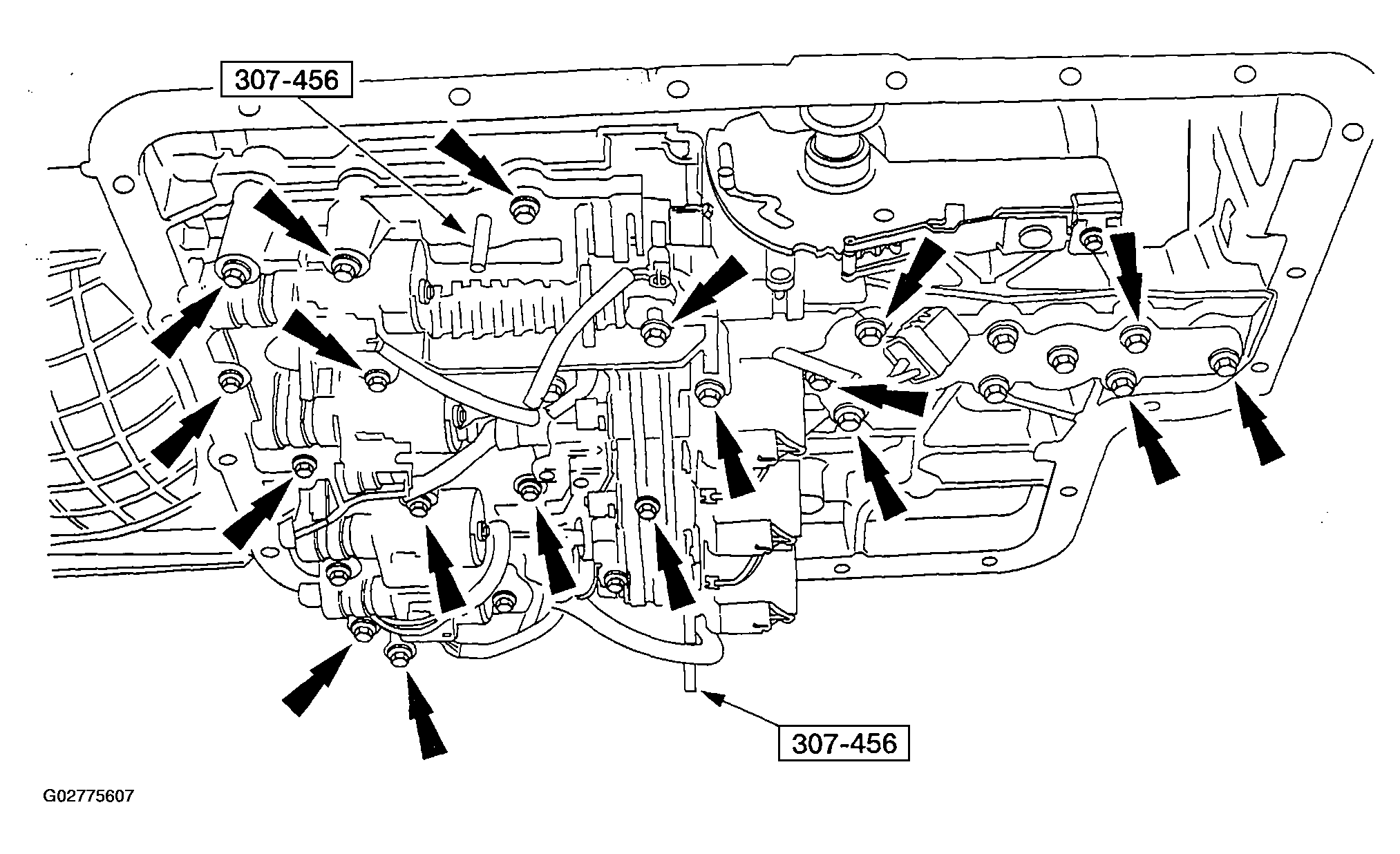

      Fig 3: Installing Solenoid Body Bolts
      G02775607Courtesy of FORD MOTOR CO.
  4. Tighten all the bolts in the sequence shown.
    Fig 4: Tightening Bolts
    G02775608Courtesy of FORD MOTOR CO.
  5. Connect the transmission range sensor connector.
    Fig 5: Connecting Transmission Range Sensor Connector
    G02775609Courtesy of FORD MOTOR CO.
  6. Install the transmission fluid filter, pan gasket and pan.
  7. Connect the solenoid body electrical connector.
    Fig 6: Connecting Solenoid Body Electrical Connector
    G02775610Courtesy of FORD MOTOR CO.
