Line Pressure Control Solenoid - Pc-A: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble the main control valve body.
    1. Install the pressure control solenoid (PC-A) and install the (E) retaining clip.
    2. Push the bulkhead connector through the solenoid body and twist the bulkhead connector locking it into place
    3. Install the shift solenoid (SSPC-C) back into place and install the (E) retaining clip.
    4. Connect the electrical connectors to the pressure control solenoid (PC-A) and the shift solenoid (SSPC-C).
    5. Install the wire harness to solenoid body and tighten the bolts.

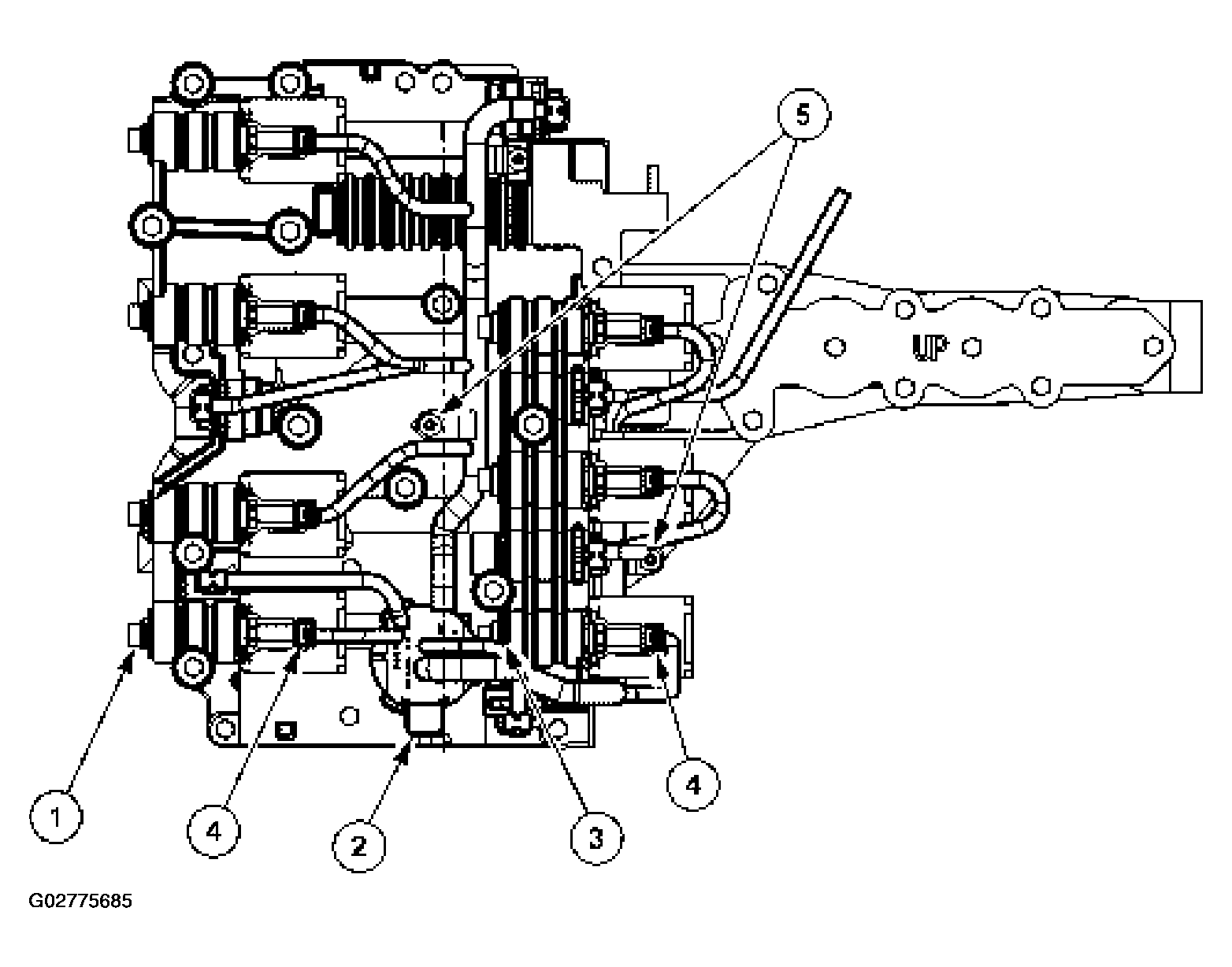

      Fig 1: Illustration Steps-1, 2, 3, 4 And 5
      G02775685Courtesy of FORD MOTOR CO.
  2. Remove the solenoid body electrical connector O-ring seal.
    Fig 2: Removing Solenoid Body Electrical Connector O-Ring Seal
    G02775686Courtesy of FORD MOTOR CO.
  3. Install the transmission main control valve body. Refer to MAIN CONTROL VALVE BODY .
