Internal Harness Service: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The pressure switches shown in this procedure will not be applicable to all vehicle applications. Some vehicles will not have the pressure switches or the harness installed in the valve body.
NOTE: The new style harness will not have connectors for pressure switches.
  1. Remove the main control solenoid body. Refer to MAIN CONTROL VALVE BODY .
  2. Disconnect the internal wiring harness.
    1. Remove the two screws.
    2. Disconnect the transmission fluid temperature sensor electrical connector.
    3. Disconnect the pressure switch electrical connectors (if equipped).
    4. Disconnect the solenoid electrical connectors.

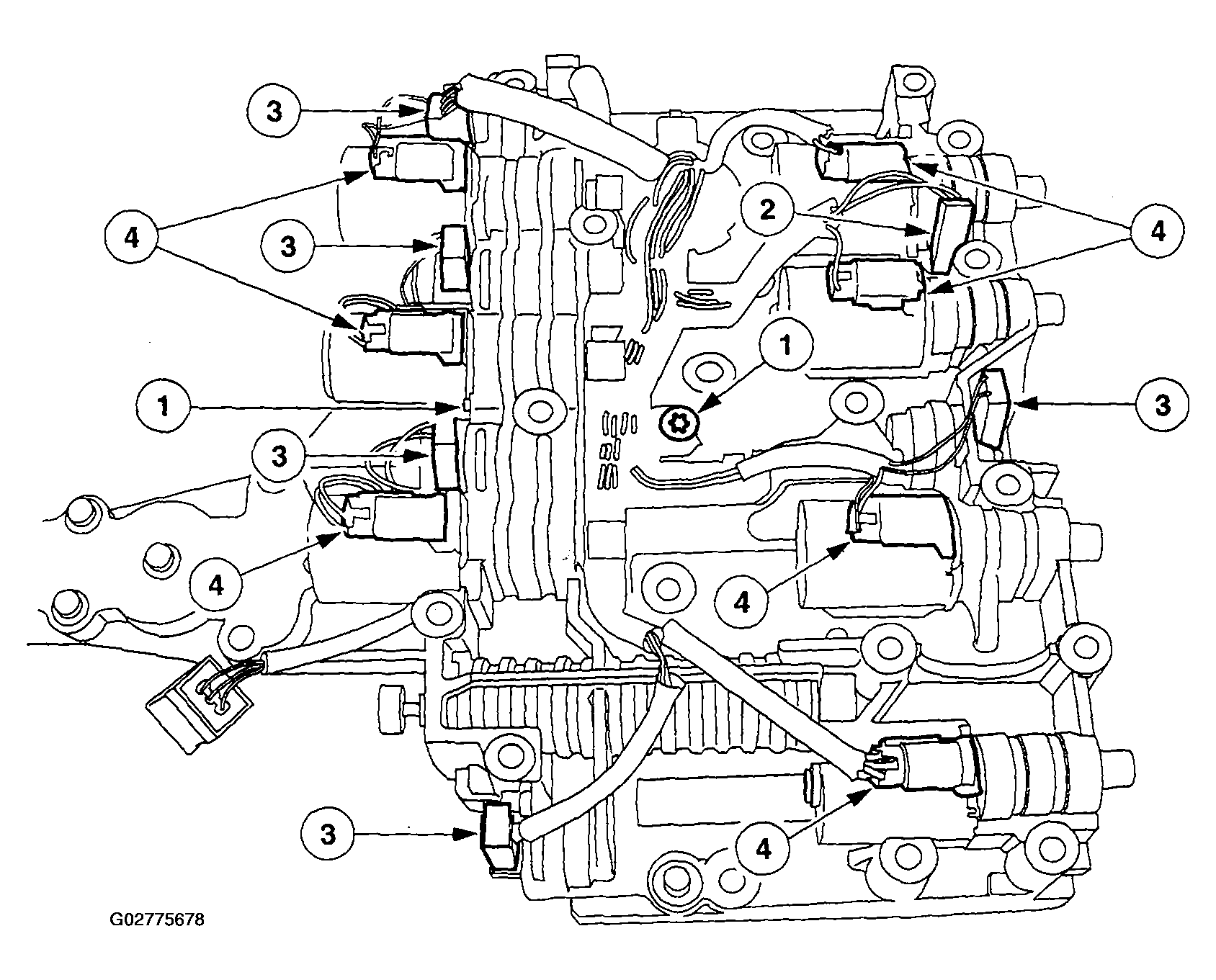

      Fig 1: Disconnecting Internal Wiring Harness
      G02775678Courtesy of FORD MOTOR CO.
  3. Remove the bulkhead connector O-ring.

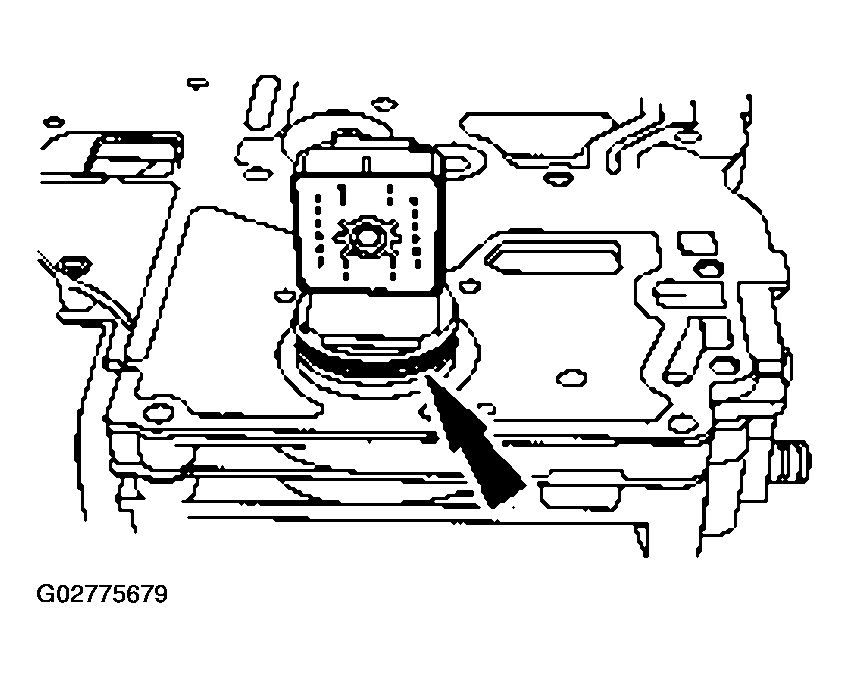

    Fig 2: Removing Bulkhead Connector O-Ring
    G02775679Courtesy of FORD MOTOR CO.
  4. Lift the tab twisting the bulkhead connector, and push it through the solenoid body, and remove the wire harness.
